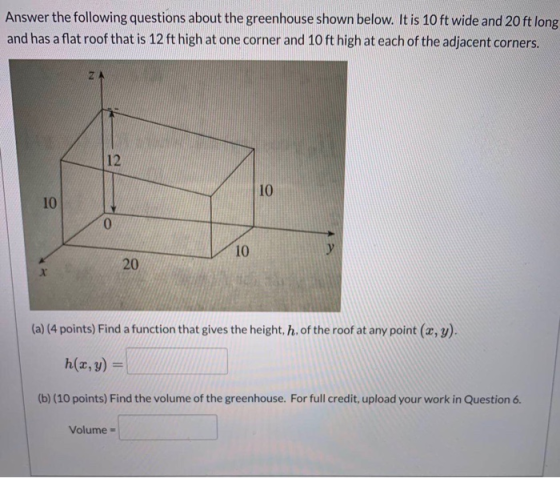

Answer the following questions about the greenhouse shown below. It is 10 ft wide and 20...

Question

Question

math calculus

Answer 1

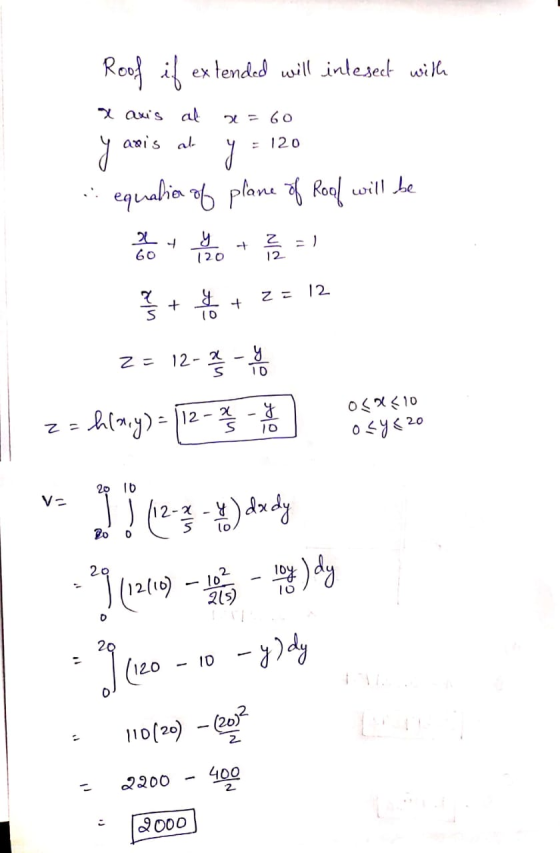

Answer #1

Answer 2
