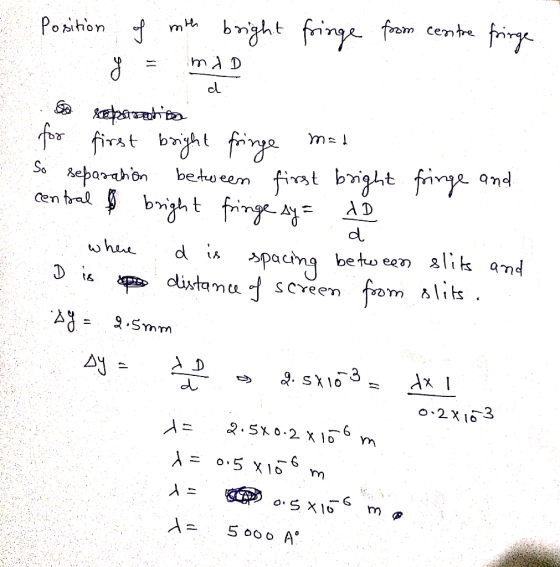

please show all work wavelength 450 nm? 8. Monochromatic light illuminates two parallel slits 0.2 mm...

Question

Question

please show all work

science Advanced-Physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Monochromatic light of wavelength 613 nm illuminates two parallel narrow slits 5.22 ?m apart. Calculate the...

Monochromatic light of wavelength 613 nm illuminates two parallel narrow slits 5.22 ?m apart. Calculate the angular deviation of the third-order (for m = 3) bright fringe (a) in radians and (b) in degrees.
Monochromatic light of wavelength 502 nm illuminates two parallel narrow slits 7.38 μm apart. Calculate the...

Monochromatic light of wavelength 502 nm illuminates two parallel narrow slits 7.38 μm apart. Calculate the angular deviation of the third-order (for m = 3) bright fringe (a) in radians and (b) in degrees
Monochromatic light of wavelength 590 nm illuminates two parallel narrow slits 7.13 μm apart. Calculate the...

Monochromatic light of wavelength 590 nm illuminates two parallel narrow slits 7.13 μm apart. Calculate the angular deviation of the third-order (for m = 3) bright fringe (a) in radians and (b) in degrees.

Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.50 mm. The...

Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.50 mm. The interference pattern is observed on a screen 75 cm from the slits. If the width of each slit is 0.10 mm, how far from the central bright fringe is the first missing fringe? a. 5.0 mm b. 10 mm c. 2.5 mm d. 7.5 mm
D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the...

PLEASE ANSWER 3 AND 5 SHOW ALL ALGEBRA STEPS D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the second order fringe at 0.15 angle. The interference pattern from the slits is projected onto a screen that is 3.00 m away (a) What is the wavelength of the light used (in nm)? (b) What is the separation distance (in mm) on the screen of the second bright fringe from the central bright fringe? (c)...
Two narrow, parallel slits separated by 0.850 mm are illuminated by 570-nm light, and the viewing...

Two narrow, parallel slits separated by 0.850 mm are illuminated by 570-nm light, and the viewing screen is 2.70 m away from the slits. (a) What is the phase difference between the two interfering waves on a screen at a point 2.50 mm from the central bright fringe? rad (b) What is the ratio of the intensity at this point to the intensity at the center of a bright fringe? I Imax

Two narrow slits are 0.12 mm apart. Light of wavelength 550 nm illuminates the slits, causing...

Two narrow slits are 0.12 mm apart. Light of wavelength 550 nm illuminates the slits, causing an interference pattern on a screen 1.0 m away. Light from each slit travels to the m=1 maximum on the right side of the central maximum. How much farther did the light from the left slit travel than the light from the right slit?
Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits...

Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits are separated by 7 mm, and the interference pattern is projected onto a screen 7 m away from the slits. The central bright fringe is at a certain spot on the screen. Using a ruler with one end placed at the central fringe, you move along the ruler passing by two more bright fringes and find that the next bright fringe is 21.5 mm...
Parallel rays of monochromatic light with wavelength 585 nm illuminate two identical slits

Parallel rays of monochromatic light with wavelength 585 nm illuminate two identical slits and produce an interference pattern on a screen that is 75.0 cm from the slits. The centers of the slits are 0.640 mm apart and the width of each slit is 0.434 mm. Part AIf the intensity at the center of the central maximum is 3.30*10-4 W/m2 , what is the intensity at a point on the screen that is 0.870 mm from the center of the central...

Parallel rays of monochromatic light with wavelength 586 nm illuminate two identical slits

Parallel rays of monochromatic light with wavelength 586 nm illuminate two identical slits and produce an interference pattern on a screen that is 750 em from the slits. The centers of the sits are 0.640 mm apart and the width of each slit is 0.434 mm.Part A If the intensity at the center of the central maximum is 5.00*10-4 W/m what is the intensity at a point on the screen that is 0.770 mm from the center of the central maximum?
