What is the linear density of a body centered cubic (BCC) unit cell along the cube...

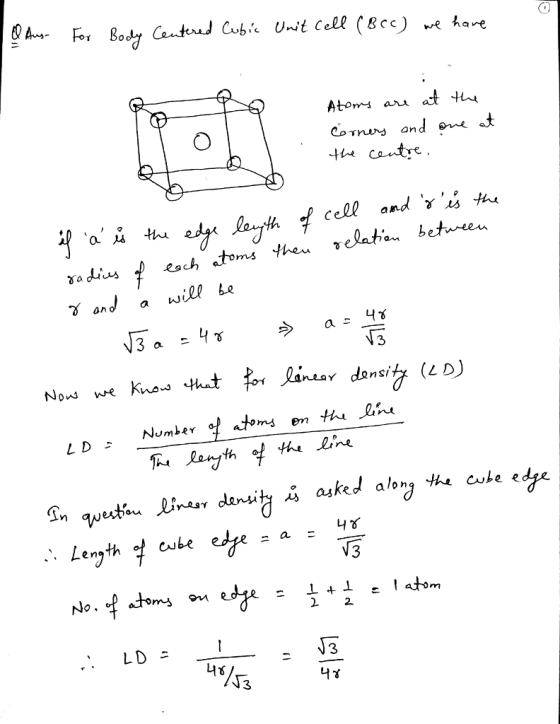

What is the linear density of a body centered cubic (BCC) unit cell along the cube edges?

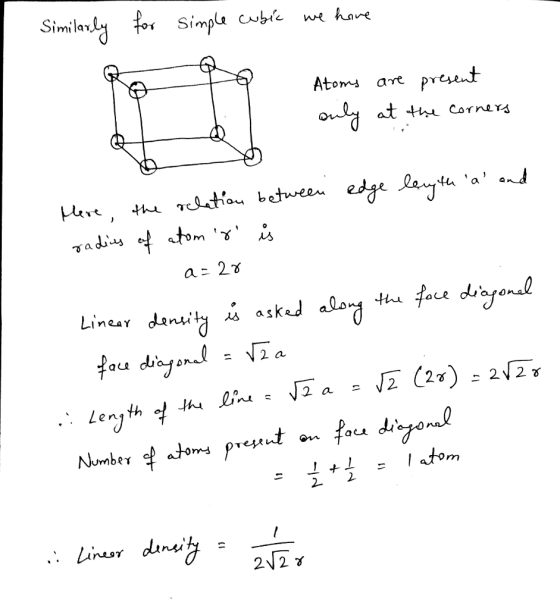

What is the linear density of a simple cubic (SC) unit cell along the face diagonals?

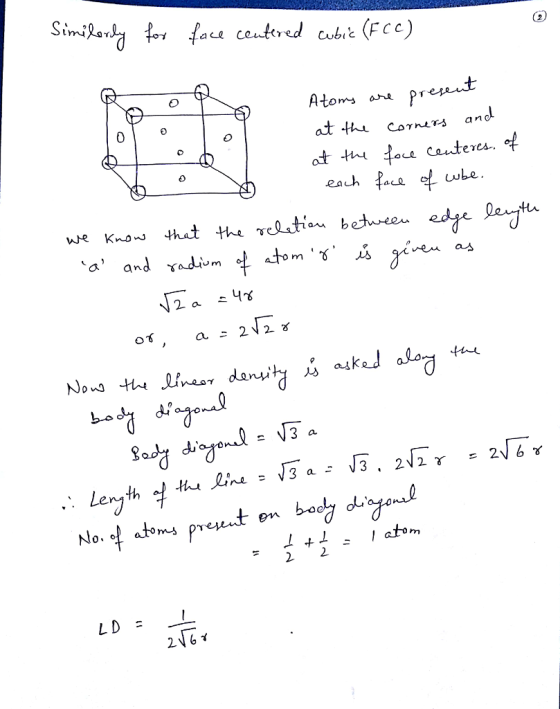

What is the linear density of a face centered cubic (FCC) unit cell along the body diagonal?
Homework Answers
Add Answer to:
What is the linear density of a body centered cubic (BCC) unit
cell along the cube...
