Homework Answers
Add Answer to:

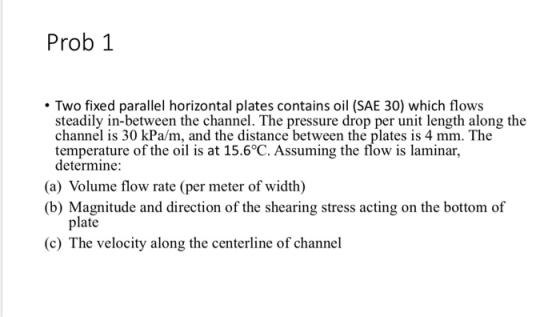

Prob 1 • Two fixed parallel horizontal plates contains oil (SAE 30) which flows steadily in-between...
SAE 30 oil ows between parallel plates 8 mm apart, a shows in the fire below....
SAE 30 oil ows between parallel plates 8 mm apart, a shows in the fire below. A mercury manometer, with wall preure tape 1 m apart, egisters a 6 cm height, as shown The velocity profile for plane Poiseuille Bow in given by y)- K1-4)whenseming the reference coordinate axes on the bottom plate SAE 10 oil 6 cm Mercury Calculate the oil's pressure drop per unit length between the pressure taps, in Pa/m Chat is the velacity profile, u(y), for...
Problem 1: Differential Relations for a Fluid Particle (25 points) Two horizontal, infinite, parallel plates are...
Problem 1: Differential Relations for a Fluid Particle (25 points) Two horizontal, infinite, parallel plates are spaced a distance b apart. A viscous liquid is contained between the plates. The bottom plate is fixed, and the upper plate moves parallel to the bottom plate with a velocity U. Assume no-slip boundary conditions. There is no pressure gradient in the direction of flow (a) Demonstrate using the Navier-Stokes equation in the x-direction that the velocity profile is of the form: (15...
Chapter 06, Problem 072 Two fixed, horizontal, parallel plates are spaced 0.5 in. apart. A viscous...
Chapter 06, Problem 072 Two fixed, horizontal, parallel plates are spaced 0.5 in. apart. A viscous liquid (H 8 x 103 lb s/ft2, SG = 0.9) flows between the plates with a mean velocity of 0.3 ft/s. The flow is laminar. (a) Determine the pressure drop per foot in the direction of flow. (b) What is the maximum velocity in the channel? b/ft3 (а) Др// %3D ft/s (b) Umax = Open Show Work Show Work is REQUIRED for this question:
P.2 Fluid flows steadily between two infinitely large plates separated by a distance of h, as...
P.2 Fluid flows steadily between two infinitely large plates separated by a distance of h, as shown below. Flow is driven by a pressure gradient in the x-direction, with the pressure decreasing from left to right. Both plates are held still. a) Find and plot the velocity profile between the plates, and b) determine the force per unit area (F/A) exerted by the fluid onto the plates (magnitude and direction). Hint: Find the magnitude of the shear stress at the...
help b) Laminar viscous flow between two parallel plates are shown in the figure below. Both...
help
b) Laminar viscous flow between two parallel plates are shown in the figure below. Both bottom plate and top plate moving in the same direction, their velocities are U6,U respectively and they are not equal to each other. Assume that pressure gradient between point A and point B is zero. By using Navier Stokes equations find the shear stress distribution and velocity profile for that fluiği. Plot both velocity profile and shear distribution. (Show assumptions that you make and...
please help?? b) Laminar viscous flow between two parallel plates are shown in the figure below....
please help??
b) Laminar viscous flow between two parallel plates are shown in the figure below. Both bottom plate and top plate moving in the same direction, their velocities are Un,Ut respectively and they are not equal to each other. Assume that pressure gradient between point A and point B is zero. By using Navier Stokes equations find the shear stress distribution and velocity profile for that fluid. Plot both velocity profile and shear distribution. (Show assumptions that you make...
Water at 20°C flows between 80-cm-wide horizontal parallel plates 12 mm apart such that a pressure...
Water at 20°C flows between 80-cm-wide horizontal parallel plates 12 mm apart such that a pressure drop of 100 Pa occurs over a distance of 2 m. If the top plate is moving at 1.8 m/s in the direction of the flow, the flow rate, in L/s
(a) A horizontal pipe of diameter 10 cm carries crude oil from A to C as...
(a) A horizontal pipe of diameter 10 cm carries crude oil from A
to C as shown in Figure 4. At a point B, midway between A and C,
oil leaks at a volume flow rate of QL . The pressure
drop per unit length along AB is 640 Pa/m and along BC is 600 Pa/m.
Determine the leakage flow rate QL . The density of oil
is 800 kg/m3 and its dynamic viscosity is 0.1 N.s/
m2 . You...
2- (40 pts) Using Navier-Stokes equations, in class we developed the velocity profile between two stationary...
2- (40 pts) Using Navier-Stokes equations, in class we developed the velocity profile between two stationary infinite parallel plates for a laminar, fully developed, steady flow. Here is the exact same flow: u(y) = 2 ( 0) (02 – hy) v= 0 a) Find the expression for average velocity for such flow. b) Use the average velocity you calculated in (a) to find the expression for volume flow rate per unit width into the page. c) If at x=105 m...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
SAE 30 oil ows between parallel plates 8 mm apart, a shows in the fire below. A mercury manometer, with wall preure tape 1 m apart, egisters a 6 cm height, as shown The velocity profile for plane Poiseuille Bow in given by y)- K1-4)whenseming the reference coordinate axes on the bottom plate SAE 10 oil 6 cm Mercury Calculate the oil's pressure drop per unit length between the pressure taps, in Pa/m Chat is the velacity profile, u(y), for...
Problem 1: Differential Relations for a Fluid Particle (25 points) Two horizontal, infinite, parallel plates are spaced a distance b apart. A viscous liquid is contained between the plates. The bottom plate is fixed, and the upper plate moves parallel to the bottom plate with a velocity U. Assume no-slip boundary conditions. There is no pressure gradient in the direction of flow (a) Demonstrate using the Navier-Stokes equation in the x-direction that the velocity profile is of the form: (15...
Chapter 06, Problem 072 Two fixed, horizontal, parallel plates are spaced 0.5 in. apart. A viscous liquid (H 8 x 103 lb s/ft2, SG = 0.9) flows between the plates with a mean velocity of 0.3 ft/s. The flow is laminar. (a) Determine the pressure drop per foot in the direction of flow. (b) What is the maximum velocity in the channel? b/ft3 (а) Др// %3D ft/s (b) Umax = Open Show Work Show Work is REQUIRED for this question:
P.2 Fluid flows steadily between two infinitely large plates separated by a distance of h, as shown below. Flow is driven by a pressure gradient in the x-direction, with the pressure decreasing from left to right. Both plates are held still. a) Find and plot the velocity profile between the plates, and b) determine the force per unit area (F/A) exerted by the fluid onto the plates (magnitude and direction). Hint: Find the magnitude of the shear stress at the...
help
b) Laminar viscous flow between two parallel plates are shown in the figure below. Both bottom plate and top plate moving in the same direction, their velocities are U6,U respectively and they are not equal to each other. Assume that pressure gradient between point A and point B is zero. By using Navier Stokes equations find the shear stress distribution and velocity profile for that fluiği. Plot both velocity profile and shear distribution. (Show assumptions that you make and...
please help??
b) Laminar viscous flow between two parallel plates are shown in the figure below. Both bottom plate and top plate moving in the same direction, their velocities are Un,Ut respectively and they are not equal to each other. Assume that pressure gradient between point A and point B is zero. By using Navier Stokes equations find the shear stress distribution and velocity profile for that fluid. Plot both velocity profile and shear distribution. (Show assumptions that you make...
(a) A horizontal pipe of diameter 10 cm carries crude oil from A
to C as shown in Figure 4. At a point B, midway between A and C,
oil leaks at a volume flow rate of QL . The pressure
drop per unit length along AB is 640 Pa/m and along BC is 600 Pa/m.
Determine the leakage flow rate QL . The density of oil
is 800 kg/m3 and its dynamic viscosity is 0.1 N.s/
m2 . You...
2- (40 pts) Using Navier-Stokes equations, in class we developed the velocity profile between two stationary infinite parallel plates for a laminar, fully developed, steady flow. Here is the exact same flow: u(y) = 2 ( 0) (02 – hy) v= 0 a) Find the expression for average velocity for such flow. b) Use the average velocity you calculated in (a) to find the expression for volume flow rate per unit width into the page. c) If at x=105 m...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
