A gymnastic beam can be modeled with a 10 cm x 40 cm cross-section and 6...

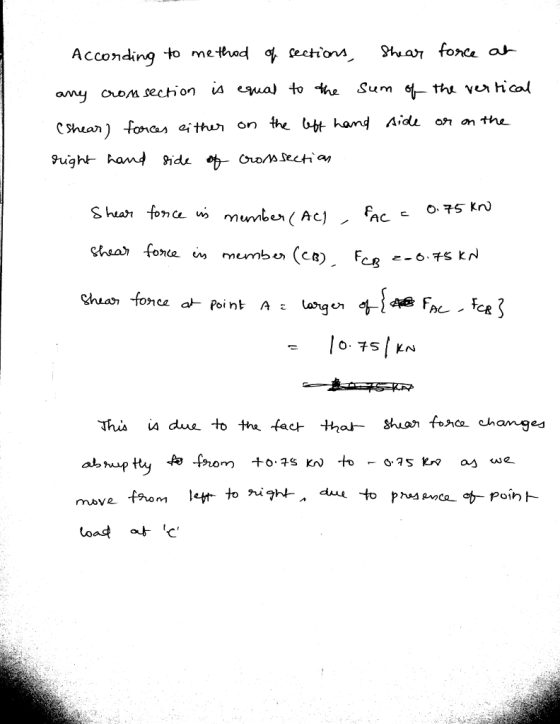

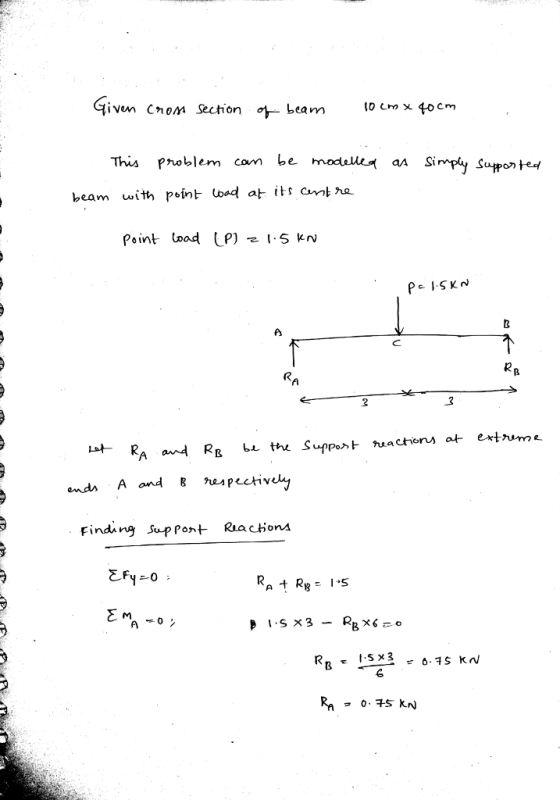

A gymnastic beam can be modeled with a 10 cm x 40 cm cross-section and 6 m between its supports. A gymnast lands at the center of this beam with a 1.5 kN force. What is the shear force directly below the force of the gymnast?
Homework Answers
