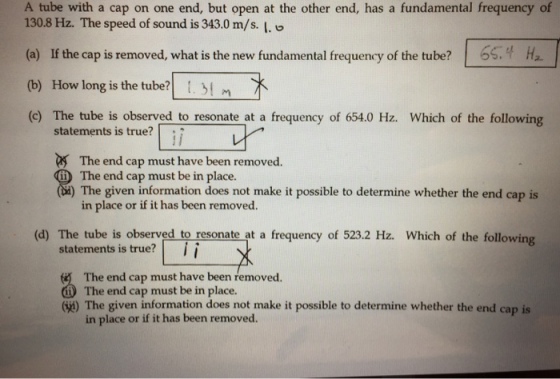

A tube with a cap on one end, but open at the other end, has a...

Question

Question

science physics

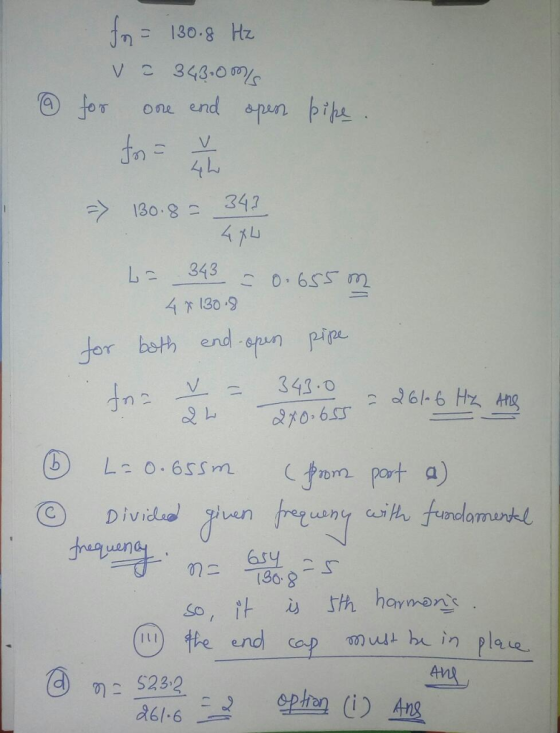

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

A tube with a cap on one end, but open at the other end, has a...

A tube with a cap on one end, but open at the other end, has a fundamental frequency of 132.7 Hz. The speed of sound is 343 m/s. (a) If the cap is removed, what is the new fundamental frequency of the tube? (b) How long is the tube?
A tuba may be treated like a tube closed at one end. If a tuba has...

A tuba may be treated like a tube closed at one end. If a tuba has a fundamental frequency of 90.9 Hz, determine the first three overtones. Use 343 m/s as the speed of sound in air. first overtone How is the length of a tube closed at one end related to the resonant wavelengths that can be established in the tube? How are the frequency, wavelength, and speed of sound related? How are the harmonics related to the...
Two tubes of gas are identical and are open only at one end. One tube contains...

Two tubes of gas are identical and are open only at one end. One tube contains neon (Ne) and the other krypton (Kr). Both are monatomic gases, have the same temperature, and may be assumed to be ideal gases. The fundamental frequency of the tube containing neon is 485 Hz. What is the fundamental frequency of the tube containing krypton? The atomic masses are given by 20.180 u for neon, and 83.80 u for krypton

Two tubes of gas are identical and are open only at one end. One tube contains...

Two tubes of gas are identical and are open only at one end. One tube contains neon (Ne) and the other krypton (Kr). Both are monatomic gases, have the same temperature, and may be assumed to be ideal gases. The fundamental frequency of the tube containing neon is 485 Hz. What is the fundamental frequency of the tube containing krypton? The atomic masses are given by 20.180 u for neon, and 83.80 u for krypton
Two tubes of gas are identical and are open only at one end. One tube contains...

Two tubes of gas are identical and are open only at one end. One tube contains neon (Ne) and the other krypton (Kr). Both are monatomic gases, have the same temperature, and may be assumed to be ideal gases. The fundamental frequency of the tube containing neon is 475 Hz. What is the fundamental frequency of the tube containing krypton? The atomic masses are given by 20.180 u for neon, and 83.80 u for krypton.
A tube, open at the left end and closed at the right, has standing-wave patterns at...

A tube, open at the left end and closed at the right, has standing-wave patterns at frequencies of 198 Hz and 330 Hz. The speed of sound in air is 343 m/s. The lowest two harmonics (normal modes) that these two standing waves could be are m = and The frequency of the fundamental (m = 1) is Hz. The wavelength of the fundamental mode is m. The tube is m long

Find the length of an air filled tube closed on one end and open on the...

Find the length of an air filled tube closed on one end and open on the other if its fundamental frequency is 240 Hz
(numbers 1-2) When two closed tubes (closed at one end) of different lengths each resonate at...

(numbers 1-2) When two closed tubes (closed at one end) of different lengths each resonate at their 5th harmonic, a 5 Hz beat frequency is observed. 1. If one tube has length L, at which distance from the open end is a pressure node found? a) L/5 b) 2L/5 c) 3L/5 d) L e) none of the above answers are correct B is the correct answer 2. Both tubes are now opened at both ends. When each tube now resonates...
A tube open at one end produces a standing wave with a fundamental frequency of 625...

A tube open at one end produces a standing wave with a fundamental frequency of 625 Hz when the temperature is -10.0 °C, what is the length of the tube, in meters? b) If we wanted to produce a standing wave with the same fundamental frequency in a string with a length of 1.30 m and a mass of 4.00 g, what would be the tension in the string, in Newtons? a)_____ m b) _____ N

A tuba may be treated like a tube closed at one end. If a tuba has...

A tuba may be treated like a tube closed at one end. If a tuba has a fundamental frequency of 39.9 Hz, determine the first three overtones. Use 343 m/s as the speed of sound in air. Also, sketch a representation of the overtone described in parts a, b, and c. first overtone: Hz second overtone : Hz third overtone: Hz
