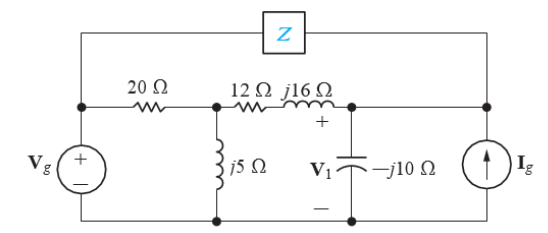

Find the value of Z in the circuit seen in Figure below if Vg = 100 - j50 V, Ig = 30 + j20 A, and V1 = 140 + j30 V.

Question

Question

Electrical-Engineering Impedance

Answer 1

Similar Homework Help Questions

Find the steady-state expressions for the current ig and iL in the circuit in Figure below when vg = 168 cos 800t V.

Find the steady-state expressions for the current ig and iL in the circuit in Figure below when vg = 168 cos 800t V.b) Find the coefficient of coupling.
Problem 9.35 Review | Cor Part A Find the value of Z in the circuit seen...

Problem 9.35 Review | Cor Part A Find the value of Z in the circuit seen in the figure if V = 119-40i V. In = 33+191 A and V = 144+28i V (Figure 1) Express your answer in complex form. VO AED 1 vec Submit Request Answer < Return to Assignment Provide Feedback Figure 1 of 1 > 2012 12 12 16 22 V -100
The circuit shown below has the impedance Z(s) = 800(s +1) (s+ 1 +j50) (s +1...

The circuit shown below has the impedance Z(s) = 800(s +1) (s+ 1 +j50) (s +1 -j50) , S = - jo. R с L Z(s) References eBook & Resources Section Break Difficulty: Medium value: 10.00 points Find the values of R, L, C, and G. The value of R in the circuit is 12. The value of L in the circuit is H. The value of C in the circuit is mF. The value of G in the circuit...

Let v,(t) = 140 sin(5000+) V in the circuit Find the steady-state value of the current...

Let v,(t) = 140 sin(5000+) V in the circuit Find the steady-state value of the current ij(t) in amperes at t = 6.32 milisecor Round the result to three decimal places. 1012 2 mH vg 2 mH 8 mH 30 Ω w Select one: a. 0.366 Ob. 1.966 O c.0.372 d. -1.966 e. -0,366
PROBLEM 1: For the ideal buck-boost converter shown below: ig(t) Vg(t) (a) Draw equivalent steady-state circuit....

PROBLEM 1: For the ideal buck-boost converter shown below: ig(t) Vg(t) (a) Draw equivalent steady-state circuit. (b) From the equivalent steady-state circuit, find the expressions for the steady-state values of L, 4, and Po as a function of ,, D, and the circuit parameters. (c) Draw equivalent average circuit. di (d) From the equivalent average circuit, derive differential equations describing L and dt as a function of V^(i),d(t),V.),i(C), and circuit parameters dt
In the circuit below V1=(100∠0∘) V and V2=(100∠90∘) V. Find the complex power absorbed by: (a)...

In the circuit below V1=(100∠0∘) V and V2=(100∠90∘) V. Find the complex power absorbed by: (a) V1 (b) V2 (c) 6Ω (d) j4Ω (e) −j10Ω (f) 5Ω (a) SV1 = +j VA (b) SV2 = +j VA (c) S6Ω = +j VA (c) Sj4Ω = +j VA (d) S−j10Ω = +j VA (e) S5Ω = +j VA Please do not round. Thanks in advance. 5Ω 6Ω V2 V1 -j1OQ

Use the node voltage method to find the steady-state expression for io in the circuit seen...

Use the node voltage method to find the steady-state expression for io in the circuit seen in (Figure 1) if ig 4 cos 2500t A and v, 16 cos(2500t + 90° ) V Write the steady-state expression for io(t) as to = L cos(wt + φ), where-180° <φ < 180° Figure く 1of1 100 μF 50 uF 12Ω View "31.6 mH 30
Given the Circuit below: V1 R1 100 V 30 Ω V2 R2 lIh 200 V 20...

Given the Circuit below: V1 R1 100 V 30 Ω V2 R2 lIh 200 V 20 Ω R3 50Ω Calculate the Currents ( Ii, b, I5) through each Resistor
NAME: 6) Find V1 and V2 for the circuit below. (30 Points) t: J2a2 V 2...

NAME: 6) Find V1 and V2 for the circuit below. (30 Points) t: J2a2 V 2 -JS2 -)232 SIS2

Q4: For the circuit shown in figure below, find the value of impedance Z that will...

Q4: For the circuit shown in figure below, find the value of impedance Z that will receive maximum power, and determine this power. (15Marks) 85 22 -j10022 170 20° V 200000 j2002 50 22
