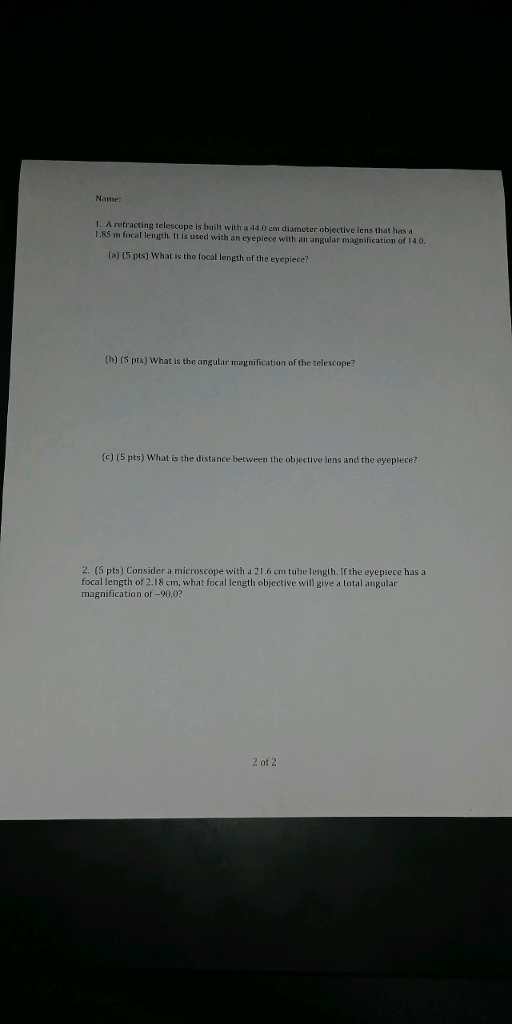

Name 1. A refracting telescope is built with a 44.0 cm diameter objective lens that has a 1.85 m focal length It is used with an eyepiece with an angular magnification of 14.0. (a) (5 pts) What is the local length of the eyepiece? (b) (5 pts) what is the angular magnification of the telescope? (c) (5 pts) What is the distance between the objective lens and the eyeplece? 2. (5 pts) Consider a microscope with a 21.6 em tube length. If the eyepiece has a focal length of 2.18 cm, what focal length objective will give a total angular magnification of-90.0? 2 of 2

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

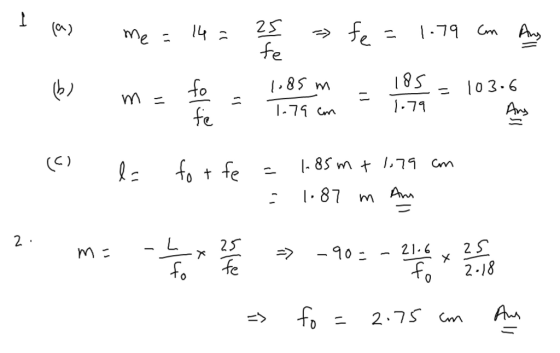

Answer #1

0 0
Add a comment
