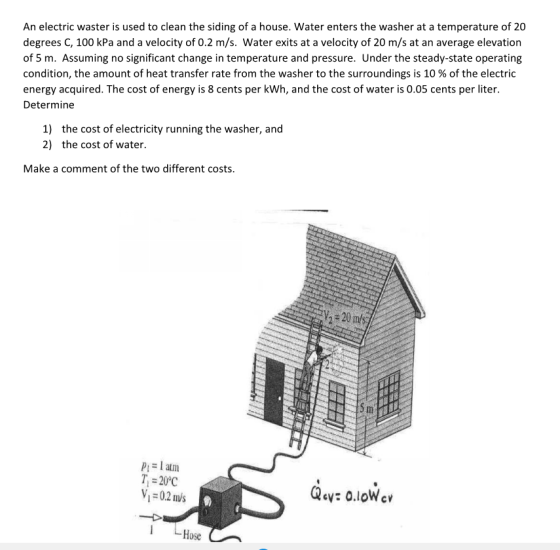

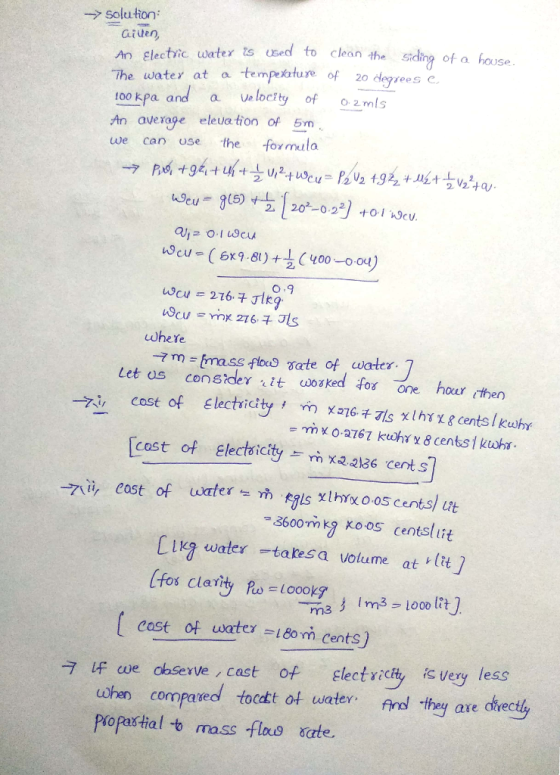

An electric waster is used to clean the siding of a house. Water enters the washer...
A) Steam enters a horizontal pipe operating at steady state with a specific enthalpy of 2,663 kJ/...
A) Steam enters a horizontal pipe operating at steady state with a specific enthalpy of 2,663 kJ/kg and a mass flow rate of 0.1 kg/s. At the exit, the specific enthalpy is 1,531 kJ/kg. If there is no significant change in kinetic energy from inlet to exit, determine the rate of heat transfer between the pipe and its surroundings, in kW. B) Refrigerant 134a enters a horizontal pipe operating at steady state at 40°C, 3.1 bar and a velocity of...
An electric water heater holds 202 L. If electricity costs 0.13 $ per kWh, how much...
An electric water heater holds 202 L. If electricity costs 0.13 $ per kWh, how much does it cost to raise the water temperature from 20 ∘C to 90 ∘C?
Problem 6.123 As shown in the figure below, water behind a dam enters an intake pipe...
Problem 6.123 As shown in the figure below, water behind a dam enters an intake pipe at a pressure of 24 psia and velocity of 5 ft/s, flows through a hydraulic turbine-generator, and exits at a point 21 = 140ft below the intake at 19 psia, 45 ft/s, and a specific volume of 0.01602 ft/lb. The diameter of the exit pipe is 5 ft and the local acceleration of gravity is 32.2 ft/s2. Water Dam P1 = 24 psia Vi...
A 50-gallon electric water heater is used to heat tap water with an initial temperature of...
A 50-gallon electric water heater is used to heat tap water with an initial temperature of 15oC. The heating level is set at a maximum while several people are taking their showers. If the maximum heating level of the heater is 7.5kW of electricity and the water use rate is 3 gal/min, what is the temperature of the water exiting the heater? Assume that the system is at steady state and the heater is 100% efficient; that is it is...
25 pts Household Energy Consumption and Electric Bill How Energy Is Used in Homes (2009) In...
25 pts Household Energy Consumption and Electric Bill How Energy Is Used in Homes (2009) In 2009-2017, the average annual electricity consumption for a U.S. residential utility customer was 10.766 kilowatthours (kWh), an average of 897 kWh per month Req. For the month of June (30 days with 24hr/day) Determine i) the total hours i) Kilowatts/month of June. il) Electric bill based on a charge of $0.085/kwh(-0.079kwh electricity +0.06 transmission). $ iv) Assuming the home has an electric water heater,...
5, (25 points) A Carnot heat pump is used to maintain a house at 20 °C...
5, (25 points) A Carnot heat pump is used to maintain a house at 20 °C in winter and consumes 8 kW of power (electricity) when operating. On a day temperature outside the house is -3 °C, the house is estimated to lose heat at an average rate of 80,000 kJ/h. (Sa). (2p) Please identify the hot reservoir and the cool reservoir of this heat pump. (5b). (2p) Please draw of schematic diagram of this heat pump-house heating system with...
QUESTIONS 1. Refrigerant-134a is cooled by water in a condenser. The refrigerant enters the condenser at...
QUESTIONS 1. Refrigerant-134a is cooled by water in a condenser. The refrigerant enters the condenser at a pressure of 1 MPa and a temperature of 70°C at a flow rate of 6 kg / min and exits at a temperature of 35 °C. Cooling water enters the condenser at 300 kPa pressure and 15 °C temperature and exits at 25 °C temperature. By neglecting pressure losses, Calculate; a) mass flow of cooling water b) the heat transfer from the refrigerant...
THERMO Question 1 A pump steadily delivers 13.7 kg/s of water at the conditions given below....
THERMO Question 1 A pump steadily delivers 13.7 kg/s of water at the conditions given below. Calculate the pump power (hp). There is no heat transfer from the pump to the surroundings (i.e., adiabatic conditions). Pump Inlet Temperature = 20oC Pump Inlet Pressure = 170 kPa Pump Inlet Diameter = 11.4 cm Pump Inlet Elevation = 20 m Pump Exit Temperature = 20oC Pump Exit Pressure = 581 kPa Pump Exit Diameter = 5 cm Pump Exit Elevation = 20...
Heat transfer 1 Normal 1 No Spac.. Heading 1 Heading2 Title Subt Paragraph Styles Heat Transfer...
Heat transfer
1 Normal 1 No Spac.. Heading 1 Heading2 Title Subt Paragraph Styles Heat Transfer - Assignment 1 An ideal gas is heated from 50 C to 80 C, (a) at constant volume and (b) at constant pressure. For which case do you think the energy required will be greater? Why? 1. 2. Consider a house with a floor space of 200 m2 and an average height of 3 m at sea level essure is 101.3 kPa. Initially the...
Exercise 10 Consider a 2-m-high electric hot water heater that has a diameter of 40 cm...
Exercise 10 Consider a 2-m-high electric hot water heater that has a diameter of 40 cm and maintains the hot water at 55°C. The tank is located in a small room whose average temperature is 27°C, and the heat transfer coefficients on the inner and outer surfaces of the heater are 50 and 12 W/m2.°C, respectively. The tank is placed in another 46-cm-diameter sheet metal tank of negligible thickness, and the space between the two tanks is filled with foam...
Problem 6.123 As shown in the figure below, water behind a dam enters an intake pipe at a pressure of 24 psia and velocity of 5 ft/s, flows through a hydraulic turbine-generator, and exits at a point 21 = 140ft below the intake at 19 psia, 45 ft/s, and a specific volume of 0.01602 ft/lb. The diameter of the exit pipe is 5 ft and the local acceleration of gravity is 32.2 ft/s2. Water Dam P1 = 24 psia Vi...
25 pts Household Energy Consumption and Electric Bill How Energy Is Used in Homes (2009) In 2009-2017, the average annual electricity consumption for a U.S. residential utility customer was 10.766 kilowatthours (kWh), an average of 897 kWh per month Req. For the month of June (30 days with 24hr/day) Determine i) the total hours i) Kilowatts/month of June. il) Electric bill based on a charge of $0.085/kwh(-0.079kwh electricity +0.06 transmission). $ iv) Assuming the home has an electric water heater,...
5, (25 points) A Carnot heat pump is used to maintain a house at 20 °C in winter and consumes 8 kW of power (electricity) when operating. On a day temperature outside the house is -3 °C, the house is estimated to lose heat at an average rate of 80,000 kJ/h. (Sa). (2p) Please identify the hot reservoir and the cool reservoir of this heat pump. (5b). (2p) Please draw of schematic diagram of this heat pump-house heating system with...
QUESTIONS 1. Refrigerant-134a is cooled by water in a condenser. The refrigerant enters the condenser at a pressure of 1 MPa and a temperature of 70°C at a flow rate of 6 kg / min and exits at a temperature of 35 °C. Cooling water enters the condenser at 300 kPa pressure and 15 °C temperature and exits at 25 °C temperature. By neglecting pressure losses, Calculate; a) mass flow of cooling water b) the heat transfer from the refrigerant...
Heat transfer
1 Normal 1 No Spac.. Heading 1 Heading2 Title Subt Paragraph Styles Heat Transfer - Assignment 1 An ideal gas is heated from 50 C to 80 C, (a) at constant volume and (b) at constant pressure. For which case do you think the energy required will be greater? Why? 1. 2. Consider a house with a floor space of 200 m2 and an average height of 3 m at sea level essure is 101.3 kPa. Initially the...
Exercise 10 Consider a 2-m-high electric hot water heater that has a diameter of 40 cm and maintains the hot water at 55°C. The tank is located in a small room whose average temperature is 27°C, and the heat transfer coefficients on the inner and outer surfaces of the heater are 50 and 12 W/m2.°C, respectively. The tank is placed in another 46-cm-diameter sheet metal tank of negligible thickness, and the space between the two tanks is filled with foam...
