Homework Answers
Add Answer to:

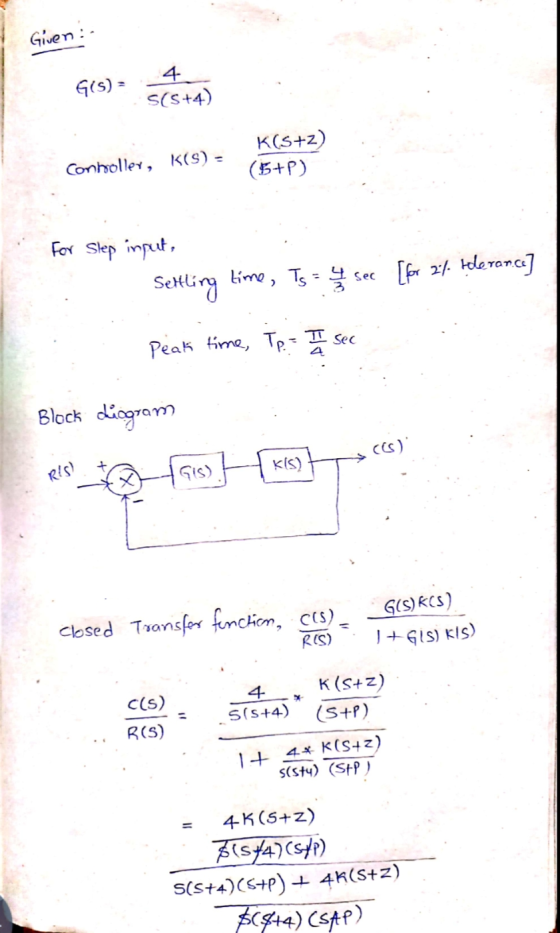

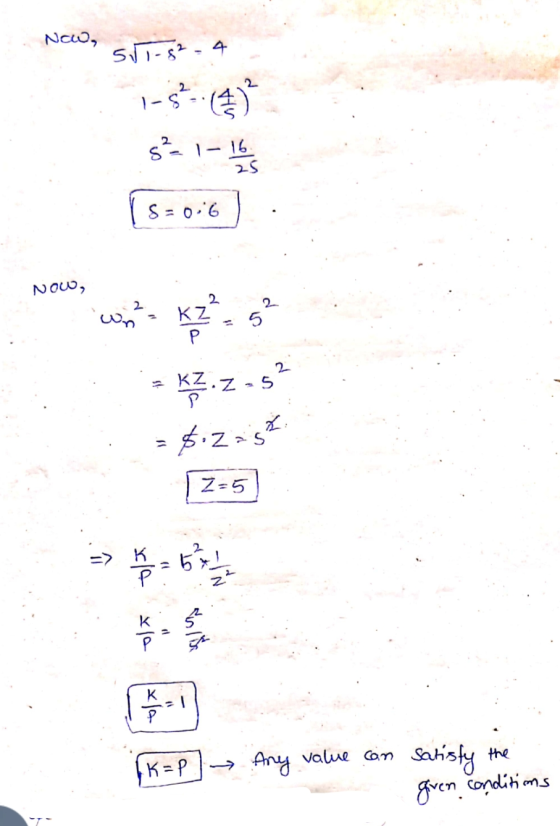

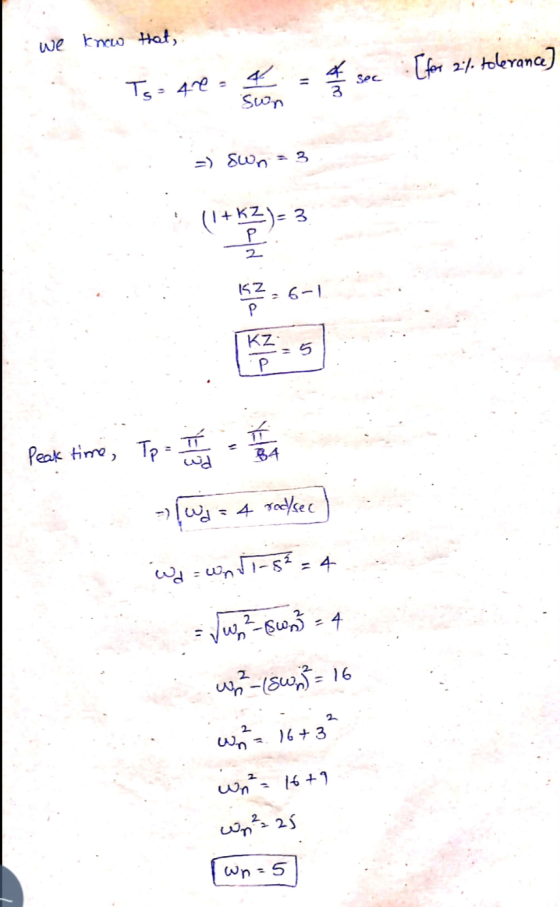

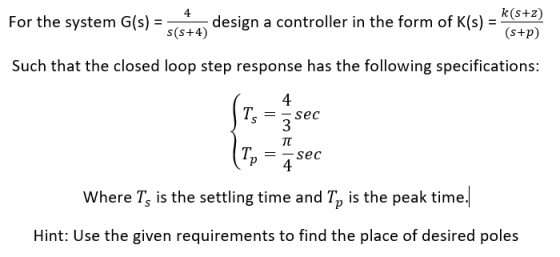

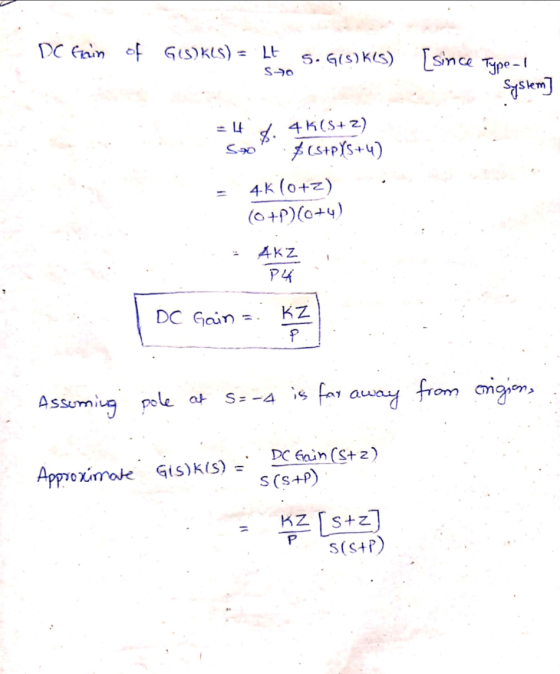

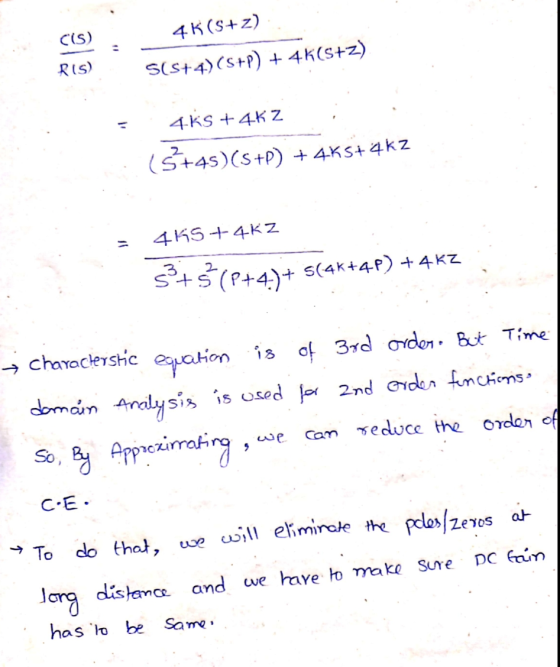

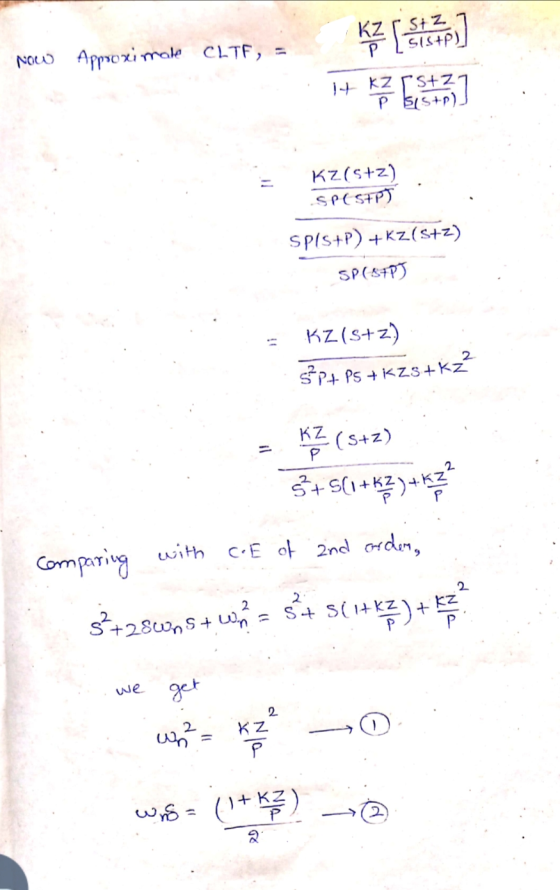

4 k(s+2) For the system (s) = design a controller in the form of K(s) =...
Consider a unity-feedback control system with a PI controller Gpr(s) and a plant G(s) in cascade. In particular, the plant transfer function is given as 2. G(s) = s+4, and the PI controller trans...
Consider a unity-feedback control system with a PI controller Gpr(s) and a plant G(s) in cascade. In particular, the plant transfer function is given as 2. G(s) = s+4, and the PI controller transfer function is of the forrm KI p and Ki are the proportional and integral controller gains, respectively where K Design numerical values for Kp and Ki such that the closed-loop control system has a step- response settling time T, 0.5 seconds with a damping ratio of...
Consider a unity feedback control architecture where P(s) = 1/s^2 and C(s) = K * ((s + z)/(s + p)...
Consider a unity feedback control architecture where P(s) =
1/s^2 and C(s) = K * ((s + z)/(s + p)) . It is desired to design
the controller to place the dominant closed-loop poles at sd = −2 ±
2j. Fix the pole of the compensator at −20 rad/sec and use root
locus techniques to find values of z and K to place the closed–loop
poles at sd .
Problem 4 (placing a zero) Consider a unity feedback control architecture...
Consider the same plant G(s) Design a controller so that if you desire an angle of...
Consider the same plant G(s) Design a controller so that if you desire an angle of r 1 rad, s(s+10) (s+20) (R the actual angle of the motor y(t) has an overshoot less than or equal to 20% and a settling time less than or equal to 0.3s as it is settling down to the steady state angle. Write down the steps you followed in the sisotool (or otherwise), include: i. ii. iii. iv. Your error calculations and calculations for...
I have no more posting for this month, please solve these for me thanks 1. Given...
I have no more posting for this month, please solve these for me
thanks
1. Given the following unity feedback system where s+z s2 (s + 10) and the controller is a proportional controller Ge = K, do the following: a. If z = 2, find K so that the damped frequency of the oscillation of the transient response is 5 rad/s. b. The system is to be redesigned by changing the values of z and K. If the new...
The following (original) system operates with a gain K -10. Design a PD controller in the...
The following (original) system operates with a gain K -10. Design a PD controller in the fornm of K(s +zc) so that the closed-loop compensated system achieves a two-fold reduction in the settling time while maintaining approximately the same %os. K(s +6) Steps: 1) Study the original system and find the dominant pole(s) of the original system. 2) Determine the desired pole locations for the (new) PD-compensated system: 3) Perform PD Controller Design: a) Compute the angle contributed by the...
1. Consider the following feedback control system Controller Process 1 G(s) R(s) Y(s) $2+5s+6 Below are...
1. Consider the following feedback control system Controller Process 1 G(s) R(s) Y(s) $2+5s+6 Below are two potential controllers for this system: 1) Ge(s) K (Proportional controller) 2) Ge(s) K(1 1/s) (Proportional-integral controller) The design specifications are t 3.2s and P. 0. 10% for a unit step input (a) Determine the area on the S-plane where the dominant closed loop poles must be located such that the design requirements are satisfied. (b) Sketch the root locus with each of the...
Consider the following system: -1-2-21 гг 1 0 1 L Where u is the system input and y is the measur...
control system with observer
Consider the following system: -1-2-21 гг 1 0 1 L Where u is the system input and y is the measured output. 1. Find the transfer function of the system. 2. Design a state feedback controller with a full-state observer such that the step response of the closed loop system is second order dominant with an overshoot Mp settling time ts s 5 sec. Represent the observer-based control system in a compact state space form. 10%...
on Matlab please!!!! Problem 1- (a) Design a controller for a plant with transfer function, G(s)-(+ to obtain (i) estep(00)s 0, (ii) T12%) < 1 s, and (iii) an-5 rad/s (4 points). (b) Plot the u...
on Matlab please!!!!
Problem 1- (a) Design a controller for a plant with transfer function, G(s)-(+ to obtain (i) estep(00)s 0, (ii) T12%) < 1 s, and (iii) an-5 rad/s (4 points). (b) Plot the unit step response of the closed-loop system you design and find the percentage of overshoot, the time to the first peak, settling time and eramp[oo) (4 points). (c) Can you modify your design, without compromising design specifications, in order to further shorten T1296) while keeping...
Q.4 A position control system is shown in Figure Q4. Assume that K(s) = K, the plant 50 s(0.2s +1) transfer function is given by G(s) s02s y(t) r(t) Figure Q4: Feedback control system. (a) Design a l...
Q.4 A position control system is shown in Figure Q4. Assume that K(s) = K, the plant 50 s(0.2s +1) transfer function is given by G(s) s02s y(t) r(t) Figure Q4: Feedback control system. (a) Design a lead compensator so that the closed-loop system satisfies the following specifications (i) The steady-state error to a unit-ramp input is less than 1/200 (ii) The unit-step response has an overshoot of less than 16% Ts +1 Hint: Compensator, Dc(s)=aTs+ 1, wm-T (18 marks)...
PROBLEM 4 Suppose that a system is shown in Figure 4. There are three controllers that might be incorporated into this system. 1. Ge (s)-K (proportional (P) controller) 2. GS)K/s (integral (I) contro...
PROBLEM 4 Suppose that a system is shown in Figure 4. There are three controllers that might be incorporated into this system. 1. Ge (s)-K (proportional (P) controller) 2. GS)K/s (integral (I) controller) 3. G (s)K(1+1/s) (proportional, integral (PI) controller) The system requirements are T, < 10 seconds and P0 10% for a unit step response. (a) For the (P) controller, write a piece of MATLAB code to plot root locus for 0<K<,and find the K value so that the...
Consider a unity-feedback control system with a PI controller Gpr(s) and a plant G(s) in cascade. In particular, the plant transfer function is given as 2. G(s) = s+4, and the PI controller transfer function is of the forrm KI p and Ki are the proportional and integral controller gains, respectively where K Design numerical values for Kp and Ki such that the closed-loop control system has a step- response settling time T, 0.5 seconds with a damping ratio of...
Consider a unity feedback control architecture where P(s) =
1/s^2 and C(s) = K * ((s + z)/(s + p)) . It is desired to design
the controller to place the dominant closed-loop poles at sd = −2 ±
2j. Fix the pole of the compensator at −20 rad/sec and use root
locus techniques to find values of z and K to place the closed–loop
poles at sd .
Problem 4 (placing a zero) Consider a unity feedback control architecture...
Consider the same plant G(s) Design a controller so that if you desire an angle of r 1 rad, s(s+10) (s+20) (R the actual angle of the motor y(t) has an overshoot less than or equal to 20% and a settling time less than or equal to 0.3s as it is settling down to the steady state angle. Write down the steps you followed in the sisotool (or otherwise), include: i. ii. iii. iv. Your error calculations and calculations for...
I have no more posting for this month, please solve these for me
thanks
1. Given the following unity feedback system where s+z s2 (s + 10) and the controller is a proportional controller Ge = K, do the following: a. If z = 2, find K so that the damped frequency of the oscillation of the transient response is 5 rad/s. b. The system is to be redesigned by changing the values of z and K. If the new...
The following (original) system operates with a gain K -10. Design a PD controller in the fornm of K(s +zc) so that the closed-loop compensated system achieves a two-fold reduction in the settling time while maintaining approximately the same %os. K(s +6) Steps: 1) Study the original system and find the dominant pole(s) of the original system. 2) Determine the desired pole locations for the (new) PD-compensated system: 3) Perform PD Controller Design: a) Compute the angle contributed by the...
1. Consider the following feedback control system Controller Process 1 G(s) R(s) Y(s) $2+5s+6 Below are two potential controllers for this system: 1) Ge(s) K (Proportional controller) 2) Ge(s) K(1 1/s) (Proportional-integral controller) The design specifications are t 3.2s and P. 0. 10% for a unit step input (a) Determine the area on the S-plane where the dominant closed loop poles must be located such that the design requirements are satisfied. (b) Sketch the root locus with each of the...
control system with observer
Consider the following system: -1-2-21 гг 1 0 1 L Where u is the system input and y is the measured output. 1. Find the transfer function of the system. 2. Design a state feedback controller with a full-state observer such that the step response of the closed loop system is second order dominant with an overshoot Mp settling time ts s 5 sec. Represent the observer-based control system in a compact state space form. 10%...
on Matlab please!!!!
Problem 1- (a) Design a controller for a plant with transfer function, G(s)-(+ to obtain (i) estep(00)s 0, (ii) T12%) < 1 s, and (iii) an-5 rad/s (4 points). (b) Plot the unit step response of the closed-loop system you design and find the percentage of overshoot, the time to the first peak, settling time and eramp[oo) (4 points). (c) Can you modify your design, without compromising design specifications, in order to further shorten T1296) while keeping...
Q.4 A position control system is shown in Figure Q4. Assume that K(s) = K, the plant 50 s(0.2s +1) transfer function is given by G(s) s02s y(t) r(t) Figure Q4: Feedback control system. (a) Design a lead compensator so that the closed-loop system satisfies the following specifications (i) The steady-state error to a unit-ramp input is less than 1/200 (ii) The unit-step response has an overshoot of less than 16% Ts +1 Hint: Compensator, Dc(s)=aTs+ 1, wm-T (18 marks)...
PROBLEM 4 Suppose that a system is shown in Figure 4. There are three controllers that might be incorporated into this system. 1. Ge (s)-K (proportional (P) controller) 2. GS)K/s (integral (I) controller) 3. G (s)K(1+1/s) (proportional, integral (PI) controller) The system requirements are T, < 10 seconds and P0 10% for a unit step response. (a) For the (P) controller, write a piece of MATLAB code to plot root locus for 0<K<,and find the K value so that the...
