Question

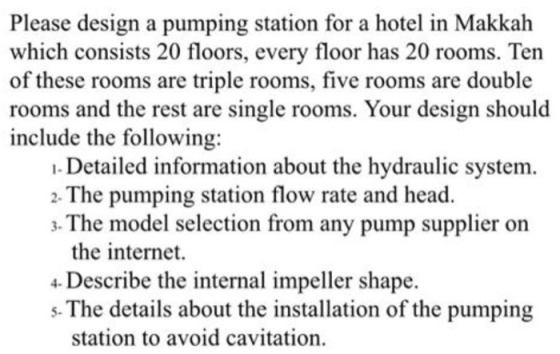

Please design a pumping station for a hotel in Makkah which consists 20 floors, every floor has 20 rooms. Ten of these rooms are triple rooms, five rooms are double rooms and the rest are single rooms. Your design should include the following: - Detailed information about the hydraulic system. 2. The pumping station flow rate and head. 3- The model selection from any pump supplier on the internet. 4- Describe the internal impeller shape. s. The details about the installation of the pumping station to avoid cavitation.

Answer 1

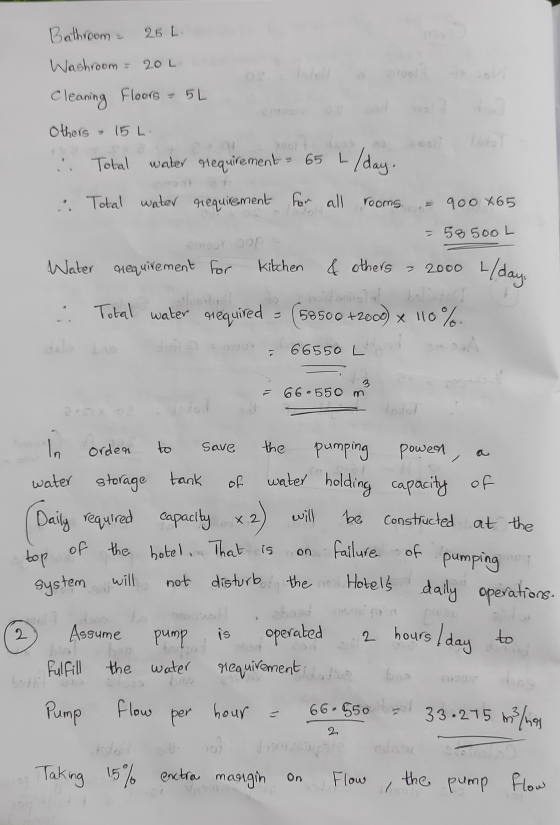

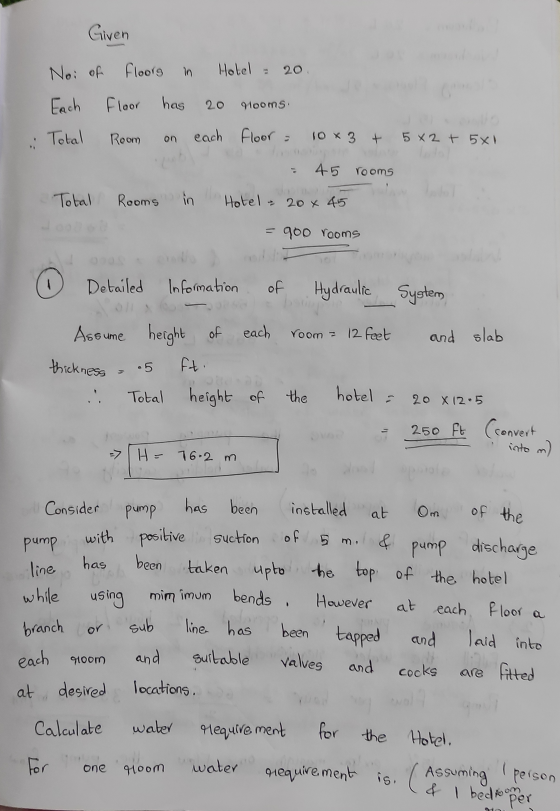

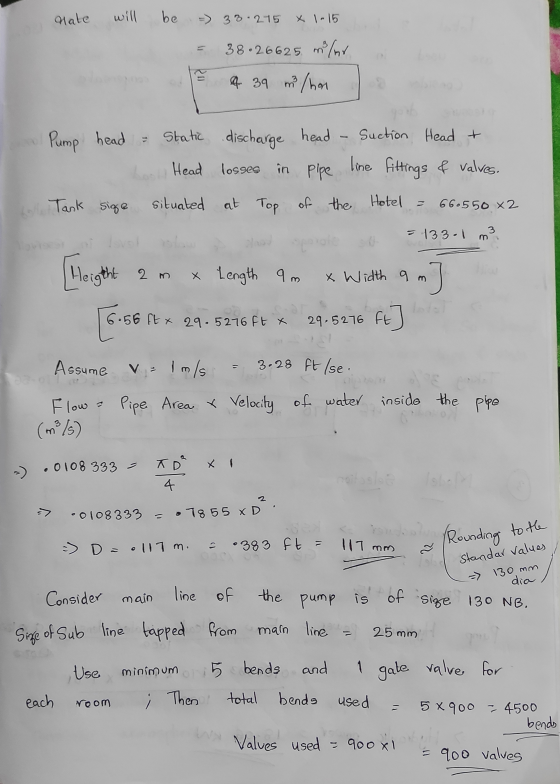

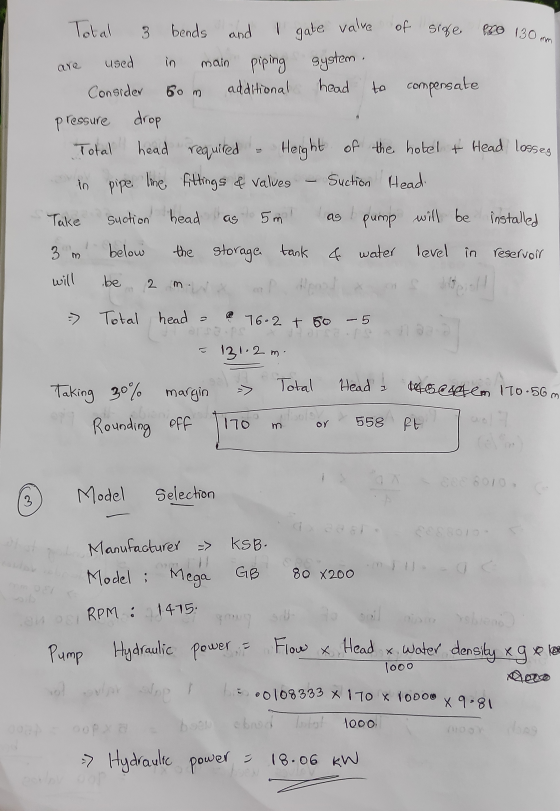

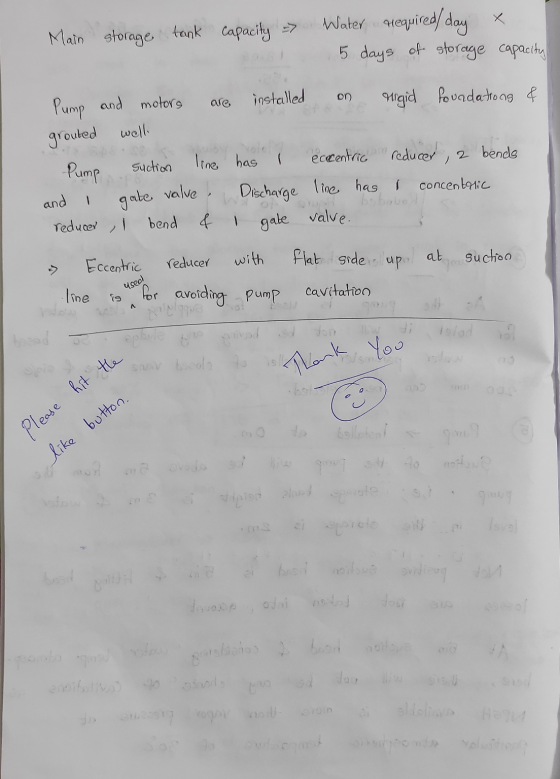

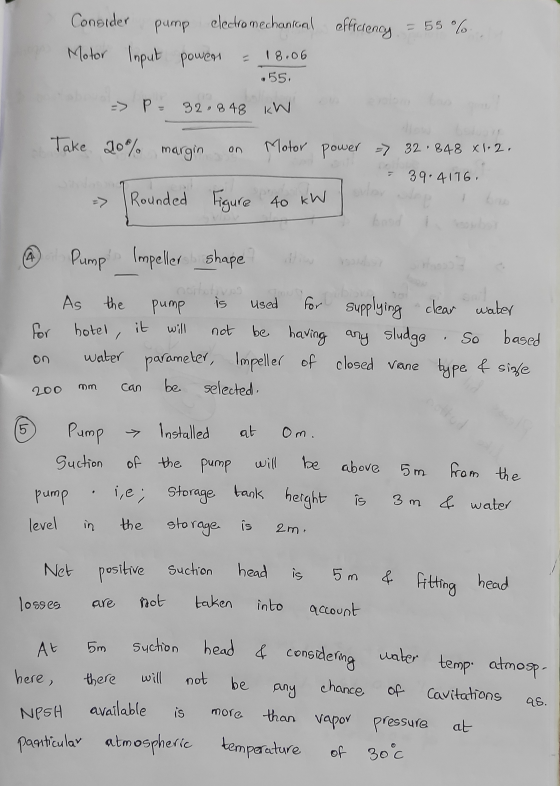

Answers are in the attached images,please do go through the same.

Please hit that like button if my answers were of any help to you.

Thank you.
