The geodetic azimuth from station 2 to station 1 is 178°18'20". The convergence angle at station...

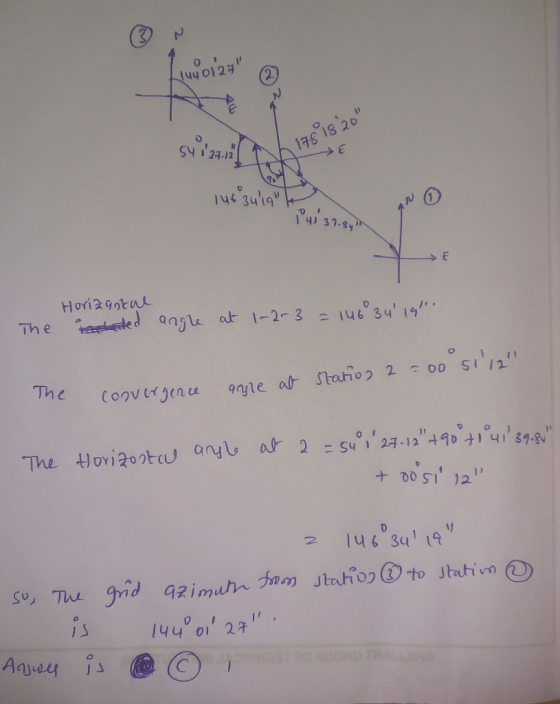

The geodetic azimuth from station 2 to station 1 is 178°18'20". The convergence angle at station 2 is +00°51'12", and clockwise horizontal angle 1-2-3 is 146°34'19". What is the grid azimuth from station 3 to station 2? (a) 324°51'47" (b) 210°52'49" (c) 144°01'27" (d) 324°01'27"
Homework Answers
