QUESTION 2 A battery, a 40 ohm resistor, and a 60 ohm resistor are all in...

Question

Question

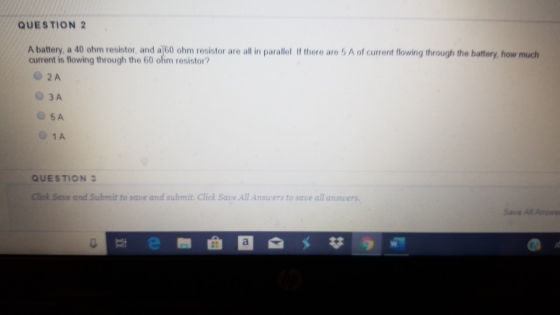

QUESTION 2 A battery, a 40 ohm resistor, and a 60 ohm resistor are all in parallel If there are 5 A of current flowing throug

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

6. A three-ohm resistor and a four-ohm resistor are connected in series to a battery. In...

6. A three-ohm resistor and a four-ohm resistor are connected in series to a battery. In a separate circuit, a three-ohm resistor and a four-ohm resistor are connected in parallel to a battery with the same battery voltage as in the first circuit. Which resistor will have the largest amount of current flowing through it? A. The three-ohm resistor in the series circuit. B. The four-ohm resistor in the series circuit. C. The three-ohm resistor and the four-ohm resistor in...
2. Three resistors of 202,40 and 60 are connected in parallel. The 40 Q resistor has...

2. Three resistors of 202,40 and 60 are connected in parallel. The 40 Q resistor has 1.0 A flowing through it. What are the currents through the 20 and 60 resistors? 3. If you wish to increase the current passing through the circuit in the previous question by adding another battery, would you add it in series or in parallel to the existing one. SERIES PARALLEL 4. In which case will more current flow through the battery: when three identical...
Find the current for the following circuits. a) A 20-ohm resistor and a 60-ohm resistor are...

Find the current for the following circuits. a) A 20-ohm resistor and a 60-ohm resistor are connected in series across a 100-V battery. b) A 20-ohm resistor and a 60-ohm resistor are connected in parallel across a 100-V battery.

A 40 ohm resistor and a 60 ohm resistor are connected in series to a 12...

A 40 ohm resistor and a 60 ohm resistor are connected in series to a 12 volt battery. A. What is the voltage difference across each resistor?
A 24-volt battery is connected in parallel to a 4-ohm and a 12-ohm resistor. a. What...

A 24-volt battery is connected in parallel to a 4-ohm and a 12-ohm resistor. a. What is ΔV4Ω? b. How much energy is lost by 1 C of charge as it flows through the 12-ohm resistor? c. How many coulombs of charge flow through the battery each second? Hints: 1 volt = 1 J/C; 1 ampere = 1 C/s.
A 2 ohm resistor, a 6 ohm resistor and a 8 ohms resistor are all connected...

A 2 ohm resistor, a 6 ohm resistor and a 8 ohms resistor are all connected in parallel to a 12V battery. What is the voltage drop across the 6 ohm resistor? _____ V

A battery, a 12 k ohm and a 3 k ohm resistors are connected in parallel...

A battery, a 12 k ohm and a 3 k ohm resistors are connected in parallel to each other. The current through the 3 k ohm resistor is measured to be 4mA. Determine the source current.
Please anawer all the parts of the question . A 10 ohm and a 15 ohm...

Please anawer all the parts of the question . A 10 ohm and a 15 ohm resistor are connected in parallel and placed across the terminals of a 15 volt battery a. Sketch the circuit diagram. b. Calculate the equivalent resistance of the circuit. c. Calculate the total current through the entire circuit. d. Calculate the current in each branch.
In the figure, R 2 ohms. Replace the 9 ohm resistor at the bottom by a...

In the figure, R 2 ohms. Replace the 9 ohm resistor at the bottom by a wire. Use MNA to determine the current flowing from right to left through that wire, in amps. Note: In this problem, you may only submit numerical answers. (i.e. If 4 is the correct answer, 4 will be marked as correct, but 2+2 will be marked as incorrect.) Figure 7 10 3 7V 3 3 1Ov 9 The current flowing from right to left through...

You have a 3000-Ohm resistor, a 10-mF capacitor, and a 100-V battery. Assume the battery is...

You have a 3000-Ohm resistor, a 10-mF capacitor, and a 100-V battery. Assume the battery is ideal, and that the capacitor is initially uncharged. You connect the battery, resistor and capacitor in series and complete the circuit. forming a loop. a) How much time passes before the capacitor reaches 2/3 of it's maximum charge (b) What is the magnitude of the current when the capacitor is at 2/3 max charge? (c.) How much charge is on the capacitor 10 seconds...
