Problem 4.4 For the AC circuit in Fig. 4.4, I PF leading. oad # 1 is...
1, Two balanced three-phase loads are in parallel. Load 1 draws 10 kW at 0.8 PF lagging Load 2 draws 20 kVA at 0.6 PF leading a. b. The loads are supplied by a balanced three-phase 480 Vu source. (a) Draw the power triangle for the combined load. (b) Determine PF of the combined load. (c) Determine the magnitude of the line current from the source. (d) Y-connected inductors are now installed in parallel with the combined load. What value...
A three-phase load of 15 kVA with a PF of 0.8 lagging is connected in parallel with a three-phase load of 36 kW at 0.6 PF leading. The line-line voltage is 2000V. a) Find the total complex power and power factor. Is it inductive or capacitive? b) How much kVAR is needed to make the PF unity? c) What is the magnitude of the current going into the total load?
Good day all.
I am facing the following problem and would like to seek some
kind help, please.
Sincerely appreciate all help and input.
- Ms Tan
1. An 10 MVA, 33 kV, 34 pole, 60 Hz, three-phase wye-connected synchronous generator has a synchronous reactance of 10 and a negligible armature resistance. a. Find the synchronous speed of this generator. b. At a certain excitation, the generator delivers 50% of rated load at 0.7 leading power factor at '33' kV....
Q3: The load in the circuit shown has a current I=200 A at pf=0.8 lagging, and a frequency 60Hz. Calculate the value of the capacitor C to correct the power factor of the parallel combination of the capacitor and the load to unity (pf=1). - - - - - - - - - - - - - - 0.122 132 ---- + 170 20 v Load V - -
3- Two balanced Y-connected loads in parallel, one drawing 25 kW at 0.6 power factor lagging and the other drawing 15 kVA at 0.8 power factor leading, are supplied by a balanced, three-phase, 480-volt source. (a) Draw the power triangle for each load and for the combined load. (b) Determine the power factor of the combined load and state whether lagging or leading. (c) Determine the magnitude of the line current from the source. (d) ∆- connected capacitors are now...
exc D)
Name Problem 1 (40 points) A small single-phase gencrator is connected to a load whose impedance is 25/-15 Q. The generator voltage is 220 V. Determine: A. The resistance and reactance of the load B. The real and reactive power absorbed by the load C. The power factor and whether it is lagging or leading D. The impedance and the real and reactive power in per unit for a base of 220 V & 100 VA 543.
1 A single phase AC system Consider a single phase AC distribution system in which there a single home connected to a 10kVA service transformer. Let’s assume that the primary of the distribution transformer can be modeled as an ideal 240V (rms) AC source and that the effective impedance of the transformer is 2% resistance and 3% reactance. (See lecture notes for converting % to Ohms). Connected to the secondary of the transformer is 200 ft of #6 AWG aluminum...
Please show all work and concepts

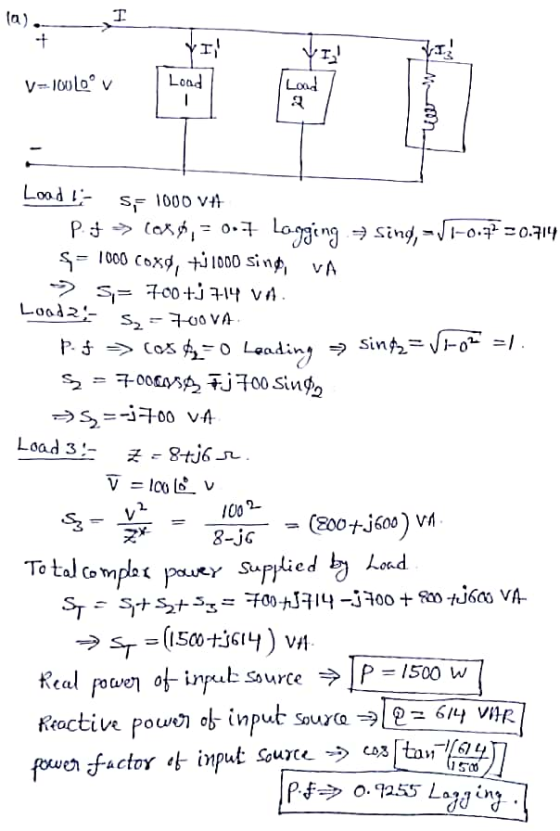

5.2 (15 pts) In the following circuit, voltage source V 10020° V, 60 Hz supplies power to three load circuits with impedances Z1, Z2, and Z3. The following information was deduced from measurements performed on the three load circuits Load Z1: 45 W at pf 0.95 lagging Load Z2: 70 VA at pf 0.75 leading Load Z3: 100 VA at pf = 0.6 lagging (a) Are Z1, Z2, and Z3 inductive or capacitive? (b)...
Problem #1 25 points A balanced three phase 230 V (line to line), 60 Hz source supplying 800 W to a Y connected load at a power factor of O.7 lagging. Three equal capacitors connected in Y are placed in parallel with the load to improve the power factor. What must be the size of the to yield power factor to unity? What would be required capacitor size if the caps are in delta connected.? Calculate total watt supplied by...
A balanced 3-0 source serves the following loads: Load 1: 18 kVA at 0.8 PF lagging Load 2: 10 KVA at 0.7 PF leading Load 3: 12 kW at unity PF Load 4: 16 kVA at 0.6 PF lagging The line voltage across the terminals of the load is 208 Vrms and the line impedance is 0.2 +j0.4/0. Find the line voltage and PF at the source. (3 pt) Real part of the line voltage at the source: (3 pt)...
