what is the I of R4 • V = 12V • V2 = 5V R =...

Question

Question

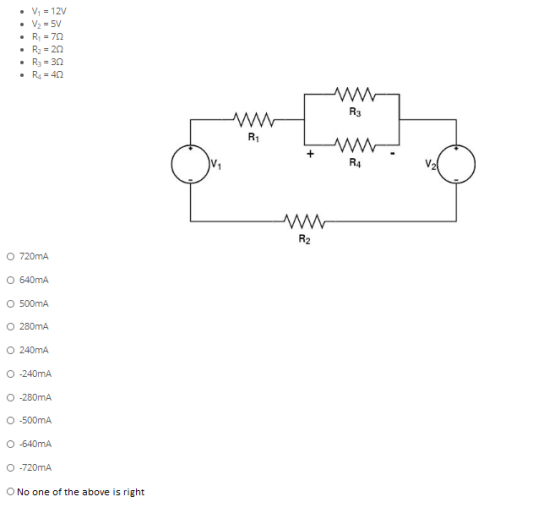

• V = 12V • V2 = 5V R = 70 R2 = 20 • R = 30 R. = 402 R3 R1 R4 R2 O 720mA O 640mA O 500mA O 280mA O 240mA 0-240mA 0-280mA 0 -5

what is the I of R4

engineering Electrical-Engineering

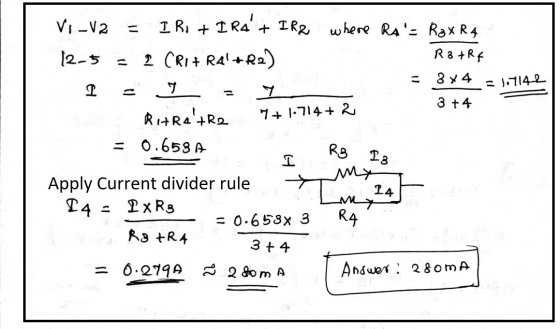

Answer 1

Answer #1

Answer 2
