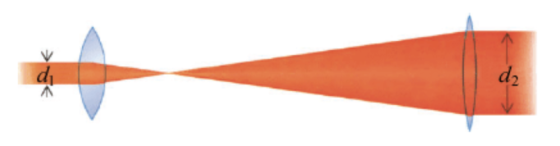

A laser beam of diameter d1 = 1.1 mm is directed along the optical axis of a thin lens of focal length +6.5 cm (see figure below).

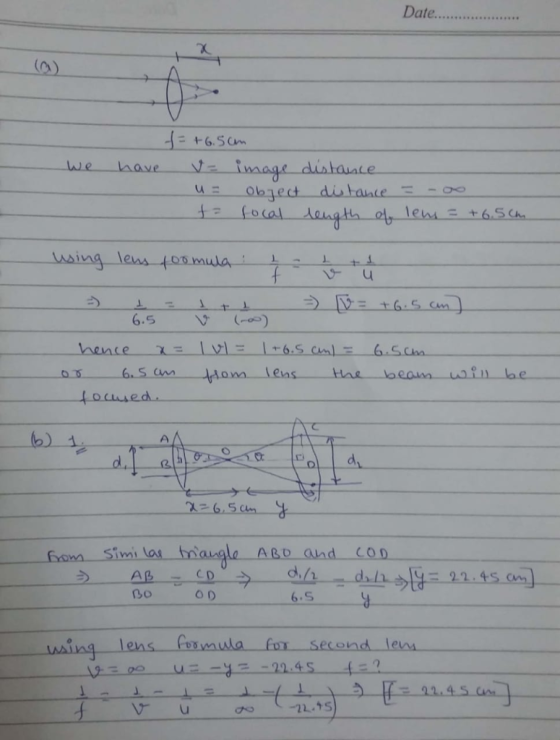

(a) How far from the lens will the beam be focused?
(b) 1. A second positive lens is placed to the right of the first. Light emerges from the second lens in a parallel beam of diameter d2 = 3.8 mm. Thus the combination of lenses acts as a beam expander. Find the focal length of the second lens.

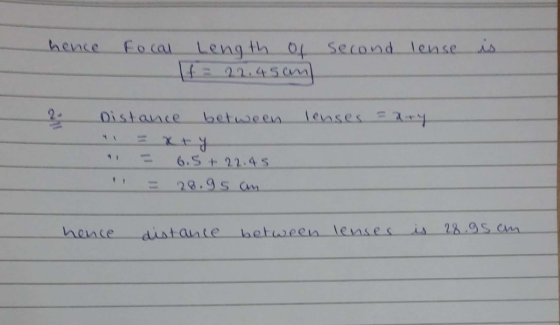

2. Find the distance between the lenses.
Homework Answers
Add Answer to:
A laser beam of diameter d1 = 1.1 mm is directed along the
optical axis of...
5.50* Two positive lenses are to be used as a laserbeam expander. An axial 1.0-mm-diameter beam...
5.50* Two positive lenses are to be used as a laserbeam expander. An axial 1.0-mm-diameter beam enters a short focal length positive lens, which is followed by a somewhat longer focal length positive lens from which it emerges with a diameter of 8.0 mm. Given that the first lens has a 50.0 mm focal length, determine the focal length of the second lens and the separation between the lenses. Draw a diagram
A collimated beam of laser light is incident on a set of three lenses in air....
A collimated beam of laser light is incident on a set of three lenses in air. The first lens is diverging (fi<0) while the second and third lenses are converging (f2>0, f;>0). The first and second lenses are separated by a distance d12, while the second and third lenses are separated by a distance d23. The system is designed to take the collimated beam of laser light expand it (lens 1), recollimate it (lens 2), and then focus it to...
A beam of light (rays parallel to the optical axis) with diameter 10 cm is incident...
A beam of light (rays parallel to the optical axis) with diameter 10 cm is incident (from the left) on a lens with a focal length of 10 inches. With a second lens, of focal length 5 inches you can recreate a parallel beam of light going out on the right. (a) Sketch the setup, including dimensions, placement of the lenses, and some representative rays, (b) what will be the diameter of the exiting beam of light?
1) A laser produces a Gaussian beam with a waist immediately outside the laser, with a beam radiu...
1) A laser produces a Gaussian beam with a waist immediately outside the laser, with a beam radius of 5 mm, an average power of 1 Watt, and a wavelength of 1 шт. We wish to choose a lens that will focus this beam as tightly as possible, subject to the constraint that the depth of focus must be at least 1 mm. a) What focal length lens should we choose? (Assume an ideal thin lens with no aberrations.) b)What...
An object 3.8 mm high is on the optical axis of two lenses with focal lengths...
An object 3.8 mm high is on the optical axis of two lenses with focal lengths f1 = +5.0 cm, f2 = +10 cm. The object is 6.2 cm to the left of the first lens, and the second lens is 33 cm to the right of the first lens. Find the position (relative to the second lens) and the size of the final image by calculation.
Chapter 34, Problem 111 Your answer is incorrect. Try again. The figure shows a beam expander...
Chapter 34, Problem 111 Your answer is incorrect. Try again. The figure shows a beam expander made with two coaxial converging lenses of focal lengths f and 2 and separation d-2. The device can expand a laser beam while keeping the light rays in the beam parallel to the central axis through the lenses. Suppose a uniform laser beam of width w; = 3.2 mm and intensity I, = 9.2 kW/m2 enters a beam expander for which f1 = 13.3...
A 3 mW red ( = 670 nm) laser pointer produces a 2 mm diameter spot...
A 3 mW red ( = 670 nm) laser pointer produces a 2 mm diameter spot on a screen. a) If we place a f = 1cm lens before the screen, and the radius of curvature of the wavefront reaching the lens is 2 m, find the waist of the focused light. b) The intensity of the light at the center of the beam is given by Imax= 2P/πw2(in W/m2). Calculate the maximum intensity at the focal point. c) If...
An object 4.0 mm high is on the optical axis of two lenses with focal lengths...
An object 4.0 mm high is on the optical axis of two lenses with focal lengths f1 = +5.0 cm, f2 = +10 cm. The object is 6.5 cm to the left of the first lens, and the second lens is 31 cm to the right of the first lens. Find the position (relative to the second lens) and the size of the final image by calculation?
1. A Galilean beam expander is really a Galilean telescope used in reverse (see notes page...
1. A Galilean beam expander is really a Galilean telescope used in reverse (see notes page 2-33a). A rallel beam of light enters a negative lens, diverges and enters a longer focal length positive lens of r diameter. The focal points of the two lenses are coincident on the input side of the instrument and the separation d = f, + , between the two thin lenses (center to center) is 90 cm. Assume fi 12.0 cm and f,:+21.0 cm,...
In the figure, a laser beam of power 6.01 W and diameter 2.60 mm is directed...
In the figure, a laser beam of power 6.01 W and diameter 2.60 mm is directed upward at one circular face (of diameter d < 2.60 mm) of a perfectly reflecting cylinder. The cylinder is levitated because the upward radiation force matches the downward gravitational force. If the cylinder's density is 1.05 g/cm3, what is its height H? D H Number Units
5.50* Two positive lenses are to be used as a laserbeam expander. An axial 1.0-mm-diameter beam enters a short focal length positive lens, which is followed by a somewhat longer focal length positive lens from which it emerges with a diameter of 8.0 mm. Given that the first lens has a 50.0 mm focal length, determine the focal length of the second lens and the separation between the lenses. Draw a diagram
A collimated beam of laser light is incident on a set of three lenses in air. The first lens is diverging (fi<0) while the second and third lenses are converging (f2>0, f;>0). The first and second lenses are separated by a distance d12, while the second and third lenses are separated by a distance d23. The system is designed to take the collimated beam of laser light expand it (lens 1), recollimate it (lens 2), and then focus it to...
1) A laser produces a Gaussian beam with a waist immediately outside the laser, with a beam radius of 5 mm, an average power of 1 Watt, and a wavelength of 1 шт. We wish to choose a lens that will focus this beam as tightly as possible, subject to the constraint that the depth of focus must be at least 1 mm. a) What focal length lens should we choose? (Assume an ideal thin lens with no aberrations.) b)What...
Chapter 34, Problem 111 Your answer is incorrect. Try again. The figure shows a beam expander made with two coaxial converging lenses of focal lengths f and 2 and separation d-2. The device can expand a laser beam while keeping the light rays in the beam parallel to the central axis through the lenses. Suppose a uniform laser beam of width w; = 3.2 mm and intensity I, = 9.2 kW/m2 enters a beam expander for which f1 = 13.3...
1. A Galilean beam expander is really a Galilean telescope used in reverse (see notes page 2-33a). A rallel beam of light enters a negative lens, diverges and enters a longer focal length positive lens of r diameter. The focal points of the two lenses are coincident on the input side of the instrument and the separation d = f, + , between the two thin lenses (center to center) is 90 cm. Assume fi 12.0 cm and f,:+21.0 cm,...
In the figure, a laser beam of power 6.01 W and diameter 2.60 mm is directed upward at one circular face (of diameter d < 2.60 mm) of a perfectly reflecting cylinder. The cylinder is levitated because the upward radiation force matches the downward gravitational force. If the cylinder's density is 1.05 g/cm3, what is its height H? D H Number Units
