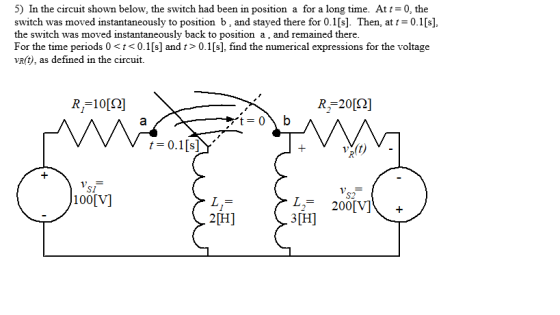

5) In the circuit shown below, the switch had been in position a for a long...

Question

Question

engineering Electrical-Engineering

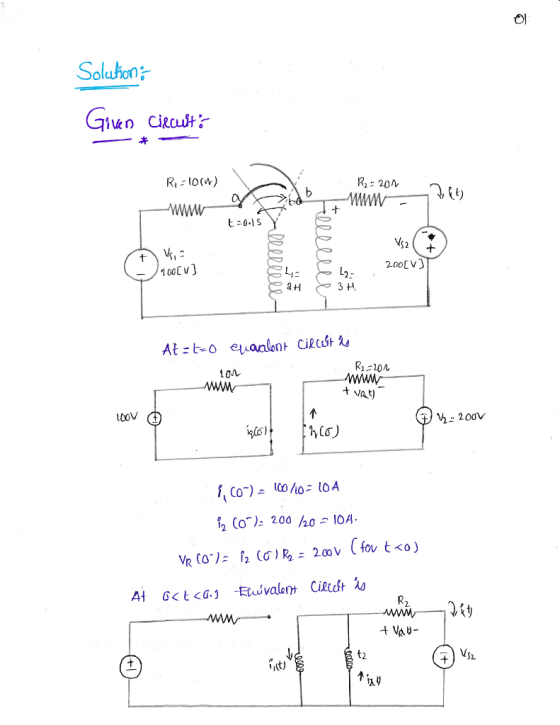

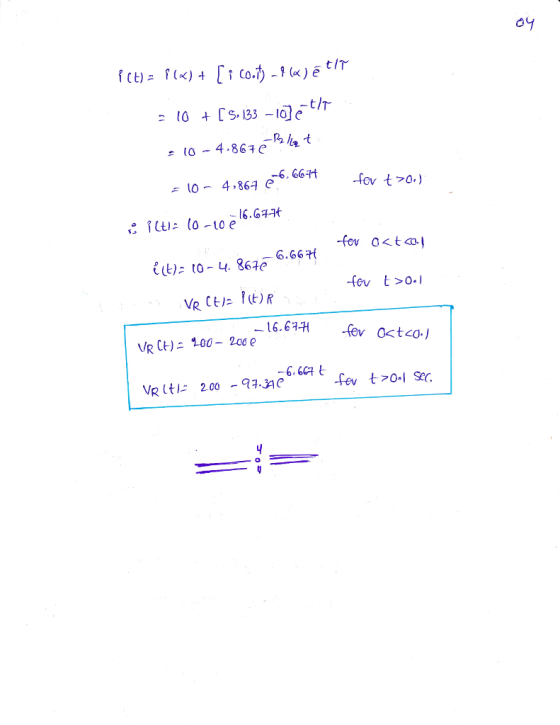

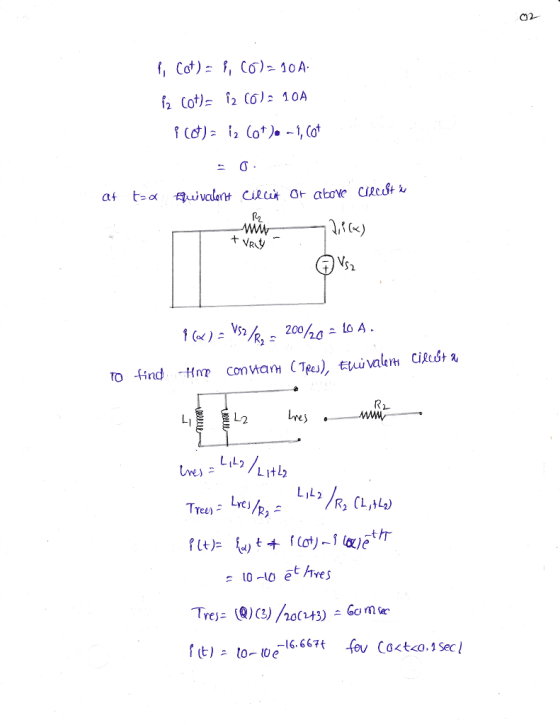

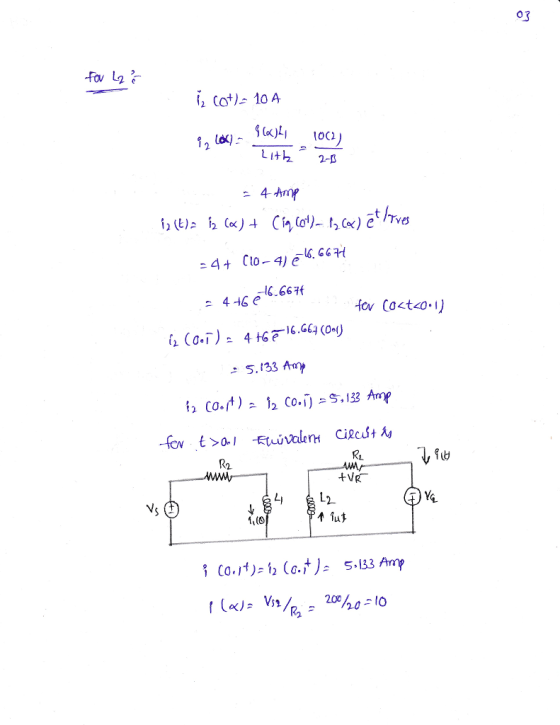

Answer 1

Answer #1

Answer 2
