Please explain how each question was solved 60 uF and C3-15 uF Find the equivalent capacitance...

Question

Question

Please explain how each question was solved

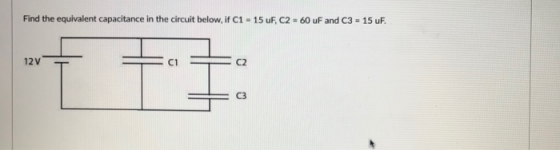

60 uF and C3-15 uF Find the equivalent capacitance in the circuit below, if C1-15 uF, C2 12V C1 C2

science physics

Answer 1

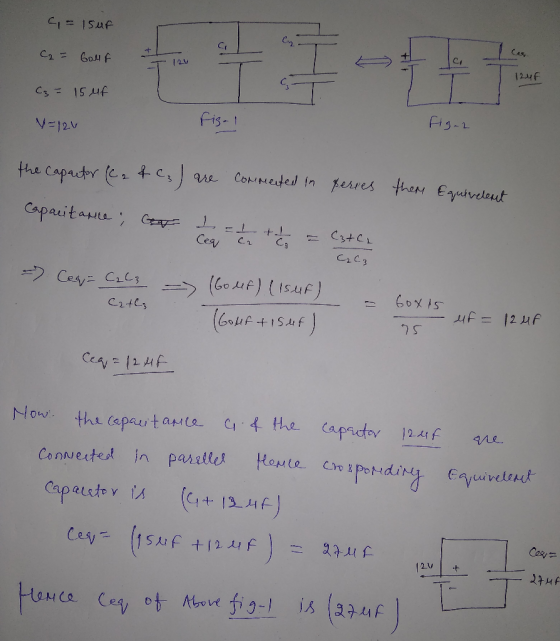

Answer #1

Answer 2

Similar Homework Help Questions

Find the equivalent capacitance (in uF) between points a and b for the group of capacitors...

Find the equivalent capacitance (in uF) between points a and b for the group of capacitors connect as shown below. Take C1=14.28 uF, C2=16.33 uF, and C3=7.52 uF. Å Fig1_1.pdf O
In the diagram below, C1=30 uF, C7=15 MF, Cz=10 uF, C=20 MF, and C=10 pF. Find...

In the diagram below, C1=30 uF, C7=15 MF, Cz=10 uF, C=20 MF, and C=10 pF. Find the equivalent resistance of the block (C1, C2, C3, C4): Cegt MF. Find the total equivalent capacitance of this circuit: Ceg UF Find the charge on capacitor Cs: 95-ENAC. Find the voltage drop across capacitor Cs Vse С. C3 HE HA C2 C4 HE + 90.0 V C5
2 part question? In the circuit below C1 = C2 = 8 uF, and C3 =...

2 part question? In the circuit below C1 = C2 = 8 uF, and C3 = 11 uF, the battery supplies 9 V. C3 G. C2 + (a) Find the equivalent capacitance of the circuit. Select one: a. 27.00 uF b. 15.00 UF c. 16.00 uF d. 6.52 UF In the circuit below C7 = C2 = 8 MF, and C3 = 11 uF, the battery supplies 9 V. C3 G C + (b) What is the potential energy stored...

s uie 4) a) Find the equivalent capacitance for the circuit given, where, Ces uf C2-2...

s uie 4) a) Find the equivalent capacitance for the circuit given, where, Ces uf C2-2 uF,Cs-3 HF. b) Determine the charge on each capacitor and the voltage across each, assuming the battery voltage is V-4v. C2 C1 b C3
In the circuit below C1 = C2 = 8 uF, and C3 = 11 uF, the...

In the circuit below C1 = C2 = 8 uF, and C3 = 11 uF, the battery supplies 9 V. Cg G Cq (a) Find the equivalent capacitance of the circuit. Select one: O a. 16.00 pF o b. 6.52 pF O c. 15.00 pF d. 27.00 uF
In the circuit below C1 = C2 = 8 uF, and C3 = 11 uF, the...

In the circuit below C1 = C2 = 8 uF, and C3 = 11 uF, the battery supplies 9 V. Cg С G2 (a) Find the equivalent capacitance of the circuit. Select one: a. 27.00 pF b. 6.52 pF O c. 16.00 pF d. 15.00 pF In the circuit below C1 = C2 = 8 pF, and C3 = 11 uF, the battery supplies 9 V. Cg C C (b) What is the potential energy stored by capacitor Cı? Select...

Consider the figure below: Ci "C3 "C2 (a) Find the equivalent capacitance of the group of...

Consider the figure below: Ci "C3 "C2 (a) Find the equivalent capacitance of the group of capacitors in the figure if C = 4.54 „F,C2 = 2.35 uF, and Cz = 3.18uF. uF ( + 0.02 uF) (b) If these capacitors are connected to a V = 12.0-V battery as shown in the figure, find the potential difference across C2. V( + 0.02 V) (c) Find the charge on C2. IC (+0.02 MC)
Find the equivalent capacitance for the network shown in the figure below if C1 = 1.00...

Find the equivalent capacitance for the network shown in the figure below if C1 = 1.00 pF, C2 = 2.20 pF, C3 = 3.80 pF, C4 = 4.00 uF and Cs = 6.90 pF. UF C) 'Ï Ï Submit Answer
Question 9 Not yet answered In the circuit below C1 = C2 = 8 uF, and...

Question 9 Not yet answered In the circuit below C1 = C2 = 8 uF, and C3 = 11 uF, the battery supplies 9 V. Points out of 5.00 P Flag question Cz G. C2 (a) Find the equivalent capacitance of the circuit. Select one: a. 27.00 uF b. 6.52 UF c. 15.00 pF d. 16.00 pF

Please explain each step in the solution 6. Find the equivalent capacitance of the combination. Assume...

Please explain each step in the solution 6. Find the equivalent capacitance of the combination. Assume that Ci is 10 uF, C2 is 5uF and C3 is 4uF (2 marks)
