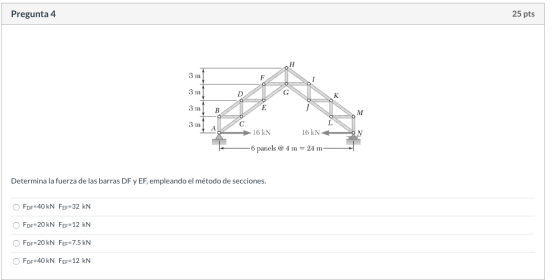

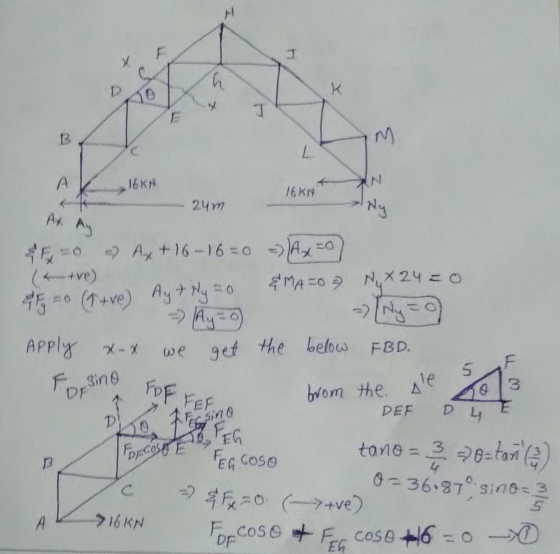

Determine the strength of the DF and EF bars, using the section method.
Homework Answers
thank
you dear please give ratingAdd Answer to:
