Find mesh current i1, i2, and i3 in term Vx and find Vx which non current...

Question

Question

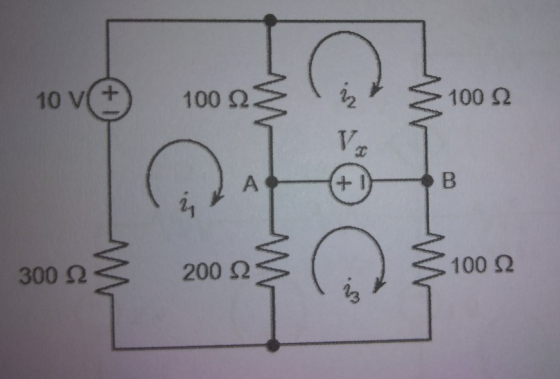

Find mesh current i1, i2, and i3 in term Vx and find Vx which non current flow between node
A and Node B

10v 100nF Ž 100 s2 2

engineering Electrical-Engineering

Answer 1
