Although an ideal voltmeter has an infinite internal resistance, this theoretical ideal is usually not met...

Question

Question

Although an ideal voltmeter has an infinite internal resistance, this theoretical ideal is usually not met in practice. The v

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

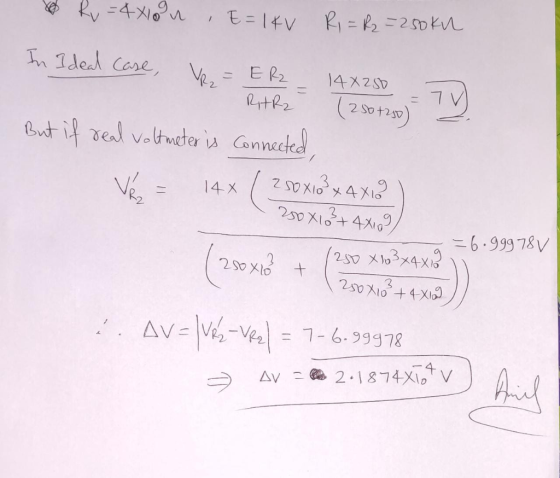

Dear student,

Find this solution, and RATE IT ,If you find it is helpful .your rating is very important to me.If any incorrectness ,kindly let me know I will rectify them soon.

Thanks for asking ..

Add a comment

Answer 2
