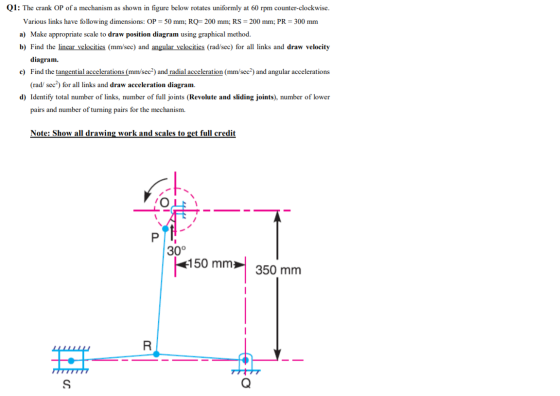

answer only part C and draw acclreation digram clear hand writing very fast pleas
answer only part C and draw
acclreation digram clear hand writing very fast pleas
Homework Answers
Solution

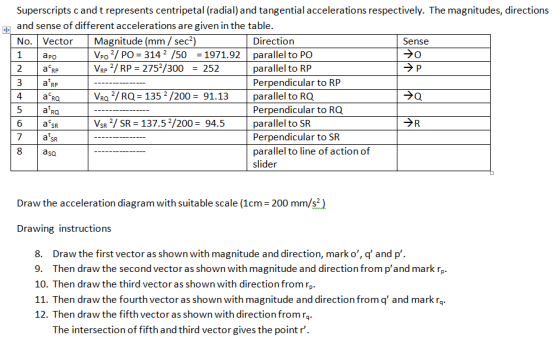

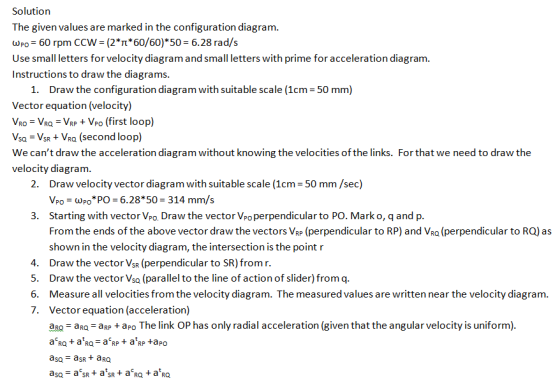

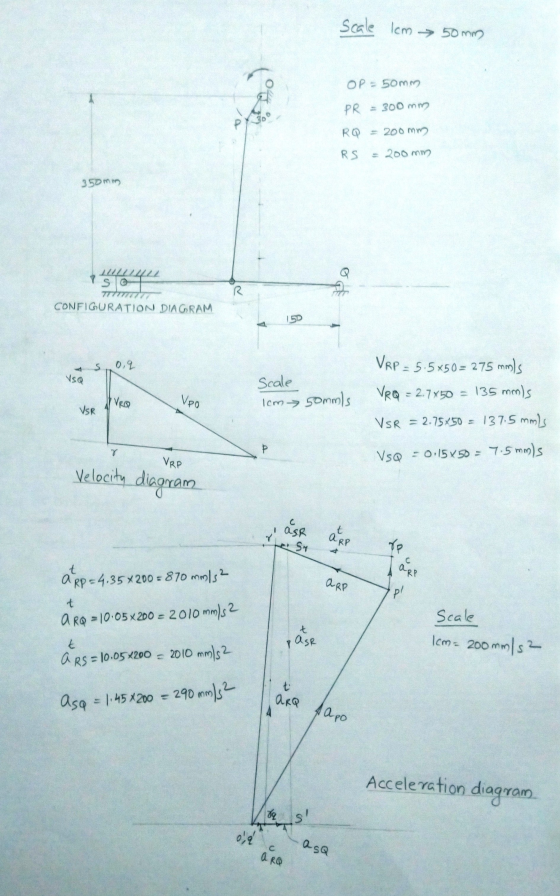

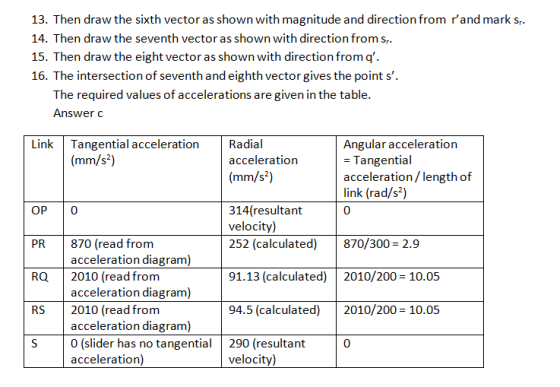

Please see the images.
Please give a thumps up if you are satisfied with the answer, otherwise comment.
