Homework Answers
Add Answer to:

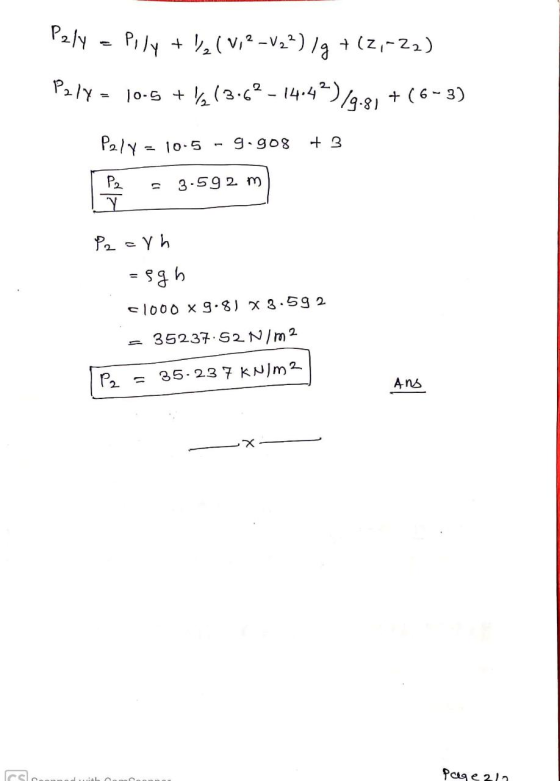

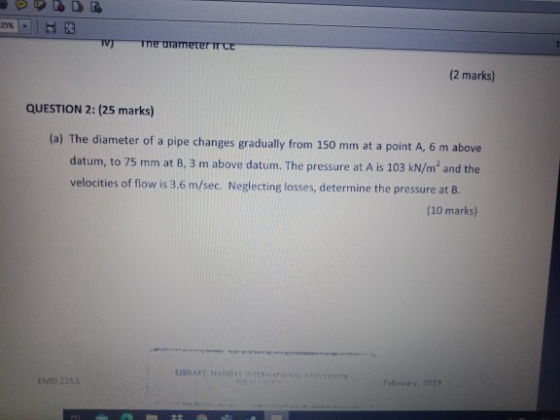

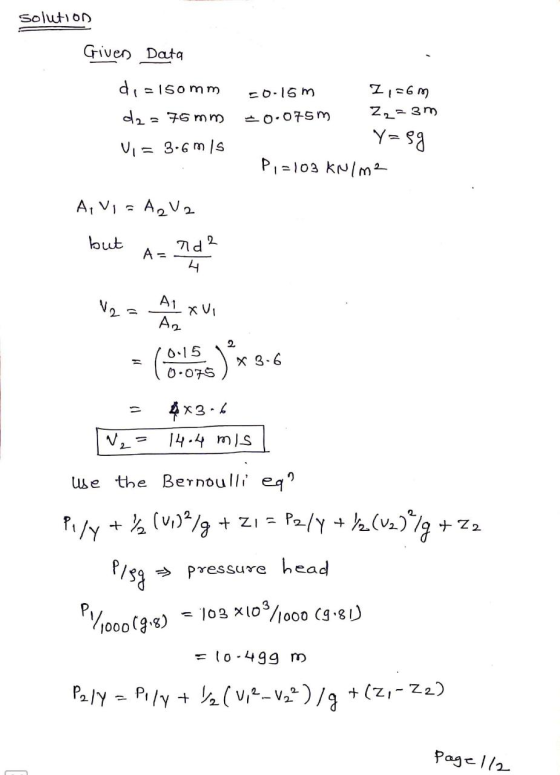

25% B TV The diameter TCE (2 marks) QUESTION 2: (25 marks) (a) The diameter of...
Question 1. Explain briefly () Factors affecting head losses in water pipe networks Question 2 Water...
Question 1. Explain briefly () Factors affecting head losses in water pipe networks Question 2 Water is fully flowing into a 120 m long and 50 mm diameter horizontal Circular pipe at 42°C and an average flow velocity of 3.6 m/sec. ps 1008 kg/m' and Ruestion 4 Given that Waste Water is flowing uniformly and Half Fully into a 24 m diameter channel made from smoothly finished concrete. What is the minimum required channel bed slope in mm) to reach...
Question in the picture smooth pipe: Total length, L Diameter, d -25 mm 4 m tank...
Question in the picture
smooth pipe: Total length, L Diameter, d -25 mm 4 m tank water (pa 1,000 kg/m3, μ 0.001 kg/ms) flows from a very large tank (that is open to atmosphere) through an L 4 m total length of smooth pipe of d = 25 mm diameter at a bulk velocity of 6 m/s. The water then exits the pipe at 3 m above ground as a free jet. The pipe network contains a gate valve (V),...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
A centrifugal pump test yields the following data: Pump Head Flow (m)(L/min) 30 25 20 40 The pump...
A centrifugal pump test yields the following data: Pump Head Flow (m)(L/min) 30 25 20 40 The pump curve can be approximated by a parabola. This pump draws water from a large reservoir. The discharge of the pump feeds 150 m of 1.5 cm inside diameter pipe and then 225 m of 3 cm inside diameter pipe.. The two pipes both have a roughness of 0.5 mm The 3 cm pipe discharges to atmosphere a distance 40 m below the...
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find th...
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m /s and the pressure head at Bif the siphon pipe has a uniform diameter of 140 mm. (15 marks) B M K N Doc-
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m...
please clearly indicate answer(s) 1. As shown in the figure, using a 6-m-long, 100 mm diameter...
please clearly indicate answer(s)
1. As shown in the figure, using a 6-m-long, 100 mm diameter pipe and assuming a friction factor f-0.02, investigate the likelhood of cavitation if h-4 m and h = 3m Water temperature is 25 degrees Centigrade, 5101325 KP kinematic viscosity =156 m2/sec, flow velocity = 4 m/sec, neglect minor losses using 2. At the deign flow rate read the pump characteristics if the 6 in impeller is used (power, efficiency, head) 3. If the angular...
E Question-4 1.2 m 04=0 D Pipe 40-mm inside diameter 1.8 m Figure shows a siphon...
E Question-4 1.2 m 04=0 D Pipe 40-mm inside diameter 1.8 m Figure shows a siphon that is used to draw water from a swimming pool. The pipe that makes up the siphon has an inside diameter of 40 mm and terminates with a 25-mm diameter nozzle. Assuming that there are no energy losses in the system, calculate the volume flow rate through the siphon and the pressure at points B-E. 25-mm diameter 1.2 m Pp=0 Question - 5
Answer Questions 1&2 Question -1 Inside diameters of a pipe at sections 1 and 2 are...
Answer Questions 1&2
Question -1 Inside diameters of a pipe at sections 1 and 2 are 50 mm and 100 mm, respectively. Water is flowing with an average velocity of 8 m/s at section 1. Calculate: (a) Velocity at section 2 (b) Discharge Q (C) Weight flow rate. Flow Reference level Question - 2 In Fig. (Given in Question -1) water is flowing from section 1 to section 2. At section 1, which is 25 mm in diameter, the gage...
(QI) A pump is used to transport castor oil at 25 C to a refinery located...
(QI) A pump is used to transport castor oil at 25 C to a refinery located 30 m above. The discharge pipe is DN 125 Schedule 40 steel pipe, 56 m long and the flow rate is 1200 liter/min. If the pressure at outlet is 35 psig at the nozzle (at the refinery), the pump head is 75 m, and considering only losses due to friction, compute the pressure at the inlet of the pump. (b) comment on the inlet...
A given pipe having 250 mm diameter at section A and 500 mm diameter at section...
A given pipe having 250 mm diameter at section A and 500 mm diameter at section B carries petrol of specific gravity 0.89 at the flow rate of 270 l/s. The section B is at altitude of 14 m above section A. If the pressure of the petrol at section A and section B are 190 KPa and 150 KPa respectively. 1 - Calculate the Head Loss between the two sections; 2 - Change the unit flow rate in USA...
Question 1. Explain briefly () Factors affecting head losses in water pipe networks Question 2 Water is fully flowing into a 120 m long and 50 mm diameter horizontal Circular pipe at 42°C and an average flow velocity of 3.6 m/sec. ps 1008 kg/m' and Ruestion 4 Given that Waste Water is flowing uniformly and Half Fully into a 24 m diameter channel made from smoothly finished concrete. What is the minimum required channel bed slope in mm) to reach...
Question in the picture
smooth pipe: Total length, L Diameter, d -25 mm 4 m tank water (pa 1,000 kg/m3, μ 0.001 kg/ms) flows from a very large tank (that is open to atmosphere) through an L 4 m total length of smooth pipe of d = 25 mm diameter at a bulk velocity of 6 m/s. The water then exits the pipe at 3 m above ground as a free jet. The pipe network contains a gate valve (V),...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
A centrifugal pump test yields the following data: Pump Head Flow (m)(L/min) 30 25 20 40 The pump curve can be approximated by a parabola. This pump draws water from a large reservoir. The discharge of the pump feeds 150 m of 1.5 cm inside diameter pipe and then 225 m of 3 cm inside diameter pipe.. The two pipes both have a roughness of 0.5 mm The 3 cm pipe discharges to atmosphere a distance 40 m below the...
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m /s and the pressure head at Bif the siphon pipe has a uniform diameter of 140 mm. (15 marks) B M K N Doc-
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m...
please clearly indicate answer(s)
1. As shown in the figure, using a 6-m-long, 100 mm diameter pipe and assuming a friction factor f-0.02, investigate the likelhood of cavitation if h-4 m and h = 3m Water temperature is 25 degrees Centigrade, 5101325 KP kinematic viscosity =156 m2/sec, flow velocity = 4 m/sec, neglect minor losses using 2. At the deign flow rate read the pump characteristics if the 6 in impeller is used (power, efficiency, head) 3. If the angular...
E Question-4 1.2 m 04=0 D Pipe 40-mm inside diameter 1.8 m Figure shows a siphon that is used to draw water from a swimming pool. The pipe that makes up the siphon has an inside diameter of 40 mm and terminates with a 25-mm diameter nozzle. Assuming that there are no energy losses in the system, calculate the volume flow rate through the siphon and the pressure at points B-E. 25-mm diameter 1.2 m Pp=0 Question - 5
Answer Questions 1&2
Question -1 Inside diameters of a pipe at sections 1 and 2 are 50 mm and 100 mm, respectively. Water is flowing with an average velocity of 8 m/s at section 1. Calculate: (a) Velocity at section 2 (b) Discharge Q (C) Weight flow rate. Flow Reference level Question - 2 In Fig. (Given in Question -1) water is flowing from section 1 to section 2. At section 1, which is 25 mm in diameter, the gage...
(QI) A pump is used to transport castor oil at 25 C to a refinery located 30 m above. The discharge pipe is DN 125 Schedule 40 steel pipe, 56 m long and the flow rate is 1200 liter/min. If the pressure at outlet is 35 psig at the nozzle (at the refinery), the pump head is 75 m, and considering only losses due to friction, compute the pressure at the inlet of the pump. (b) comment on the inlet...
A given pipe having 250 mm diameter at section A and 500 mm diameter at section B carries petrol of specific gravity 0.89 at the flow rate of 270 l/s. The section B is at altitude of 14 m above section A. If the pressure of the petrol at section A and section B are 190 KPa and 150 KPa respectively. 1 - Calculate the Head Loss between the two sections; 2 - Change the unit flow rate in USA...
