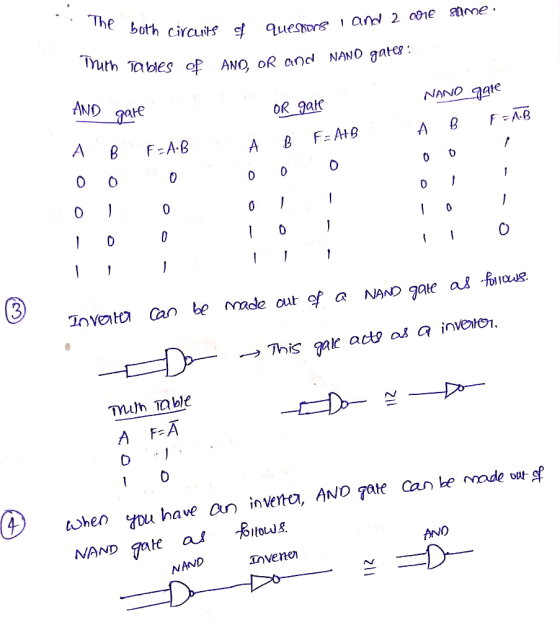

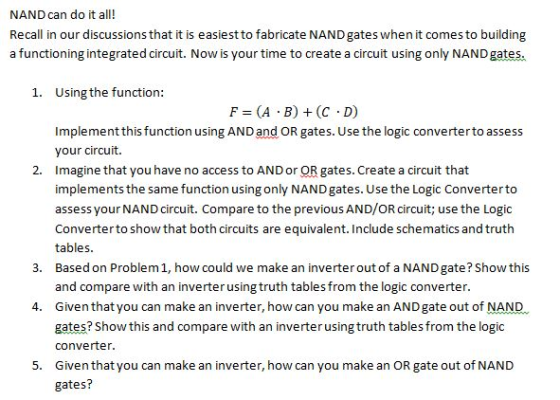

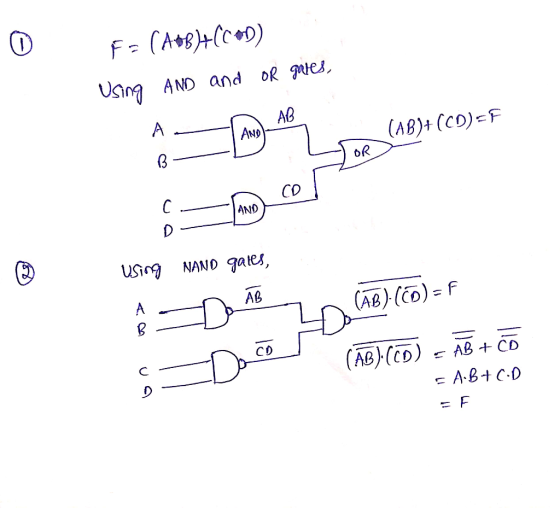

NAND can do it all! a functioning integrated circuit. Now is your time to create a...
1. Determine 2 ways to implement an inverter with a 2-input NAND gate. 2. Implement a 3-input NAND gate function using 2-input NAND gates only, draw schematics. 3. Implement a 2-input OR function using 2-input NAND gates only, draw schematics. 4. (A) Implement the function using one 2-input OR gate, one 2- input AND gate and one 2-input NAND gate. (B) Implement the same function with only NAND gates. (C) Make up the truth table for the function. What is...
For each of the following show the logic circuit with only NAND gates and also show the truth table. Create a NOT gate. Create an AND gate. Create an OR gate. Create a NOR gate. Create an XOR gate. Create a Half Adder
Verify that your design can be represented by the circuit below. 120 Full-Adder circuit Many of the logic gates you require may not exist in standard TTL/CMOS 74 series family of logic. For example in future designs you may require a 50 input OR gate. The 74 series does not have a 50 input OR gate. For your 1 bit adder you will have the following devices: 1 quad 2 IP NAND, 1 TRIPLE 3 IP NAND, 7400 7410 7404...
Create a truth table to implement AND logic using only NAND gates. Draw the circuit diagram (schematic) for the implementation. Do the same for OR logic using only NOR gates.
We know that the NAND gate is universal, so all other gates can be built using just NAND gates. Hence we should be able to build a half-adder using NAND gates. And we can. a) Draw the AND operation as a circuit using only 2 NAND gates b) Check your design in (a) by showing the full truth table for it c) Draw the OR operation as a circuit using only 3 NAND gates
PRELIMINARY WORK 2: FUNCTIONS OF LOGIC GATES F (xyz) Figure 2.1-3-input-NAND Gate design by using just 2-input-NAND Gates Figure 2.2- Design of function F-xy+x'z, by using just 2-input-NAND Gates Simulate the logic circuits that are given in figure 2.1 and figure 2.2. Simulations can be done in Proteus, P-Spice or any simulation program that you want to use. You can take screenshot of your design for print out. Please fill the table 2.1 according to your simulation results. Experiment results...
We know that the NAND gate is universal, so all other gates can be built using just NAND gates. Hence we should be able to build a half-adder using NAND gates. And we can. a) Draw the AND operation as a circuit using only 2 NAND gates [2 marks] b) Check your design in (a) by showing the full truth table for it [2 marks] c) Draw the OR operation as a circuit using only 3 NAND gates [2 marks]...
I need help with this assignment (showing all the steps) Create a truth table and design a logic circuit using NAND gates(4 steps) of the function: F(wxyz) =Σm(0,1,2,3,4,5,7,14,15) Then reduce the function using and method and design a logic circuit (show all the steps) And show the resulting Minterm and Maxterm Expansions from the table of original funtion Thank you
Design a 3 input NOR gate using n-channel and p-channel enhancement M - Use NAND gates to make a circuit that functions as: a) an inverter b) an AND function c) an exclusive OR (XOR) Function
I need help with this Class Assignment: Use this function to create a truth table and the schematics for a logic gates on a multisim F(a, b, c) = (A + C)(AB + AB') + C Use Boolean laws and theorems to reduce the function and use it to create another truth table. The new truth tables should match the original and the schematics for the logic gates on a multisim. Please Feed both circuits of each function with the...
