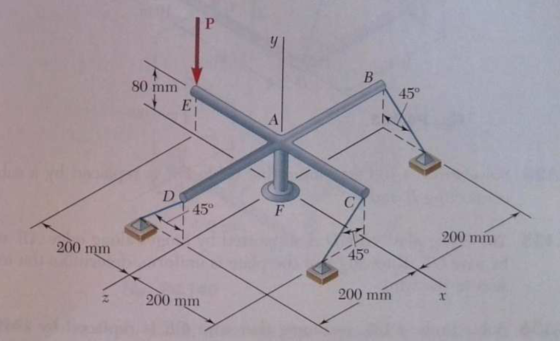

The cross-shaped structure consists of four arms, each of length 200mm, welded to a post FA of length 80mm. The post is supported by a ball-and-socket joint at F. Calculate the tensions in the three diagonal cables in terms of the applied vertical force P.80 mm E1 200 mm 200 mm 200 mm 200 mm
