A double-slit system with slit separation 0.329mm is used to determine the wavelength of light passed...

A double-slit system with slit separation 0.329mm is used to determine the wavelength of light passed by a filter. The resulting bright fringes are 2.11mm apart on a screen 1.50 m away.

Part A

What's the wavelength?

Express your answer with the appropriate units.

Part B

What color is the filter?
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

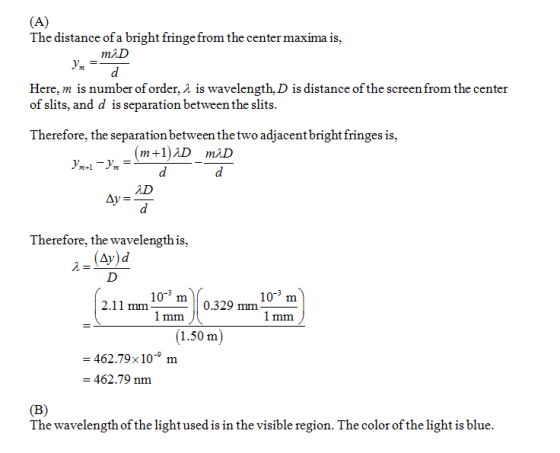

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A double-slit system with slit separation 0.329mm is used to determine the wavelength of light passed...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Laser light of wavelength 633 nm falls onto a double slit with slit separation 0.132 mm....

    Laser light of wavelength 633 nm falls onto a double slit with slit separation 0.132 mm. An interference pattern is observed on a screen 2.20 m away. How far apart are the bright spots on the screen near the middle of the pattern?

  • A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is...

    A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is observed on a screen 5.00m away. The slits are 2.125fim width and are separated by 0.1mm. How far apart are the first and second bright fringes? How far apart are the first and second dark fringes? Determine the slit to screen distance required such that the width of the central peak of the diffraction pattern is 1 m. Why is the calculation from part...

  • Light with a wavelength 430 nm passes through a double-slit system that has a slit separation...

    Light with a wavelength 430 nm passes through a double-slit system that has a slit separation d = 0.500 mm. Determine how far away a screen must be placed in order that a dark fringe appear directly opposite both slits, with just one bright fringe between them. 581 x cm

  • A screen is separated from a double-slit source by a distance L. When light of wavelength...

    A screen is separated from a double-slit source by a distance L. When light of wavelength 563 nm is incident on the double slit, the separation distance between adjacent bright fringes on the screen is 0.0370 mm. When instead, 500 nm light is used, what is the separation distance (in mm) between adjacent bright fringes?

  • A student performs a double-slit experiment using a monochromatic light source with a wavelength of 5.00...

    A student performs a double-slit experiment using a monochromatic light source with a wavelength of 5.00 ´ 10–7 m. The pattern appears on a screen 150 cm away and the bright fringes are 0.40 cm apart. If the wavelength of the light used is changed to 7.50 ´ 10–7 m, what would the average distance between bright fringes become? a. 0.15 cm d. 0.60 cm b. 0.20 cm e. 1.5 m c. 0.27 cm

  • 1. You shine light of wavelength 500nm through a double slit with a slit separation of...

    1. You shine light of wavelength 500nm through a double slit with a slit separation of 100pm. You then shine the same light on a single slit with width a. You notice that the second dark fringe for both experiments are at the same location. (a) Find the width a of the single slit. (b) Suppose you are shining the light on a screen 1.5m from the slits. For both experiments, find the locations of the first three dark fringes...

  • In a Young's Double Slit experiment, the slit separation d is 0.12 mm. When red light...

    In a Young's Double Slit experiment, the slit separation d is 0.12 mm. When red light of wavelength 666 nm is used, the resulting interference pattern appears on a distant screen, with the third order bright fringe located at a distance y of 45 mm as measured from the central bright fringe. Calculate the distance (in m) between the slits and the screen. Please quote your answer to two decimal places. The answer is 2.70m, show your work.

  • In a Young’s double slit arrangement the screen is 1.0 m away from the double slits...

    In a Young’s double slit arrangement the screen is 1.0 m away from the double slits which are 1.8 mm apart. If light of 546 nm wavelength is used, find the separation of the fringes on the screen. A glass chamber filled with air is placed before the upper slit S 2. The air is then replaced with a gas, whereupon the fringe pattern is seen to be displaced by 14 bright fringes. If the chamber’s internal length is 16...

  • A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes...

    A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen when the slits are illuminated with a laser of wavelength 633 nm, what should be the distance to the screen from the slits? answer choices: 0.42 m 0.63m 0.77m 0.81m 0.92

  • A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes...

    A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen when the slits are illuminated with a laser of wavelength 633 nm, what should be the distance to the screen from the slits? Group of answer choices 0.42 m 0.63 m 0.77 m 0.81 m 0.92 m
