Four electric currents, equal in magnitude are arranged at the corners of a square as shown...

Question

Question

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Four electric currents, equal in magnitude are arranged at the corners of a square as shown...

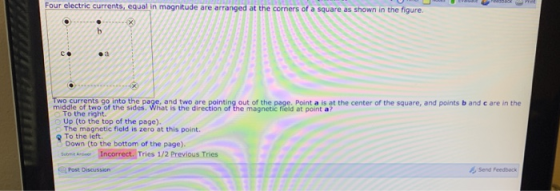

Four electric currents, equal in magnitude are arranged at the corners of a square as shown in the figure. Two currents go into the page, and two are pointing out of the page. Point a is at the center of the square, and points b and c are in the middle of two of the sides. What is the direction of the magnetic field at point a? Up (to the top of the page) O To the right To the...
Four electric currents, equal in magnitude are arranged at the corners of a square as shown...

Four electric currents, equal in magnitude are arranged at the corners of a square as shown in the figure. b a Two currents go into the page, and two are pointing out of the page. Point a is at the center of the square, and points b and c are in the middle of two of the sides. What is the direction of the magnetic field at point a? To the left. To the right. Down (to the bottom of...
Four electric currents, equal in magnitude are arranged at the corners of a square as shown...

Four electric currents, equal in magnitude are arranged at the corners of a square as shown in the figure. Two currents go into the page, and two are pointing out of the page. Point a is at the center of the square, and points b and c are in the middle of two of the sides. What is the direction of the magnetic field at point a? What is the direction of the magnetic field at point b? ·a с.

Four point charges of equal magnitude are arranged at the corners of a square as shown...

Four point charges of equal magnitude are arranged at the corners of a square as shown in the figure. Positive charges are indicated by "+" and negative charges are indicated by "-". What is the direction of the electric field at point b? - B + + - Up (to the top of the page). Down (to the bottom of the page) To the right. The electric field is zero at this point. To the left.
Four point charges of equal magnitude are arranged at the corners of a square as shown...

Four point charges of equal magnitude are arranged at the corners of a square as shown in the fiqure. Positive charges are indicated by "+" and negative chargés are indicated by "-". Select the only true statement about the electric potential at points a, b and c o The electric potential equals zero at point b, but not at points a and c The electric potential equals zero at points a, b and c The electric potential equals zero at...
Four point charges of equal magnitude but differing signs are arranged at the corners of a square, as shown in the figure.

Four point charges of equal magnitude but differing signs are arranged at the corners of a square, as shown in the figure. The electric field E and the potential V at the center of the square are

Four point charges of equal magnitude are arranged at the corners of a square as shown...

Four point charges of equal magnitude are arranged at the corners of a square as shown in the figure. Positive charges are indicated by "+" and negative charges are indicated by "-". What is the direction of the magnetic field at point b? What is the direction of the magnetic field at point c?
Four point charges of equal magnitude are arranged at the corners of a square as shown...

Four point charges of equal magnitude are arranged at the corners of a square as shown in the figure. Positive charges are indicated by "+" and negative charges are indicated by "-". Select the only true statement about the electric potential at points a, b and c. : The electric potential equals zero at points a, b and c. The electric potential equals zero at none of these points. The electric potential equals zero at point c, but not at...
help Three long, straight wires carrying equal currents are arranged at the corners of a square...

help Three long, straight wires carrying equal currents are arranged at the corners of a square as shown below. What arrow best represents the direction of the total magnetic field at the bottom-left corner of the square? All A В. ا11 م C.

please answer both questions and show work please Four point charges of equal magnitude are arranged...

please answer both questions and show work please Four point charges of equal magnitude are arranged at the corners of a square as shown in the figure. Positive charges are indicated by "+" and negative charges are indicated by "-" Select the only true statement about the electric potential at points a, b and c o The electric potential equals zero at points a and c, but not at point b O The electric potential equals zero at points a,...
