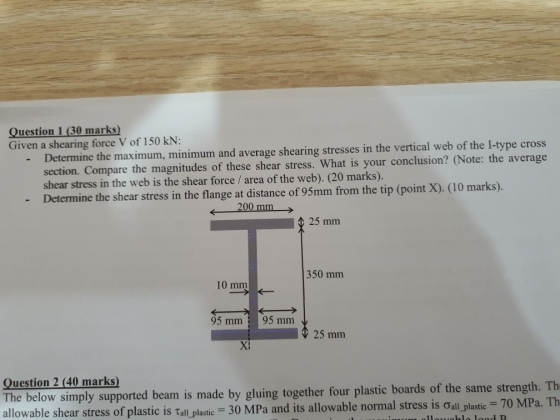

Given a shearing force V of 150kN:
-Determine the maximum, minimum and average shearing stresses in
the vertical web of the I-type cross section. Compare the
magnitudes of these shear stresses. What is your conclusion? (Note:
the average shear stress in the web is the shear force/area of the
web)
-Determine the shear stress in the flange at a distance of 95mm
from the tip (point X).

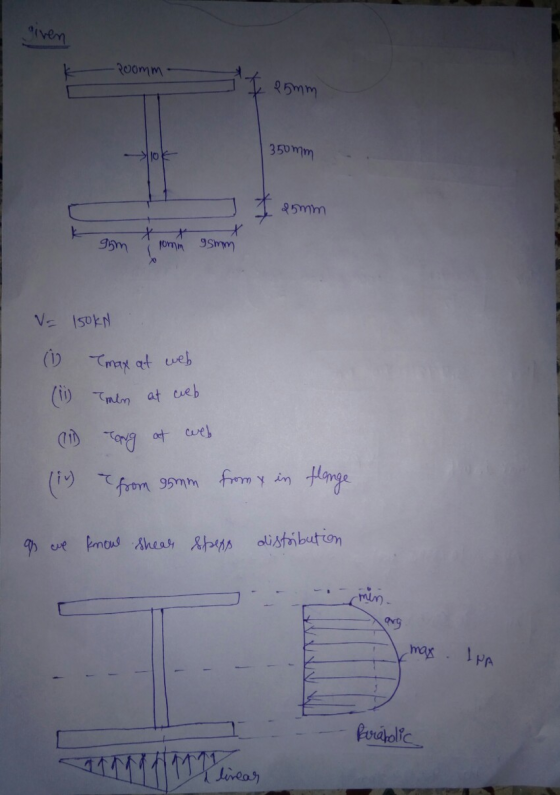

Homework Answers
Add Answer to:
Given a shearing force V of 150kN:
-Determine the maximum, minimum and average shearing stresses in...
The internal shear force at a certain section of a steel beam is V = 205...
The internal shear force at a certain section of a steel beam is V = 205 KN. The beam cross section shown in the figure has dimensions of ty = 21 mm, b = 285 mm, d = 410 mm, and = 14 mm. Determine: (a) the shear stress at point A, which is located at y = 75 mm below the centroid of the wide-flange shape. (b) the maximum horizontal shear stress in the wide-flange shape. YA by Below,...
The internal shear force at a certain section of a steel beam is V = 240...
The internal shear force at a certain section of a steel beam is V = 240 kN. The beam cross section shown in the figure has dimensions of t; = 18 mm, by = 305 mm, d = 374 mm, and t = 11 mm. Determine: (a) the shear stress at point A, which is located at y; = 74 mm below the centroid of the wide-flange shape. (b) the maximum horizontal shear stress in the wide-flange shape. To VA...
The internal shear force at a certain section of a steel beam is V = 205...
The internal shear force at a certain section of a steel beam is V = 205 kN. The beam cross section shown in the figure has dimensions of ty = 21 mm, by = 285 mm, d = 410 mm, and is = 14 mm. Determine: (a) the shear stress at point. A, which is located at yA = 75 mm below the centroid of the wide-lange shape. (b) the macimum horizontal shear stress in the wide-flange shape. ЈА by...
The internal shear force at a certain section of a steel beam is V = 210...
The internal shear force at a certain section of a steel beam is
V = 210 kN . The beam cross section shown in the figure has
dimensions of t f = 17 mm , b f = 290 mm , d = 406 mm , and t w =
10 mm . Determine:
(a) the shear stress at point A, which is located at y
A = 78 mm below the centroid of the wide-flange shape.
(b) the maximum...
The internal shear force at a certain section of a steel beam is V=185 kN. The...
The internal shear force at a certain section of a steel beam is
V=185 kN. The beam cross section shown in the figure has dimensions
of tf=17 mm, bf=300 mm, d=394 mm, and tw=10 mm. Determine:
(a) the shear stress at point A, which is located at
yA=71 mm below the centroid of the wide-flange shape.
(b) the maximum horizontal shear stress in the wide-flange
shape.
The internal shear force at a certain section of a steel beam is V=...
For the given state of stress, determine the normal and shearing stresses exerted on the oblique...
For the given state of stress, determine the normal and shearing stresses exerted on the oblique face of the shaded triangular element shown. Use a method of analysis based on the equilibrium of that element. Take X = 100 MPa. 60 MPa 45 MPa The normal stress exerted on the oblique face of the shaded triangular element is MPa. The shear stress exerted on the oblique face of the shaded triangular element is MPa.
2. Draw Shear Force and Bending Moment Diagram (use your preferred method). Determine Maximum Ten...
2. Draw Shear Force and Bending Moment Diagram (use your preferred method). Determine Maximum Tensile and Compressive Stresses due to bending, state where on the beam these occur. For the mid-point between A and B, determine shear stress at neutral axis; 2" from the top of the flange; at the junction between web and flange and on the top of the flange for the cross-section. Plot of the bending stress and shear stress distribution diagram across the cross section of...
How do you find the total shear force in the web? Would appreciate if the solution...
How do you find the total shear force in the web?
Would appreciate if the solution would be shown in steps.
Thanks!
Example 4 A beam of wide-flange shape is subjected to a vertical shear force V=45 KN. The cross-sectional dimensions of the beam are b=165 mm, t=7.5 mm, h=320 mm, and h =290 mm. Determine the maximum shear stress, minimum shear stress, and total shear force in the web. 330 mm 17.4 MPa 200 mm 1 = 75 mm...
M15.3 Principal stresses in a rectangular tube scenes The rectangular tube is subjected to a transverse shear force of...
M15.3 Principal stresses in a rectangular tube scenes The rectangular tube is subjected to a transverse shear force of V = 230 kN and a bending moment of M = 530 kN-m, each acting in the directions shown. Determine the bending stress, the transverse shear stress magnitude, the principal stresses, and the maximum shear stress magnitude acting at location H. У Он (MPa) H 550 mm TH (MPa) 65 mm Op1 (MPa) X Op2 (MPa) 12 mm ITmax (MPa) wall...
Please show work. M1.13 Force based on inclined plane stresses scenes a 500 P 40 mm a The bar has a 40 mm by 20 mm recta...
Please show work.
M1.13 Force based on inclined plane stresses scenes a 500 P 40 mm a The bar has a 40 mm by 20 mm rectangular cross section. The allowable normal and shear stresses on inclined surface a-a must be limited to 55 MPa and 30 MPa, respectively. Determine the magnitude of the maximum axial force P that can be P (kN) (MPa) applied to the bar, and determine the actual normal and shear stresses acting on inclined plane...
The internal shear force at a certain section of a steel beam is V = 205 KN. The beam cross section shown in the figure has dimensions of ty = 21 mm, b = 285 mm, d = 410 mm, and = 14 mm. Determine: (a) the shear stress at point A, which is located at y = 75 mm below the centroid of the wide-flange shape. (b) the maximum horizontal shear stress in the wide-flange shape. YA by Below,...
The internal shear force at a certain section of a steel beam is V = 240 kN. The beam cross section shown in the figure has dimensions of t; = 18 mm, by = 305 mm, d = 374 mm, and t = 11 mm. Determine: (a) the shear stress at point A, which is located at y; = 74 mm below the centroid of the wide-flange shape. (b) the maximum horizontal shear stress in the wide-flange shape. To VA...
The internal shear force at a certain section of a steel beam is V = 205 kN. The beam cross section shown in the figure has dimensions of ty = 21 mm, by = 285 mm, d = 410 mm, and is = 14 mm. Determine: (a) the shear stress at point. A, which is located at yA = 75 mm below the centroid of the wide-lange shape. (b) the macimum horizontal shear stress in the wide-flange shape. ЈА by...
The internal shear force at a certain section of a steel beam is
V = 210 kN . The beam cross section shown in the figure has
dimensions of t f = 17 mm , b f = 290 mm , d = 406 mm , and t w =
10 mm . Determine:
(a) the shear stress at point A, which is located at y
A = 78 mm below the centroid of the wide-flange shape.
(b) the maximum...
The internal shear force at a certain section of a steel beam is
V=185 kN. The beam cross section shown in the figure has dimensions
of tf=17 mm, bf=300 mm, d=394 mm, and tw=10 mm. Determine:
(a) the shear stress at point A, which is located at
yA=71 mm below the centroid of the wide-flange shape.
(b) the maximum horizontal shear stress in the wide-flange
shape.
The internal shear force at a certain section of a steel beam is V=...
For the given state of stress, determine the normal and shearing stresses exerted on the oblique face of the shaded triangular element shown. Use a method of analysis based on the equilibrium of that element. Take X = 100 MPa. 60 MPa 45 MPa The normal stress exerted on the oblique face of the shaded triangular element is MPa. The shear stress exerted on the oblique face of the shaded triangular element is MPa.
2. Draw Shear Force and Bending Moment Diagram (use your preferred method). Determine Maximum Tensile and Compressive Stresses due to bending, state where on the beam these occur. For the mid-point between A and B, determine shear stress at neutral axis; 2" from the top of the flange; at the junction between web and flange and on the top of the flange for the cross-section. Plot of the bending stress and shear stress distribution diagram across the cross section of...
How do you find the total shear force in the web?
Would appreciate if the solution would be shown in steps.
Thanks!
Example 4 A beam of wide-flange shape is subjected to a vertical shear force V=45 KN. The cross-sectional dimensions of the beam are b=165 mm, t=7.5 mm, h=320 mm, and h =290 mm. Determine the maximum shear stress, minimum shear stress, and total shear force in the web. 330 mm 17.4 MPa 200 mm 1 = 75 mm...
M15.3 Principal stresses in a rectangular tube scenes The rectangular tube is subjected to a transverse shear force of V = 230 kN and a bending moment of M = 530 kN-m, each acting in the directions shown. Determine the bending stress, the transverse shear stress magnitude, the principal stresses, and the maximum shear stress magnitude acting at location H. У Он (MPa) H 550 mm TH (MPa) 65 mm Op1 (MPa) X Op2 (MPa) 12 mm ITmax (MPa) wall...
Please show work.
M1.13 Force based on inclined plane stresses scenes a 500 P 40 mm a The bar has a 40 mm by 20 mm rectangular cross section. The allowable normal and shear stresses on inclined surface a-a must be limited to 55 MPa and 30 MPa, respectively. Determine the magnitude of the maximum axial force P that can be P (kN) (MPa) applied to the bar, and determine the actual normal and shear stresses acting on inclined plane...
