# A plane takes off from an airport and flies to town A, located d1 = 305...

A plane takes off from an airport and flies to town A, located

d1 = 305 km

from the airport in the direction 20.0° north of east. The plane then flies to town B, located

d2 = 245 km

at 30.0° west of north from town A. Use graphical methods to determine the distance and direction from town B to the airport. (Enter the distance in km and the direction in degrees south of west.)

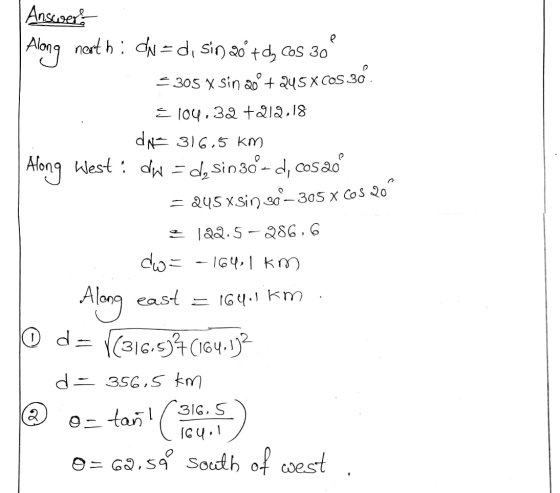

Answer #1
