Given a receive power of 10E-6 mW and a noise power in decibels of [N]= -123.5dBm,...
Given a receive power of 10E-6 mW and a noise power in decibels of [N]= -123.5dBm, determine the decibel SNR value referenced to 1mW.
Please show work
a. [SNR] = -50 dBm – 123.5 dBm = -173.5 dBm
b. [SNR] = 10E-6mW – (-123.5 dBm) = 124 dBm
c. [SNR] = -50 dBm – (-123.5 dBm) = 73.5 dBm
d. [SNR] = 50 dBm – (-123.5 dBm) = +173.5 dBm

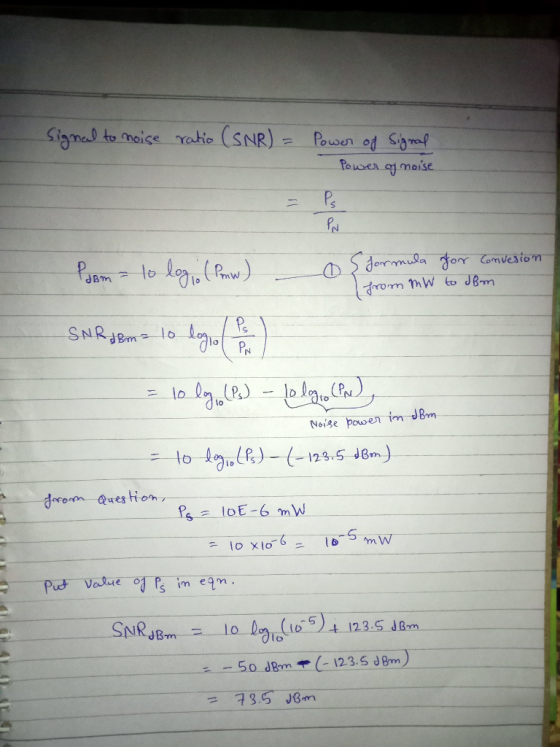

Homework Answers
Add Answer to:
Given a receive power of 10E-6 mW and a noise power in decibels
of [N]= -123.5dBm,...
