Identify all the forces acting on the objects, draw a pictorial representation and then draw a...

Identify all the forces acting on the objects, draw a pictorial representation and then draw a free body diagram for each of the following...
1. An elevator, suspended by a cable, speeds up as it moves upward from the ground.

2. Bobby straps a small model rocket to a block of ice and shoots it across the smooth surface of a frozen lake. Friction is negligible.

3. A tow rope pulls a skier up a snow covered hill at a constant speed. Friction is present in this case.

PLEASE ANSWER QUESTIONS FOR ALL THREE SCENARIOS!
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

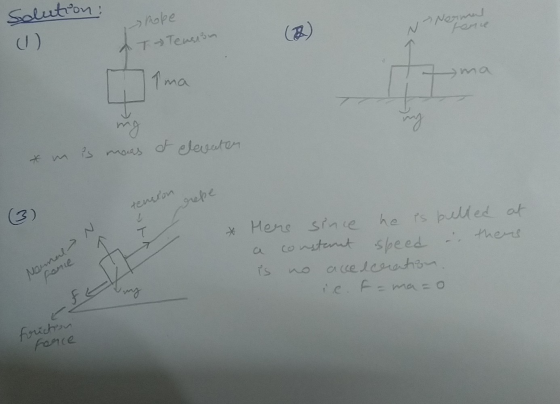

Answer #1

0 0
