Two known forces F1 = 2.80 N at 76.0 o below the positive x-axis and F2...

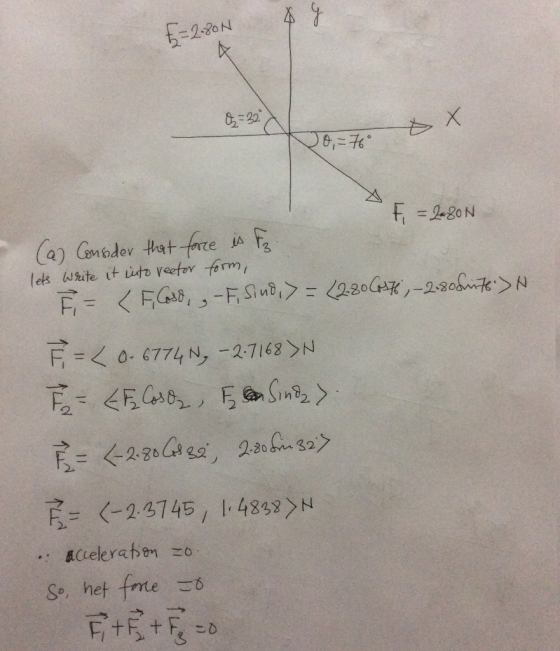

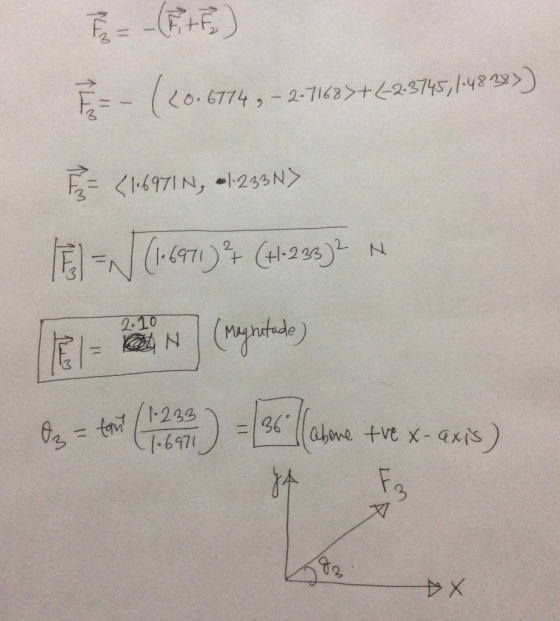

Two known forces F1 = 2.80 N at 76.0 o below the positive x-axis and F2 = 2.80 N at 32.0 o above the negative x-axis are acting on an object. (a) What is the magnitude of the third force F3 so that the acceleration of the object is zero?
Homework Answers
Add Answer to:
Two known forces F1 = 2.80 N at 76.0 o
below the positive x-axis and F2...
Two known forces F1 = 2.80 N at 76.0 o below the positive x-axis and F2...
Two known forces F1 = 2.80 N at 76.0 o below the positive x-axis and F2 = 2.80 N at 32.0 o above the negative x-axis are acting on an object. (a) What is the magnitude of the third force F3 so that the acceleration of the object is zero?
Two known forces F1 = 2.95 N at 80.0° below the positive x-axis and F2 =...
Two known forces F1 = 2.95 N at 80.0° below the positive x-axis and F2 = 2.50 N at 40.0° below the negative x-axis are acting on an object. What is the magnitude of the third force F3 so that the acceleration of the object is zero?
Two known forces F1 = 2.50 N at 74.0° below the +x axis and F2 =...
Two known forces F1 = 2.50 N at 74.0° below the +x axis and F2 = 2.50 N at 37.0° below the –x axis are acting on an object. What is the magnitude of the third force F3 so that the acceleration of the object is zero?
A 10 kg object is subjected to two forces F1 and F2. F1 has a magnitude...
A 10 kg object is subjected to two forces F1 and F2. F1 has a magnitude of 20 N and acts straight upward and F2 has a magnitude of 30 N at 30 degrees below the horizontal from the positive x axis. Find the acceleration of the object. A third force F3 is applied so that the object is in static equilibrium. Find F3.
Three forces act on an object, with force F2 acting in the positive x direction. (a)...
Three forces act on an object, with force F2 acting in the positive x direction. (a) Find the magnitude of the net force acting on the object? (b) Find the direction of the net force. The angle is measured from the positive x axis. (c) Find the fourth force that a person would have to exert on the object to make the net force equal to zero. F1=11.0N at an angle of 40 degrees above the horizontal F2=12.0N F3=10.0N along...
Two forces, F1 and F2, act at a point
Two forces, F1 and F2, act at a point. F1 has a magnitude of 8.20 N and is directed at an angle of 61.0° above, the negative x axis in the second quadrant. F2 has a magnitude of 5.60 N and is directed at an angle of 53.4° below the negative x axis in the third quadrant.Part A What is the x component of the resultant force? Part B What is the y component of the resultant force? Part C What is the...
Two forces, F1 and F2, act at a point, as shown in the picture
Two forces, F1 and F2, act at a point, as shown in the picture. F1 has a magnitude of 9.60 N and is directed at an angle of α = 58.0° above the negative x axis in the second quadrant. F2 has a magnitude of 5.80 N and is directed at an angle of β = 52.5° below the negative x axis in the third quadrant.Part A What is the x component Fx of the resultant force? Part B What is...
There are four forces acting on the point O as represented below. F1=20 N, F2= 30...
There are four forces acting on the point O as represented
below. F1=20 N, F2= 30 N, F3= 50N, F4= 25 N, and the forces F1, and
F2 are acting along the x- and y-axises, respectively. If Q1=30,
and Q2= 40, what is the net force at the point O?
F3 3 Q2 F FA
Two forces, F1 and F2, act at a point, as shown in the picture. (Figure 1)...
Two forces, F1 and F2, act at a point, as
shown in the picture. (Figure 1) F1 has a magnitude of
8.40 N and is directed at an angle of a = 59.0 ? above the
negative xaxis in the second quadrant. F2 has a
magnitude of 6.40 N and is directed at an angle of b =
54.1 ? below the negative x axis in the third
quadrant.
a) What is the x component Fx of the resultant
force? Express...
A 10 kg object on a frictionless table is subjected to two horizontal forces, F1 and...
A 10 kg object on a frictionless table is subjected to two horizontal forces, F1 and F2, with magnitudes F1 = 22 N and F2 = 38 N, as shown in Figure 4-28. 10kg 30 Figure 4-28 (a) Find the acceleration a of the object (0.3 (b) A third force F3 is applied so that the object is in static equilibrium. Find F3 x i)m/s2 i1.64545 X (-41 x i) N |-32.909
A 10 kg object on a frictionless table...
There are four forces acting on the point O as represented
below. F1=20 N, F2= 30 N, F3= 50N, F4= 25 N, and the forces F1, and
F2 are acting along the x- and y-axises, respectively. If Q1=30,
and Q2= 40, what is the net force at the point O?
F3 3 Q2 F FA
Two forces, F1 and F2, act at a point, as
shown in the picture. (Figure 1) F1 has a magnitude of
8.40 N and is directed at an angle of a = 59.0 ? above the
negative xaxis in the second quadrant. F2 has a
magnitude of 6.40 N and is directed at an angle of b =
54.1 ? below the negative x axis in the third
quadrant.
a) What is the x component Fx of the resultant
force? Express...
A 10 kg object on a frictionless table is subjected to two horizontal forces, F1 and F2, with magnitudes F1 = 22 N and F2 = 38 N, as shown in Figure 4-28. 10kg 30 Figure 4-28 (a) Find the acceleration a of the object (0.3 (b) A third force F3 is applied so that the object is in static equilibrium. Find F3 x i)m/s2 i1.64545 X (-41 x i) N |-32.909
A 10 kg object on a frictionless table...
