If the bolt is preloaded to 12 kips, and an ultimate external load of 13 kips...
If the bolt is preloaded to 12 kips, and an ultimate external load of 13 kips is applied to the joint, determine (a) the margin of safety against joint separation, and (b) the minimum margin of safety in the bolt if the bolt is a Grade 8 SAE bolt.

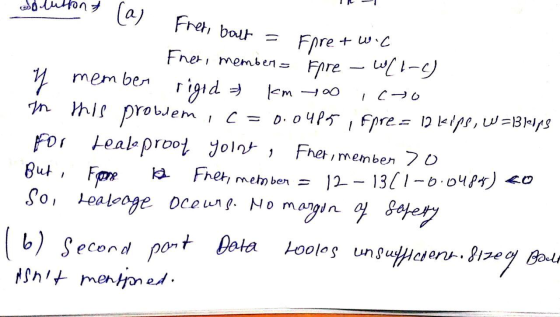

Joint stiffness constant C=0.0485
Homework Answers
Add Answer to:
If the bolt is preloaded to 12 kips, and an ultimate external
load of 13 kips...
Required information For a bolted assembly with six bolts, the stiffness of each bolt is kb=1.8...
Required information For a bolted assembly with six bolts, the stiffness of each bolt is kb=1.8 Mibflin and the stiffness of the members is km=16 Mlbflin per bolt. An external load of 80 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use 1/2 in-13 UNC grade 8 bolts with rolled threads. Assume the bolts are preloaded to 75 percent of the proof load. Determine the yielding...
need help on all parts please and thank you ! Required information For a bolted assembly...
need help on all parts please and thank you
! Required information For a bolted assembly with six bolts, the stiffness of each bolt is kb = 1.8 Mlbt/in and the stiffness of the members is km- 13 Mibf/in per bolt. An external load of 80 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use 1/2 in-13 UNC grade 8 bolts with rolled threads. Assume the...
4) [30 pts] Dynamic bolt factor of safety For a bolted assembly with N = 6...
4) [30 pts] Dynamic bolt factor of safety For a bolted assembly with N = 6 bolts, the stiffness of each bolt is kn = 2 Mibflin and the stiffness of the members is km = 13 Mlbf/in per bolt. A repeated external load of W = 76 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use in-13 UNC grade 8 bolts with rolled threads. Assume...
4) [30 pts] Dynamic bolt factor of safety For a bolted assembly with N = 6...
4) [30 pts] Dynamic bolt factor of safety For a bolted assembly with N = 6 bolts, the stiffness of each bolt is ko = 2 Mibflin and the stiffness of the members is km = 13 Mlbf/in per bolt. A repeated external load of W = 76 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use / in-13 UNC grade 8 bolts with rolled threads....
Required Information For a bolted assembly with six bolts, the stiffness of each bolt is kb...
Required Information For a bolted assembly with six bolts, the stiffness of each bolt is kb - 24 Mibf/in and the stiffness of the members is km 13 Mlbflin per bolt. An external load of 80 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use 1/2 in-13 UNC grade 8 bolts with rolled threads. Assume the bolts are preloaded to 75 percent of the proof load....
PLEASE PLEASE BE SURE THE ANSWER IS RIGHT, THANKS Required information For a bolted assembly with...
PLEASE PLEASE BE SURE THE
ANSWER IS RIGHT, THANKS
Required information For a bolted assembly with six bolts, the stiffness of each bolt is kb = 2.6 Mlbf/in and the stiffness of the members is km = 15 Mibf/in per bolt. An external load of 80 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use 1/2 in-13 UNC grade 8 bolts with rolled threads. Assume the...
**Use Shigley's Mechanical Engineering Design, McGraw-Hill textbook as a reference Problem 4: For a bolted assembly,...
**Use Shigley's Mechanical
Engineering Design, McGraw-Hill textbook as a reference
Problem 4: For a bolted assembly, the stiffness of each bolt is k, = 5MIbf/in and the stiffness of the members is k,m= 15MIbf/in per bolt. The joint is subject to occasional disassembly for maintenance and should be preloaded accordantly. A fluctuating external load is applied to the entire joint with Pa= 100kips and Pnia= 20 kips. Assume the load is equally distributed to all the bolts. It has been...
Problem 2 For a bolted assembiy with six bolts, the stiffness of each bo is k,...
Problem 2 For a bolted assembiy with six bolts, the stiffness of each bo is k, 3 Mibfin and the stiff- ness of the members is km 12 MIbf/in per bolt. An external load of 80 kips is applied to the ntire joint. Assume the load is cqually distributed to all the bolts. I has been determined to usen-13 UNC grade 8 bolts with rolled thrcads. Assume the boits are preloaded to 75 per- cent of the proof load. (a)...
Please answer this question throughly. Thanks. For a bolted assembly with six bolts, the stiffness of...
Please answer this question throughly. Thanks.
For a bolted assembly with six bolts, the stiffness of each bolt is kb = 3M1bf/in and the stiffness of the members is km 12Mlbf/in per bolt. An external load of 80 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use in-13 UNC grade 8 bolts with rolled threads. Assume the bolts are preloaded to 75 percent of the proof...
The material is steel. hence the ultimate strength can be found.
the
material is steel. hence the ultimate strength can be found.
131- (3 marks) Figure below shows a bolted joint subjected to an external force P that fluctuates from 0 to 7 kips. The steel bolt specification is 5/8"-11 UNC, SAE grade 5 material with rolled threads. The clamped members are steel of length 1.25 in each (with a total length of 2.5 in). Plain wide washers are utilized at both ends of the bolt. [a]. Using the Goodman line,...
Required information For a bolted assembly with six bolts, the stiffness of each bolt is kb=1.8 Mibflin and the stiffness of the members is km=16 Mlbflin per bolt. An external load of 80 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use 1/2 in-13 UNC grade 8 bolts with rolled threads. Assume the bolts are preloaded to 75 percent of the proof load. Determine the yielding...
need help on all parts please and thank you
! Required information For a bolted assembly with six bolts, the stiffness of each bolt is kb = 1.8 Mlbt/in and the stiffness of the members is km- 13 Mibf/in per bolt. An external load of 80 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use 1/2 in-13 UNC grade 8 bolts with rolled threads. Assume the...
4) [30 pts] Dynamic bolt factor of safety For a bolted assembly with N = 6 bolts, the stiffness of each bolt is kn = 2 Mibflin and the stiffness of the members is km = 13 Mlbf/in per bolt. A repeated external load of W = 76 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use in-13 UNC grade 8 bolts with rolled threads. Assume...
4) [30 pts] Dynamic bolt factor of safety For a bolted assembly with N = 6 bolts, the stiffness of each bolt is ko = 2 Mibflin and the stiffness of the members is km = 13 Mlbf/in per bolt. A repeated external load of W = 76 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use / in-13 UNC grade 8 bolts with rolled threads....
Required Information For a bolted assembly with six bolts, the stiffness of each bolt is kb - 24 Mibf/in and the stiffness of the members is km 13 Mlbflin per bolt. An external load of 80 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use 1/2 in-13 UNC grade 8 bolts with rolled threads. Assume the bolts are preloaded to 75 percent of the proof load....
PLEASE PLEASE BE SURE THE
ANSWER IS RIGHT, THANKS
Required information For a bolted assembly with six bolts, the stiffness of each bolt is kb = 2.6 Mlbf/in and the stiffness of the members is km = 15 Mibf/in per bolt. An external load of 80 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use 1/2 in-13 UNC grade 8 bolts with rolled threads. Assume the...
**Use Shigley's Mechanical
Engineering Design, McGraw-Hill textbook as a reference
Problem 4: For a bolted assembly, the stiffness of each bolt is k, = 5MIbf/in and the stiffness of the members is k,m= 15MIbf/in per bolt. The joint is subject to occasional disassembly for maintenance and should be preloaded accordantly. A fluctuating external load is applied to the entire joint with Pa= 100kips and Pnia= 20 kips. Assume the load is equally distributed to all the bolts. It has been...
Problem 2 For a bolted assembiy with six bolts, the stiffness of each bo is k, 3 Mibfin and the stiff- ness of the members is km 12 MIbf/in per bolt. An external load of 80 kips is applied to the ntire joint. Assume the load is cqually distributed to all the bolts. I has been determined to usen-13 UNC grade 8 bolts with rolled thrcads. Assume the boits are preloaded to 75 per- cent of the proof load. (a)...
Please answer this question throughly. Thanks.
For a bolted assembly with six bolts, the stiffness of each bolt is kb = 3M1bf/in and the stiffness of the members is km 12Mlbf/in per bolt. An external load of 80 kips is applied to the entire joint. Assume the load is equally distributed to all the bolts. It has been determined to use in-13 UNC grade 8 bolts with rolled threads. Assume the bolts are preloaded to 75 percent of the proof...
the
material is steel. hence the ultimate strength can be found.
131- (3 marks) Figure below shows a bolted joint subjected to an external force P that fluctuates from 0 to 7 kips. The steel bolt specification is 5/8"-11 UNC, SAE grade 5 material with rolled threads. The clamped members are steel of length 1.25 in each (with a total length of 2.5 in). Plain wide washers are utilized at both ends of the bolt. [a]. Using the Goodman line,...
