build CMOS circuit for this boolean expression [ (NOT B) AND (D) ] with the usage...

Question

Question

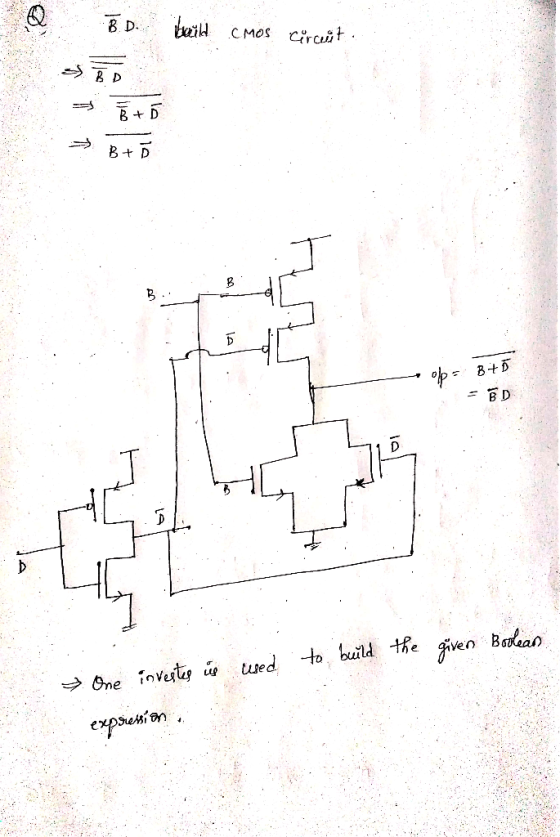

build CMOS circuit for this boolean expression [ (NOT B) AND (D) ] with the usage of one inverter connected to the input D

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2
