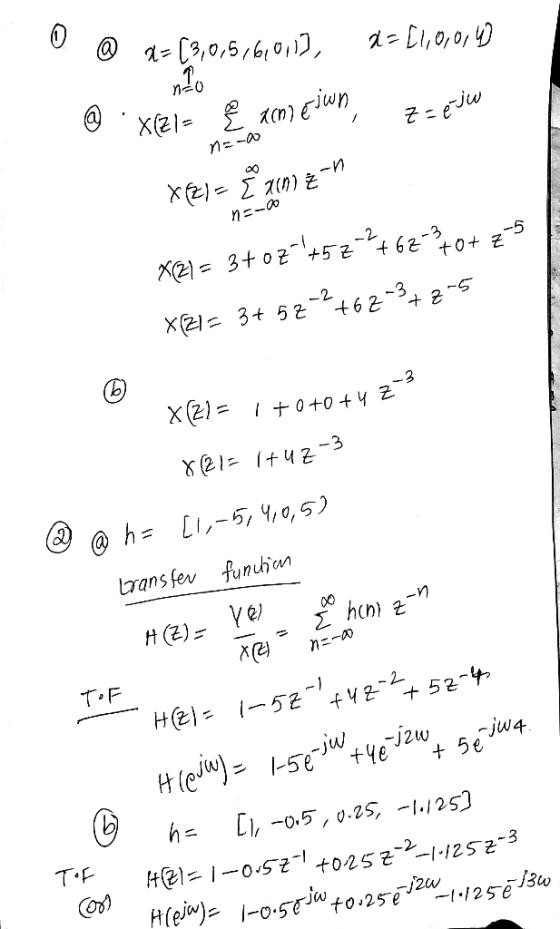

1. Determine the z-transforms of the following sequences:
(a) x = [3, 0, 5, 6, 0, 1]
(b) x = [1, 0, 0, 4]
2. Compute the transfer fuctions for the following impulse responses:
(a) h = [1, −5, 4, 0, 5]
(b) h = [1, −0.5, 0.25, −1.125]

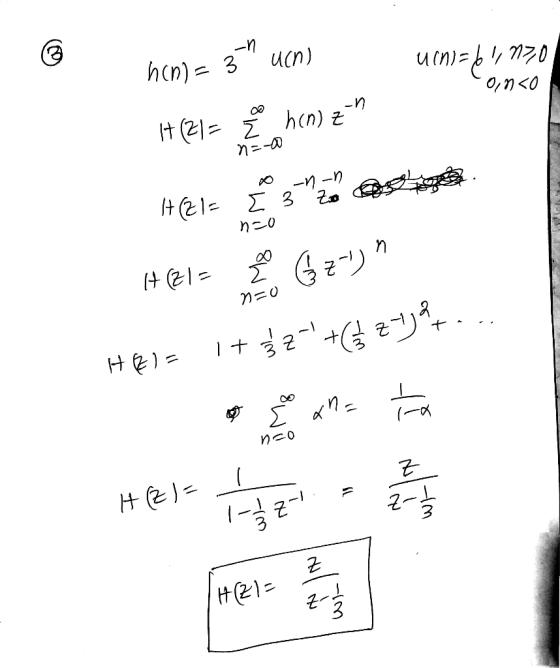

3. If h(n) = 3^ -n for n ≥ 0, express H(z) as a ratio of polynomials.

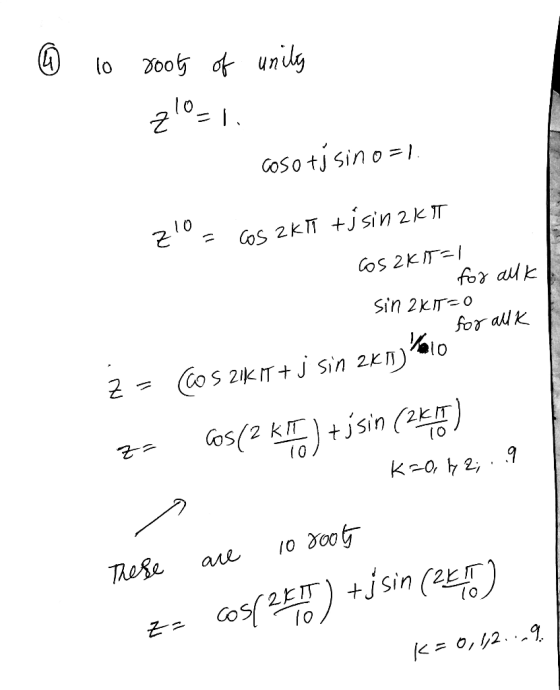

4. Find the 10 roots of unity, that is, solve z^10 − 1 = 0.
5. What are the values of a1 and b1 for the sine function filter we created running at 8 kHz that will produce a 750 Hz sine wave?
Homework Answers
