Assume a microgrid with an inertia constant of 1.4 seconds (i.e., the value of H). Assume...

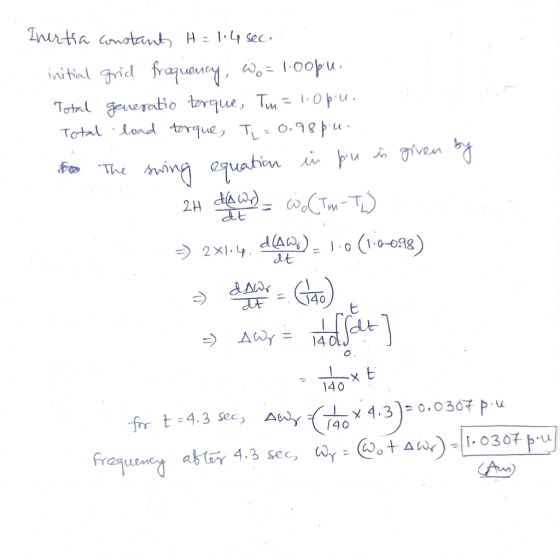

Assume a microgrid with an inertia constant of 1.4 seconds (i.e., the value of H).
Assume the total generation torque is 1.00 pu, but a fault has caused the total load torque to drop to 0.98 pu.
If the grid frequency starts at 1 pu, what will it be after 4.3 seconds? (Answer in pu to three decimal places.)
