Two capacitors are connected in series to a 50-V battery. The capacitance C1 = 5 μF...

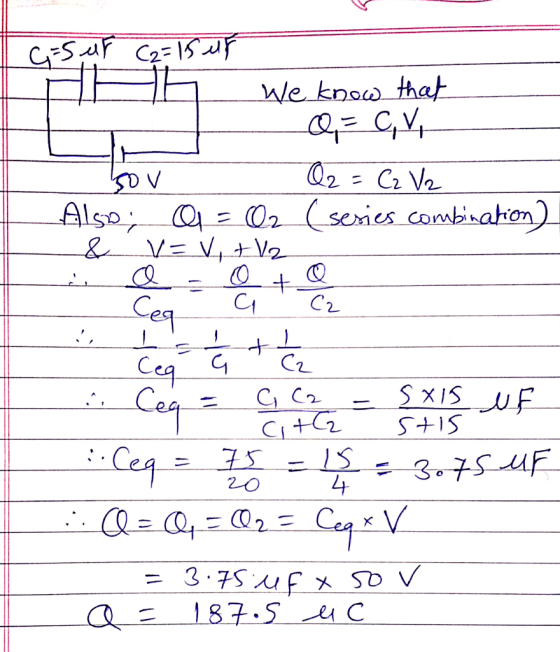

Two capacitors are connected in series to a 50-V battery. The capacitance C1 = 5 μF and the capacitance C2 = 15 μF.
a. What is the charge on capacitor C1?
(The answer is 187.5 μC I just don't know how to arrive at that answer)
Homework Answers
Add Answer to:
Two capacitors are connected in series to a 50-V battery. The
capacitance C1 = 5 μF...
Two capacitors, C1 = 26.0 μF and C2=37.0 μF, are connected in series, and a 9.0-v battery is connected across them.
Two capacitors, C1 = 26.0 μF and C2=37.0 μF, are connected in series, and a 9.0-v battery is connected across them. (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor(b) Find the energy stored in each individual capacitor(c) If the same capacitors were connected in parallel, what potential difference would be required across them so that the combination stores the same energy as in part (a)? Which capacitor stores more energy in this situation, C1 or C2?
Two capacitors, C1 = 4.41 μF and C2 = 13.9 μF, are connected in parallel, and...
Two capacitors, C1 = 4.41 μF and C2 = 13.9 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
Two capacitors, C1 = 4.35 μF and C2 = 12.5 μF, are connected in parallel, and...
Two capacitors, C1 = 4.35 μF and C2 = 12.5 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
Two capacitors, C1 = 4.74 μF and C2 = 10.8 μF, are connected in parallel, and...
Two capacitors, C1 = 4.74 μF and C2 = 10.8 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
Two capacitors, C1 = 19.0 μF and C2 = 38.0 μF, are connected in series, and...
Two capacitors, C1 = 19.0 μF and C2 = 38.0 μF, are connected in series, and a 21.0-V battery is connected across them. (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor. equivalent capacitance μF total energy stored J (b) Find the energy stored in each individual capacitor. energy stored in C1 J energy stored in C2 J Show that the sum of these two energies is the same as the energy found in part (a)....
Two capacitors, C1 = 28.0 μF and C2 = 35.0 μF, are connected in series, and...
Two capacitors, C1 = 28.0 μF and C2 = 35.0 μF, are connected in series, and a 9.0-V battery is connected across them. (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor. equivalent capacitance ______ μF total energy stored _______ J (b) Find the energy stored in each individual capacitor. energy stored in C1 ______ J energy stored in C2 ______ J Show that the sum of these two energies is the same as the energy...
16.14 Two capacitors are connected in series with an 30 V battery. The capacitance of capacitor...
16.14 Two capacitors are connected in series with an 30 V battery. The capacitance of capacitor C1 is 12 µF and the capacitor C2 is unknown. The charge on capacitor C2 is 140 µC. a) What is the equivalent capacitance? b) What is the capacitance of capacitor C2? c) What is the voltage of each capacitor?
Two capacitors, C1 = 16.0 μF and C2 = 32.0 μF, are connected in series, and...
Two capacitors, C1 = 16.0 μF and C2 = 32.0 μF, are connected in series, and a 24.0-V battery is connected across them (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor equivalent capacitance total energy stored (b) Find the energy stored in each individual capacitor. energy stored in C energy stored in C2 Show that the sum of these two energies is the same as the energy found in part (a). Will this equality always...
Two capacitors,C1 = 19.0 μF andC2 = 45.0 μF, are connected in series,and...
Two capacitors,C1 = 19.0 μF andC2 = 45.0 μF, are connected in series, and a 21.0-V battery is connected across them.(a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor.equivalent capacitance 13.3 μFtotal energy stored 2.93e-3 J(b) Find the energy stored in each individual capacitor.(c) Show that the sum of these two energies is the same as the energy found in part (a). Will this equality always be true, or does it depend on the number of capacitors and their...
Two capacitors, C1 = 4.92 μF and C2 = 14.1 μF, are connected in parallel, and...
Two capacitors, C1 = 4.92 μF and
C2 = 14.1 μF, are connected in
parallel, and the resulting combination is connected to a 9.00-V
battery.
(a) Find the equivalent capacitance of the combination.
(b) Find the potential difference across each capacitor.
(c) Find the charge stored on each capacitor.
*PLEASE ANSWER ALL PARTS TO A, B, AND C CLEARLY* THANK YOU FOR
YOUR HELP IN ADVANCE!
Safari File Edit View History Bookmarks Window Help 璽台 교 8令49%DE Tue 4:41:04 PM...
Two capacitors, C1 = 16.0 μF and C2 = 32.0 μF, are connected in series, and a 24.0-V battery is connected across them (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor equivalent capacitance total energy stored (b) Find the energy stored in each individual capacitor. energy stored in C energy stored in C2 Show that the sum of these two energies is the same as the energy found in part (a). Will this equality always...
Two capacitors, C1 = 4.92 μF and
C2 = 14.1 μF, are connected in
parallel, and the resulting combination is connected to a 9.00-V
battery.
(a) Find the equivalent capacitance of the combination.
(b) Find the potential difference across each capacitor.
(c) Find the charge stored on each capacitor.
*PLEASE ANSWER ALL PARTS TO A, B, AND C CLEARLY* THANK YOU FOR
YOUR HELP IN ADVANCE!
Safari File Edit View History Bookmarks Window Help 璽台 교 8令49%DE Tue 4:41:04 PM...
