A 110-μF capacitance is initially charged to 1010 V . At t = 0, it is...

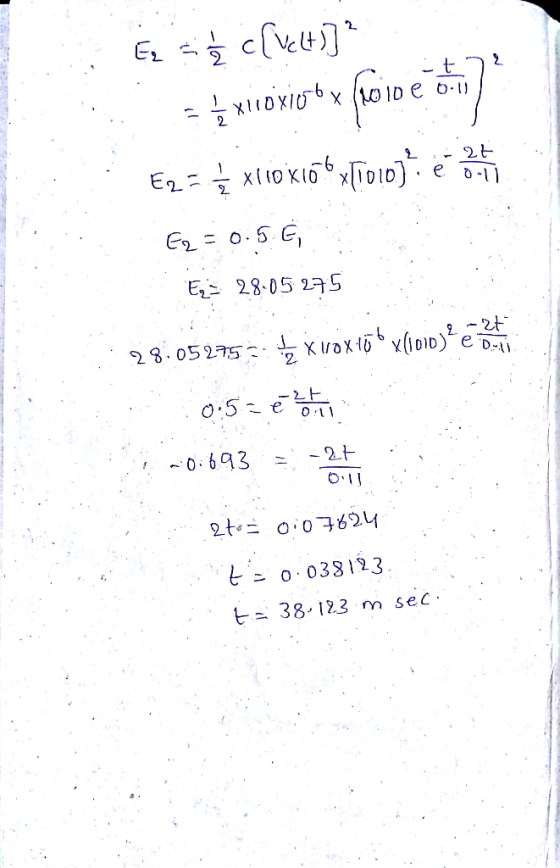

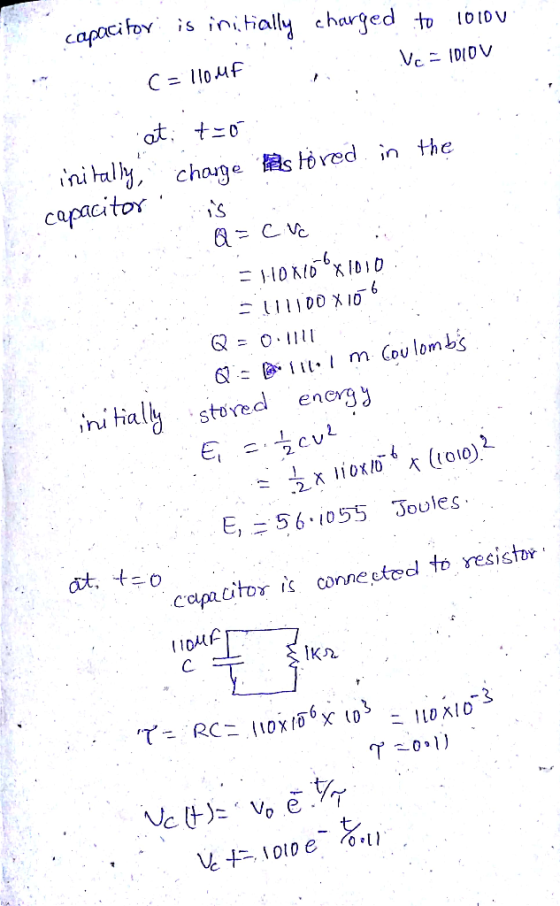

A 110-μF capacitance is initially charged to 1010 V . At t = 0, it is connected to a 1-kΩ resistance. At what time t2 has 50 percent of the initial energy stored in the capacitance been dissipated in the resistance?
Homework Answers
Add Answer to:
A 110-μF capacitance is initially charged to 1010 V . At t = 0,
it is...
A 130-μF capacitance is initially charged to 1100 V . At t = 0, it is...
A 130-μF capacitance is initially charged to 1100 V . At t = 0, it is connected to a 1-kΩ resistance. At what time t2 has 50 percent of the initial energy stored in the capacitance been dissipated in the resistance? t2= ?
A 160-μF capacitance is initially charged to 1190 V . At t = 0, it is...
A 160-μF capacitance is initially charged to 1190 V . At t = 0, it is connected to a 1-kΩ resistance. At what time t2 has 50 percent of the initial energy stored in the capacitance been dissipated in the resistance?
A 120-HF capacitance is initially charged to 1230 V. Att-0, it is connected to a 1-k...
A 120-HF capacitance is initially charged to 1230 V. Att-0, it is connected to a 1-k Ω resistance Part A At what time t2 has 50 percent of the initial energy stored in the capacitance been dissipated in the resistance? Express your answer to four significant figures and include the appropriate units. View Available Hint(s) 1 Value Ims Submit evious Answe X Incorrect; Try Again; 5 attempts remaining
P 4.4-Enhanced-with Hints and Feedback Review Part A A 190-puF capacitance is initially charged to 1280...
P 4.4-Enhanced-with Hints and Feedback Review Part A A 190-puF capacitance is initially charged to 1280 V.At t0, it is connected to a 1-k2 resistance. At what time t2 has 50 percent of the initial energy stored in the capacitance been dissipated in the resistance? Express your answer to four significant figures and include the appropriate units. View Available Hint(s) t2Value Units Submit Provide Feedback
A 1.15 μF capacitor that is initially uncharged is connected in series with a 6.87 kΩ...
A 1.15 μF capacitor that is initially uncharged is connected in series with a 6.87 kΩ resistor and an emf source with 98.8 V and negligible internal resistance. The circuit is completed at t = 0. A) Just after the circuit is completed, what is the rate at which electrical energy is being dissipated in the resistor? B) At what value of t is the rate at which electrical energy is being dissipated in the resistor equal to the rate...
9. For the given circuit, if the initial voltage across the capacitor is vc(0*) = 0,...
9. For the given circuit, if the initial voltage across the capacitor is vc(0*) = 0, find an expression for the voltrage across the capacitor as a function of time and graph voltage versus time. R= 100 k2 w v=100 V uc) C = 0.01 uF 10. If a 100-F capacitance is initially charged to 1000V and at t=0, it is connected to a 1-ka resistance, at what time has 50 percent of the initial energy stored in the capacitance...
A vacuum filled parallel plate capacitor with capacitance 9.00 μF is initially connected to a battery...
A vacuum filled parallel plate capacitor with capacitance 9.00 μF is initially connected to a battery of voltage 3.20 V , thus storing an original charge of 28.8 μC . dielectric constant is 4. what is the final voltage across the capacitor? the answer is NOT 3.20 V. what is the final energy stored in the capacitor? how much charged is stored on the capacitor after the dielectric is inserted? how much energy is stored on the capacitor one the...
A resistor with 820 Ω is connected to the plates of a charged capacitor with capacitance...
A resistor with 820 Ω is connected to the plates of a charged capacitor with capacitance 4.52 μF . Just before the connection is made, the charge on the capacitor is 8.30 mC. What is the energy initially stored in the capacitor? What is the electrical power dissipated in the resistor just after the connection is made? What is the electrical power dissipated in the resistor at the instant when the energy stored in the capacitor has decreased to half...
A 1.15 μF capacitor, initially charged to 13.5 V , discharges when it is connected in...
A 1.15 μF capacitor, initially charged to 13.5 V , discharges when it is connected in series with a resistor. Part A What resistance is necessary to cause the capacitor to have only 37% of its initial charge 2.00 s after starting? (MΩ ) Part B What is the voltage across the capacitor at t = 5 τ if the capacitor is instead charged by the same battery through the same resistor? (v)
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as show...
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as shown below 1 50 kΩ 220HF A stopclock is started and after 10 seconds the switch S is closed Ammeter readings are noted at regular intervals until a time of 80s is shown on the stopclock. The graph below shows how the current in the...
A 120-HF capacitance is initially charged to 1230 V. Att-0, it is connected to a 1-k Ω resistance Part A At what time t2 has 50 percent of the initial energy stored in the capacitance been dissipated in the resistance? Express your answer to four significant figures and include the appropriate units. View Available Hint(s) 1 Value Ims Submit evious Answe X Incorrect; Try Again; 5 attempts remaining
P 4.4-Enhanced-with Hints and Feedback Review Part A A 190-puF capacitance is initially charged to 1280 V.At t0, it is connected to a 1-k2 resistance. At what time t2 has 50 percent of the initial energy stored in the capacitance been dissipated in the resistance? Express your answer to four significant figures and include the appropriate units. View Available Hint(s) t2Value Units Submit Provide Feedback
9. For the given circuit, if the initial voltage across the capacitor is vc(0*) = 0, find an expression for the voltrage across the capacitor as a function of time and graph voltage versus time. R= 100 k2 w v=100 V uc) C = 0.01 uF 10. If a 100-F capacitance is initially charged to 1000V and at t=0, it is connected to a 1-ka resistance, at what time has 50 percent of the initial energy stored in the capacitance...
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as shown below 1 50 kΩ 220HF A stopclock is started and after 10 seconds the switch S is closed Ammeter readings are noted at regular intervals until a time of 80s is shown on the stopclock. The graph below shows how the current in the...
