A 4000 V AC power lines enter a transformer. It wraps 5000 times around one side...

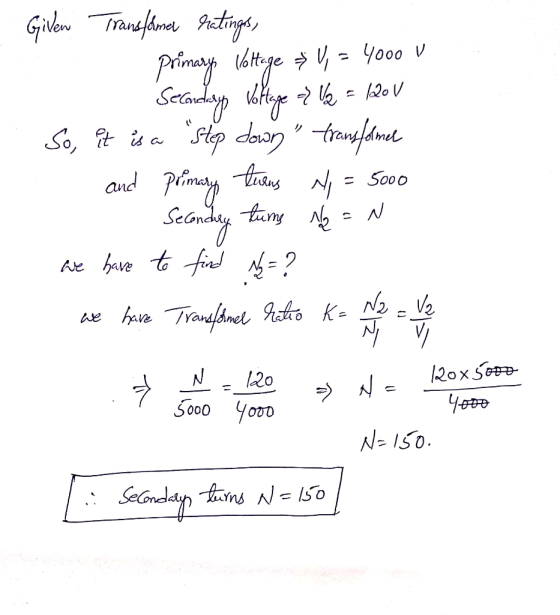

A 4000 V AC power lines enter a transformer. It wraps 5000 times around one side of a iron ring. On the other side of the ring there are N turns of a 120 V AC power line exiting the transformer that will distribute power to a neighborhood. What is the value of N?
Homework Answers
Add Answer to:
A 4000 V AC power lines enter a transformer. It wraps 5000 times
around one side...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage of 120 V to a voltage of 6.00 V. The RMS current delivered to the answering machine is 600 mA. If the primary (input) coil of the transformer has 360 turns, then how many turns are there on the secondary (output) coil? Tries 0/20 What is the power drawn from the electric outlet, if the transformer is assumed to be ideal? Tries 0/20 What...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage of 120 V to a voltage of 5.00 V. The RMS current delivered to the answering machine is 380 mA. If the primary (input) coil of the transformer has 960 turns, then how many turns are there on the secondary (output) coil? Submit Answer Tries 0/20 What is the power drawn from the electric outlet, if the transformer is assumed to be ideal? Submit...
4. Given the power transformer circuit below: a. Given the resistor on the secondary output side...
4. Given the power transformer circuit below: a. Given the resistor on the secondary output side is 100 ohms with a v across it of 40 volts, what is the transformer turns ratio, N? oltage b. What is the resistance '"seen" by the primary winding? c. What is the primary current, Ip? d. What is the secondary current, Is? 120 V ( boh3
a) The DC power supply below is connected to a 110 V RMS, 50 Hz AC...
a) The DC power supply below is connected to a 110 V RMS, 50 Hz AC mains. The transformer has turns ratio N, : N2 = 10 : 1, and the diodes have forward voltage drop 0.7 V, and the regulator has dropout voltage 1.8 V. We require V 5 V. OUT =2 A GND 110 V rms O A R V Va VC 50 Hz N2 N i. Given the transformer has turns ratio Nį: N2 = 10: 1...
The figure below shows an AC source, a transformer with a turns ratio of N1/N2 =...
The figure below shows an AC source, a transformer with a turns
ratio of
N1/N2 =
2.40, a source resistor RS,and a load
resistor RL.
A circuit contains an AC source, two resistors, and a
transformer composed of two coils. The transformer will bridge two
halves of an otherwise disjoint circuit. The left half of the
circuit starts on the left at the AC source labeled
ΔVS, goes up and to the right to a resistor
labeled RS, goes down...
Learning Goal: To find voltages and power in a balanced three-phase circuit. Three identical AC voltage...
Learning Goal: To find voltages and power in a balanced three-phase circuit. Three identical AC voltage sources, each with amplitude 170 V, are connected in a Y configuration to three identical resistances, each 50 , also in a Y configuration. There is also a fourth, neutral line in the circuit (see diagram). The voltage sources are each 120° out of phase from the other two sources R RE R - Part A - Load current What is the RMS current...
transformers
Learning Goal: To understand the concepts explaining the operation of transformers.One of the advantages of alternating current (ac) over direct current (dc) is the ease with which voltage levels can be increased or decreased. Such a need is alwayspresent due to the practical requirements of energy distribution. On the one hand, the voltage supplied to the end users must be reasonably low for safety reasons(depending on the country, that voltage may be 110 volts, 220 volts, or some other value...
An electron (m_p = 9.1 times 10^-31 kg, q_p = -1.6 times 10^-19 C) travels at...
An electron (m_p = 9.1 times 10^-31 kg, q_p = -1.6 times 10^-19 C) travels at 4 times 10^5 m/s in a direction perpendicular to a uniform 3.0 mT magnetic field. What is the diameter of its path? Two long straight wires each carrying a current of 200 A in the same directions are separated by a distance of 40 cm. Calculate the force on a 2m long section of wire. Is the force attractive or repulsive? An electron is...
solve no: 3.14 , 3.16, 3.19 please show each step and solve for beginners 120 Power...
solve no: 3.14 , 3.16, 3.19
please show each step and solve for beginners
120 Power System Analysis 3.12. A single-phase system similar to that shown in Figure 3.11 has two transformers A-B a B-C connected by a line B feeding a load at the receiving end C. The ratings and parame ter values of the components are 500 V/1.5 kV, 9.6 kVA. leakage reactance 5 % 1.2 kV/120 V, 7.2 kVA, leakage reactance 4 % series impedance (0.5 +...
find v belt drive design power select belt type determine shive size (belt speed 4000 ft/min)...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
An AC adapter for a telephone answering machine uses a transformer to reduce the line voltage of 120 V to a voltage of 5.00 V. The RMS current delivered to the answering machine is 380 mA. If the primary (input) coil of the transformer has 960 turns, then how many turns are there on the secondary (output) coil? Submit Answer Tries 0/20 What is the power drawn from the electric outlet, if the transformer is assumed to be ideal? Submit...
4. Given the power transformer circuit below: a. Given the resistor on the secondary output side is 100 ohms with a v across it of 40 volts, what is the transformer turns ratio, N? oltage b. What is the resistance '"seen" by the primary winding? c. What is the primary current, Ip? d. What is the secondary current, Is? 120 V ( boh3
a) The DC power supply below is connected to a 110 V RMS, 50 Hz AC mains. The transformer has turns ratio N, : N2 = 10 : 1, and the diodes have forward voltage drop 0.7 V, and the regulator has dropout voltage 1.8 V. We require V 5 V. OUT =2 A GND 110 V rms O A R V Va VC 50 Hz N2 N i. Given the transformer has turns ratio Nį: N2 = 10: 1...
The figure below shows an AC source, a transformer with a turns
ratio of
N1/N2 =
2.40, a source resistor RS,and a load
resistor RL.
A circuit contains an AC source, two resistors, and a
transformer composed of two coils. The transformer will bridge two
halves of an otherwise disjoint circuit. The left half of the
circuit starts on the left at the AC source labeled
ΔVS, goes up and to the right to a resistor
labeled RS, goes down...
Learning Goal: To find voltages and power in a balanced three-phase circuit. Three identical AC voltage sources, each with amplitude 170 V, are connected in a Y configuration to three identical resistances, each 50 , also in a Y configuration. There is also a fourth, neutral line in the circuit (see diagram). The voltage sources are each 120° out of phase from the other two sources R RE R - Part A - Load current What is the RMS current...
An electron (m_p = 9.1 times 10^-31 kg, q_p = -1.6 times 10^-19 C) travels at 4 times 10^5 m/s in a direction perpendicular to a uniform 3.0 mT magnetic field. What is the diameter of its path? Two long straight wires each carrying a current of 200 A in the same directions are separated by a distance of 40 cm. Calculate the force on a 2m long section of wire. Is the force attractive or repulsive? An electron is...
solve no: 3.14 , 3.16, 3.19
please show each step and solve for beginners
120 Power System Analysis 3.12. A single-phase system similar to that shown in Figure 3.11 has two transformers A-B a B-C connected by a line B feeding a load at the receiving end C. The ratings and parame ter values of the components are 500 V/1.5 kV, 9.6 kVA. leakage reactance 5 % 1.2 kV/120 V, 7.2 kVA, leakage reactance 4 % series impedance (0.5 +...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
