Draw the reaction mechanism of Tri-n-butylamine in NaOH with benzenesulfonyl chloride for the Hinsberg Test. Show...

Question

Question

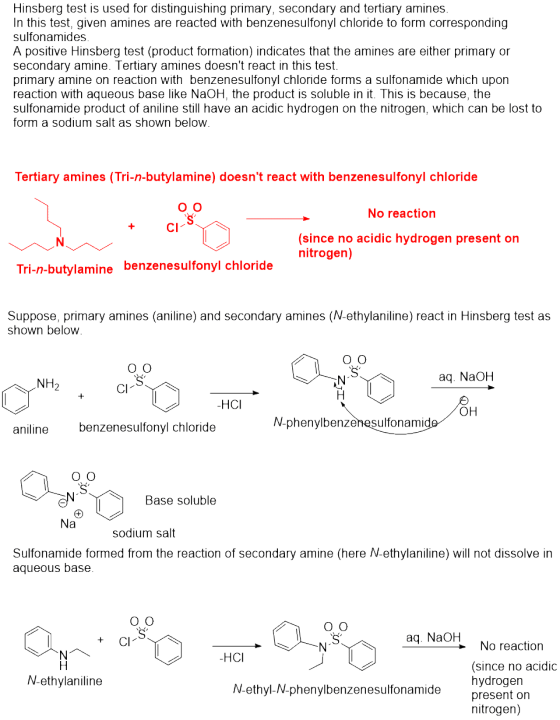

Draw the reaction mechanism of Tri-n-butylamine in NaOH with benzenesulfonyl chloride for the Hinsberg Test. Show electron movement with arrows.

science chemistry

Answer 1

Answer #1

Answer 2
