In a hydraulic lift, there are two circular pistons of radius 0.1 m and 1.5 m....

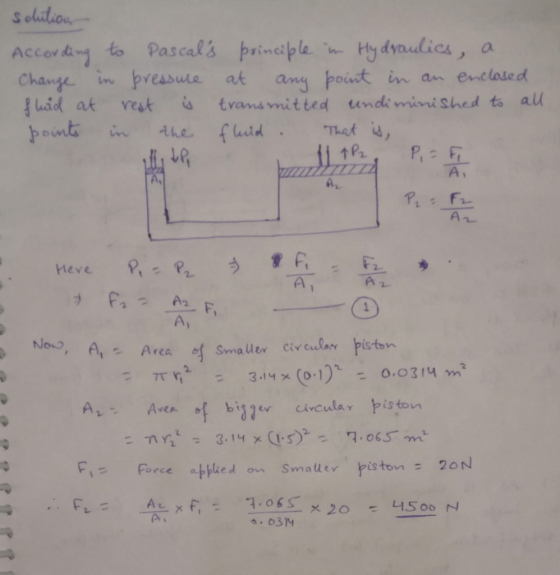

In a hydraulic lift, there are two circular pistons of radius 0.1 m and 1.5 m. If a force of 20 N were applied to the smaller piston, how big of an output force could be achieved?
Homework Answers
Add Answer to:
In a hydraulic lift, there are two circular pistons of radius
0.1 m and 1.5 m....
3. A hydraulic lift with pistons of radius 31 cm and 1.2 m is used to...
3. A hydraulic lift with pistons of radius 31 cm and 1.2 m is used to lift a mass of 625 kg a distance of 2.25 m above ground. What force can the smaller piston have?
Two pistons of a hydraulic lift have radii of 2.2cm and 10.8cm. A mass of 1.71×103kg...
Two pistons of a hydraulic lift have radii of 2.2cm and 10.8cm. A mass of 1.71×103kg is placed on the larger piston. Calculate the minimum downward force needed to be exerted on the smaller piston to hold the larger piston level with the smaller piston.
a hydraulic lift system has a small pison with a radius of 0.0045 m on the...
a hydraulic lift system has a small pison with a radius of 0.0045 m on the left and a larger piston with a radius of 0.084 m on the right which sre connected by a small tube at the bottoms. the two pistons have the same initial height. a 0.13 kg mass is placed on the larger piston on the right. (A) what is the resulting pressure in the fluid as a result of the mass being placed on the...
In a hydraulic lift, the radius of the input piston is 5.0 cm and the radius...
In a hydraulic lift, the radius of the input piston is 5.0 cm and the radius of the output piston is 30.0 cm. (a) If a force of 20.0 N is applied to the input piston, how much weight can the output piston lift? moves a vertical distance of 0.80 cm, then how much does the input piston move? (b) If the output piston ww.ai d ae
Consider a hydraulic lift which has two circular surfaces. The larger circle has radius 5 m...
Consider a hydraulic lift which has two circular surfaces. The larger circle has radius 5 m and we place a 1500kg car there. a) What must be the radius of a smaller circle if we want to lift the car with the force 150 N. b) Now we replace the larger circle by a square with the side 5 m. What is the weight of the car we can lift with the same force 150 N?
The answer is E A 12,000-N car is raised using a hydraulic lift, which consists of...
The answer is E
A 12,000-N car is raised using a hydraulic lift, which consists of a U-tube with arms of unequal areas, filled with oil with a density of 800 kg/m^3 and capped at both ends with tight-fitting pistons. The wider arm of the U-tube has a radius of 18.0 cm and the narrower arm has a radius of 5.00 cm. The car rests on the piston on the wider arm of the U-tube. The pistons are initially at...
A 10,000-N car is raised using a hydraulic lift, which consists of a U-tube with arms...
A 10,000-N car is raised using a hydraulic lift, which consists of a U-tube with arms of unequal areas, filled with oil and capped at both ends with tight-fitting pistons. The wider arm of the U-tube has a radius of 18.0 cm and the narrower arm has a radius of 5.00 cm. The car rests on the piston on the wider arm of the U-tube. The pistons are initially at the same level. What is the initial force that must...
A 14,192-N car is raised using a hydraulic lift, which consists of a U-tube with arms...
A 14,192-N car is raised using a hydraulic lift, which consists of a U-tube with arms of unequal areas, filled with incompressible oll with a density of 900 kg/m3 and capped at both ends with tight-fitting pistons. The wider arm of the U-tube has a radius of 19.3 cm and the narrower arm has a radius of 3 cm. The car rests on the piston on the wider arm of the U-tube. The pistons are initially at the same level....
A 14 500-N car on a hydraulic lift rests on a cylinder with a piston of...
A 14 500-N car on a hydraulic lift rests on a cylinder with a piston of radius 0.100 m. If a connecting cylinder with a piston of 0.050-m radius is driven by compressed air, what force must be applied to this smaller piston in order to lift the car? A. 3.53E+3 N B. 5.80E+1 N C. 4.13E+3 N D. 1.45E+4 N E. 3.63E+3 N
2. The input and output pistons of a hydraulic jack are 4 cm and 12 cm...
2. The input and output pistons of a hydraulic jack are 4 cm and 12 cm in diameter. If a lever has a mechanical advantage of 9 and applied 200 Nof force on the input piston, how many pounds can the jack lift at 75% efficiency? 200 N of Force "MA" 9 12cm ? Newtons 4cm
3. A hydraulic lift with pistons of radius 31 cm and 1.2 m is used to lift a mass of 625 kg a distance of 2.25 m above ground. What force can the smaller piston have?
In a hydraulic lift, the radius of the input piston is 5.0 cm and the radius of the output piston is 30.0 cm. (a) If a force of 20.0 N is applied to the input piston, how much weight can the output piston lift? moves a vertical distance of 0.80 cm, then how much does the input piston move? (b) If the output piston ww.ai d ae
The answer is E
A 12,000-N car is raised using a hydraulic lift, which consists of a U-tube with arms of unequal areas, filled with oil with a density of 800 kg/m^3 and capped at both ends with tight-fitting pistons. The wider arm of the U-tube has a radius of 18.0 cm and the narrower arm has a radius of 5.00 cm. The car rests on the piston on the wider arm of the U-tube. The pistons are initially at...
A 10,000-N car is raised using a hydraulic lift, which consists of a U-tube with arms of unequal areas, filled with oil and capped at both ends with tight-fitting pistons. The wider arm of the U-tube has a radius of 18.0 cm and the narrower arm has a radius of 5.00 cm. The car rests on the piston on the wider arm of the U-tube. The pistons are initially at the same level. What is the initial force that must...
A 14,192-N car is raised using a hydraulic lift, which consists of a U-tube with arms of unequal areas, filled with incompressible oll with a density of 900 kg/m3 and capped at both ends with tight-fitting pistons. The wider arm of the U-tube has a radius of 19.3 cm and the narrower arm has a radius of 3 cm. The car rests on the piston on the wider arm of the U-tube. The pistons are initially at the same level....
2. The input and output pistons of a hydraulic jack are 4 cm and 12 cm in diameter. If a lever has a mechanical advantage of 9 and applied 200 Nof force on the input piston, how many pounds can the jack lift at 75% efficiency? 200 N of Force "MA" 9 12cm ? Newtons 4cm
