The input to an EKG machine contains an EKG signal with an amplitude of 50 ??...

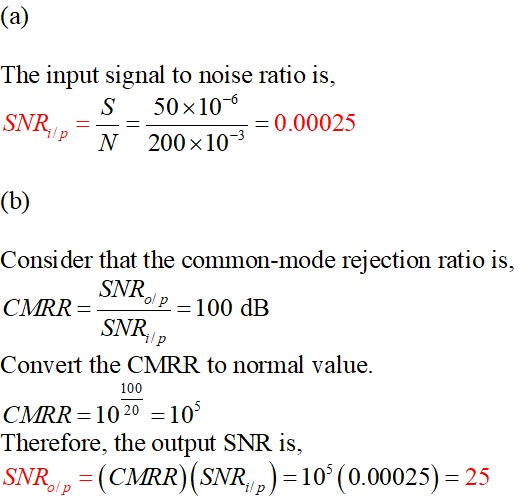

The input to an EKG machine contains an EKG signal with an amplitude of 50 ?? and a common mode noise that can go as high as 200 mV.
a. What is the input SNR?
b. If the CMRR is 100 dB, what is the output SNR?
Homework Answers
