Given a silicon sample of unknown doping. Hall measurement provides the following information: W = 150...

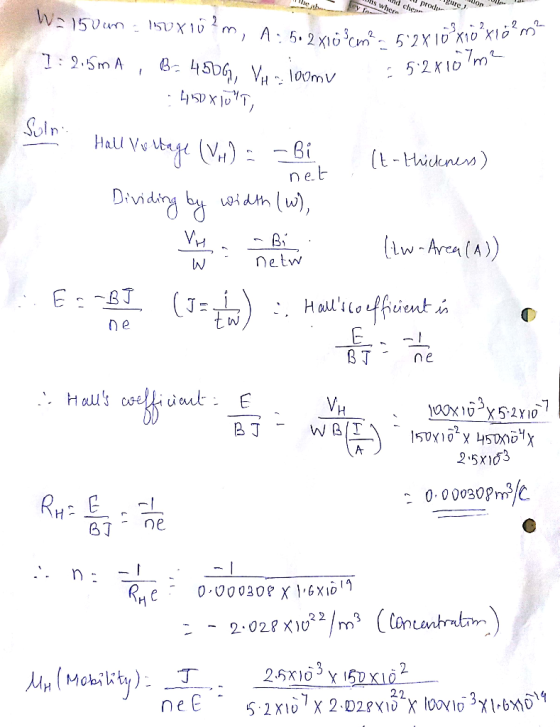

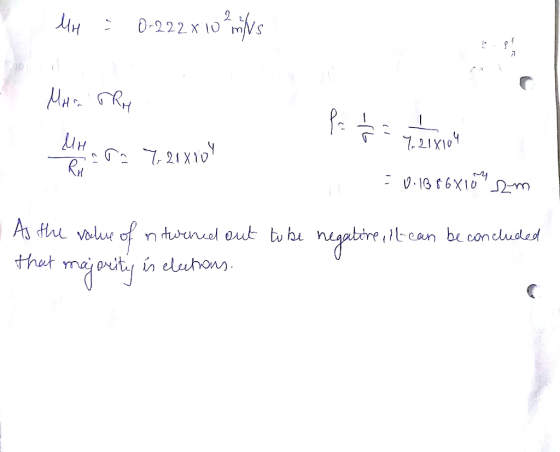

- Given a silicon sample of unknown doping. Hall measurement provides the following information: W = 150 cm, A = 5.2 × 10-3 cm2, I = 2.5 mA and magnetic field is 450 Gauss. If the hall voltage of +100 mV is measured, find the hall coefficient, conductivity type, majority carrier concentration, resistivity and mobility of semiconductor sample.
Homework Answers
