1. Starting 5.0 mm from a department store mirror, Suzanne walks toward the mirror at 1.2...

Question

Question

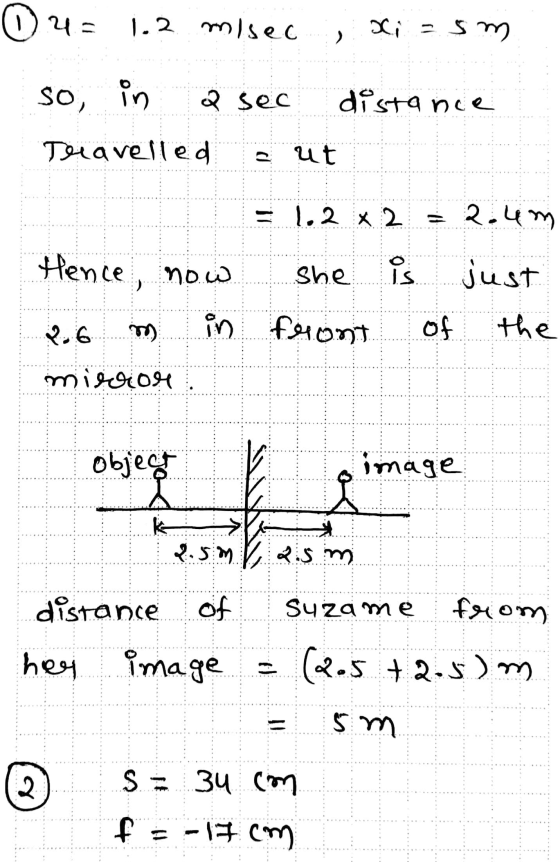

1. Starting 5.0 mm from a department store mirror, Suzanne walks toward the mirror at 1.2 m/sm/s for 2.0 s.

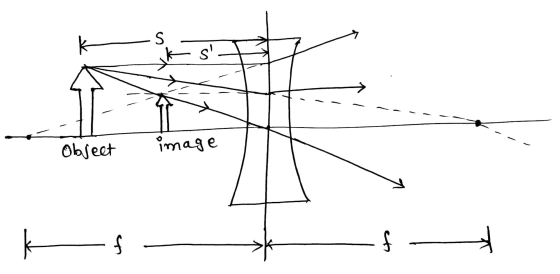

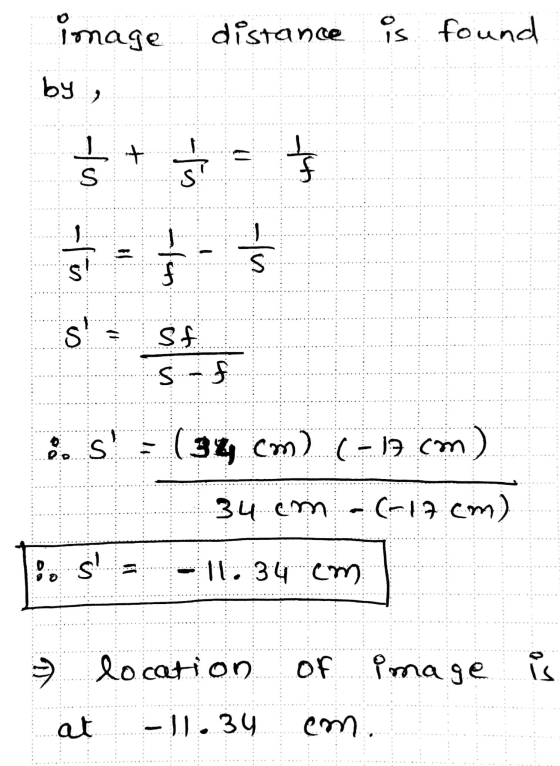

2. An object is 34 cm in front of a diverging lens with a focal length of -17 cm. Use ray tracing to determine the location of the image.

science physics

Answer 1

Answer #1

Answer 2
