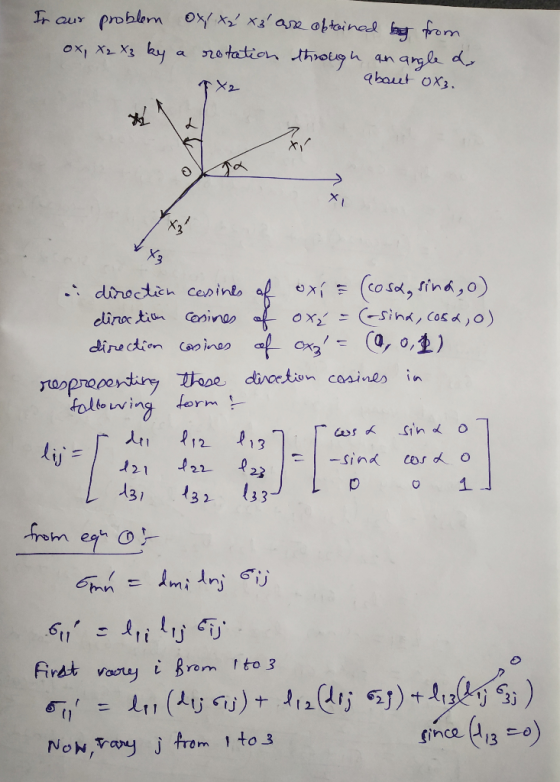

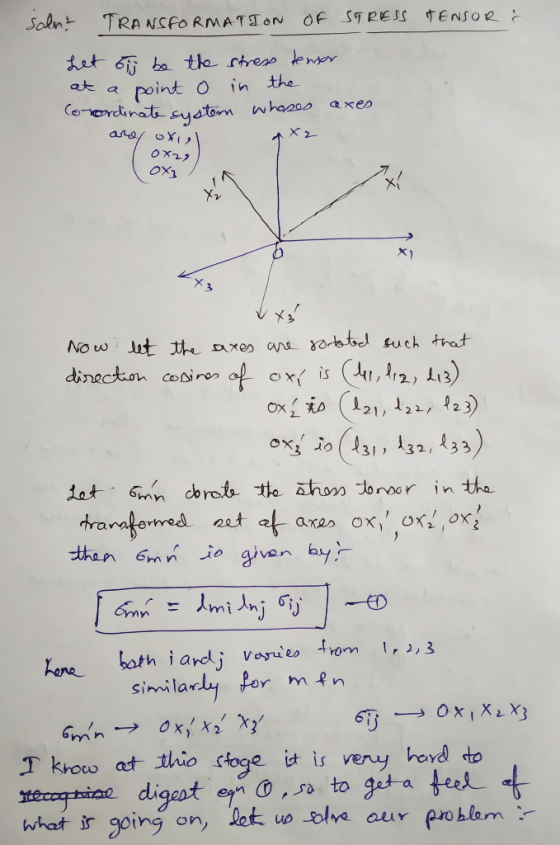

The axes Ox′1x′2x′3are obtained from Ox1x2x3 by a rotation through an angle αabout Ox3. If σ′ij...
The axes Ox′1x′2x′3are obtained from Ox1x2x3 by a rotation through an angle αabout Ox3. If σ′ij and σij are the components of the stress tensor with respect to these axes,show that

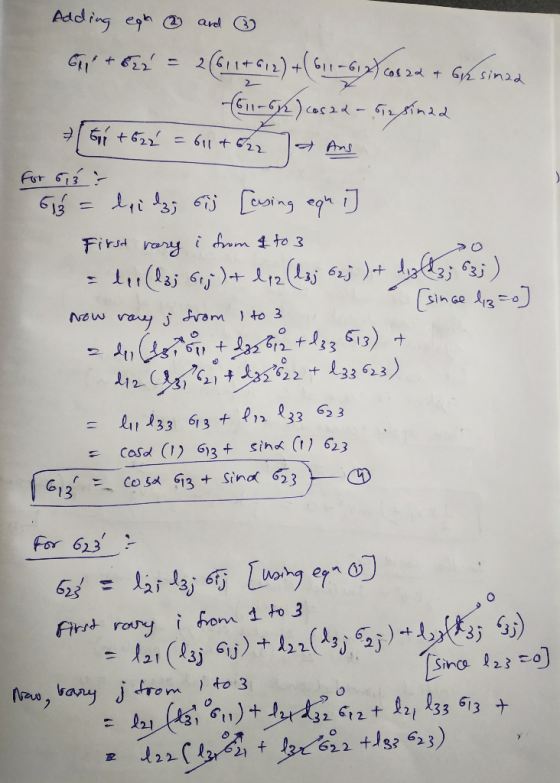

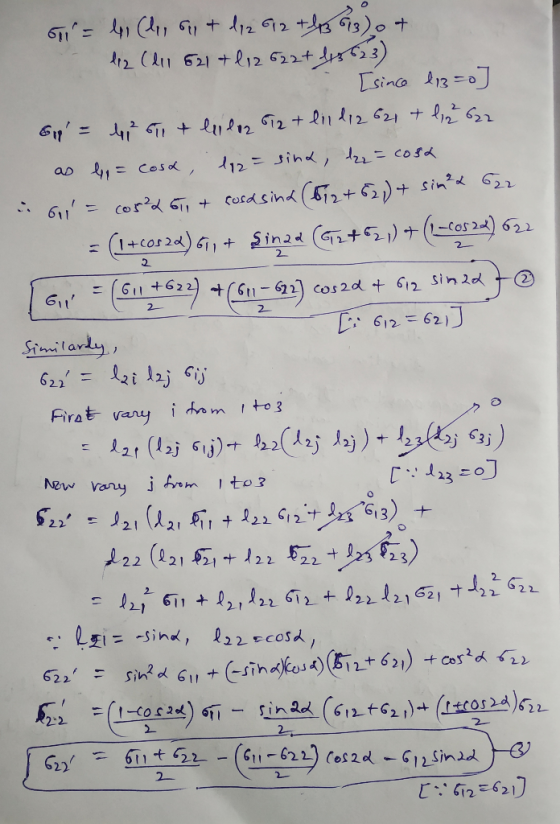

σ′11+σ′22 = σ11 + σ22,

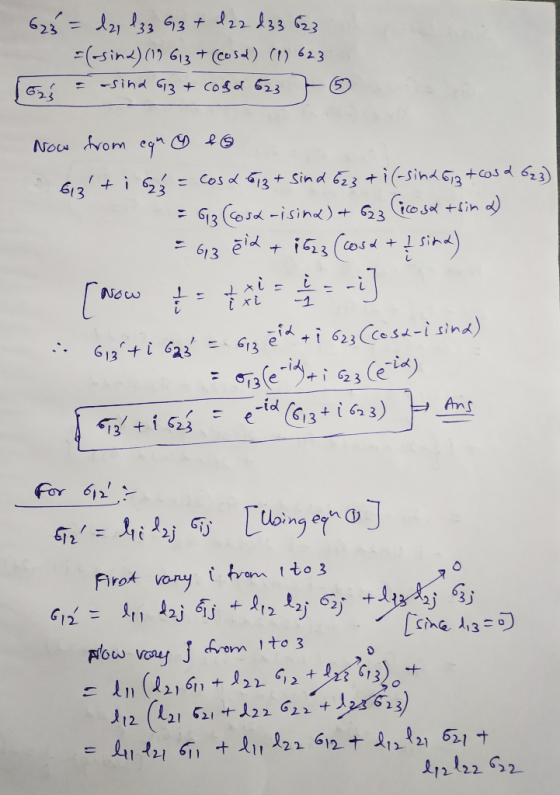

σ′13 + iσ′23 = e−iα(σ13+iσ23)

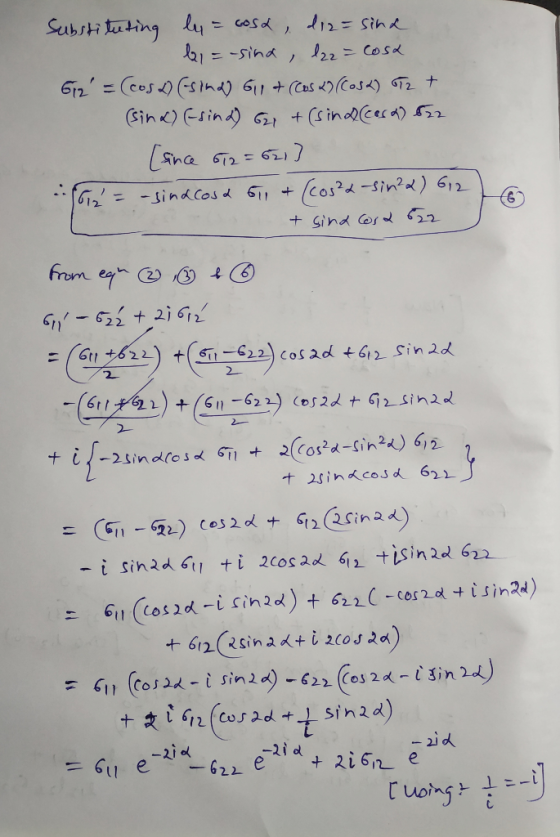

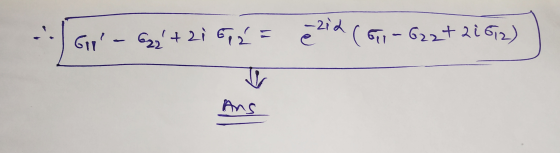

σ′11−σ′22+ 2iσ′12=e−2iα(σ11−σ22+ 2iσ12).
