A force of 60 N is needed to slide a 14 kg block along a ramp...

A force of 60 N is needed to slide a 14 kg block along a ramp inclined at 25 degrees above the horizontal. If the length of the ramp is 4 m, calculate the following: How much work is done sliding the block along the ramp

How much work is done against the force of friction

The IMA of the ramp

The AMA of the ramp

The Efficiency of the ramp

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

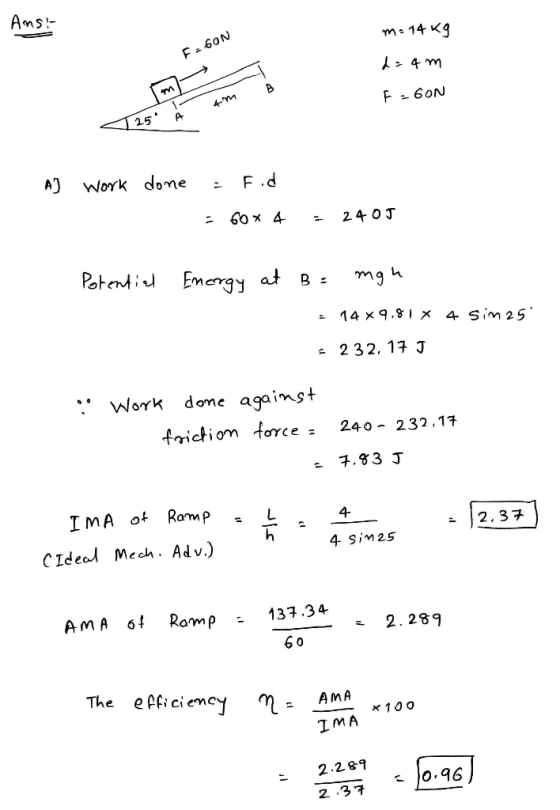

Problem can be solve as below,
