Two reservoirs are joined by three pipes in series; Pipe 1 is 300 mm in diameter...

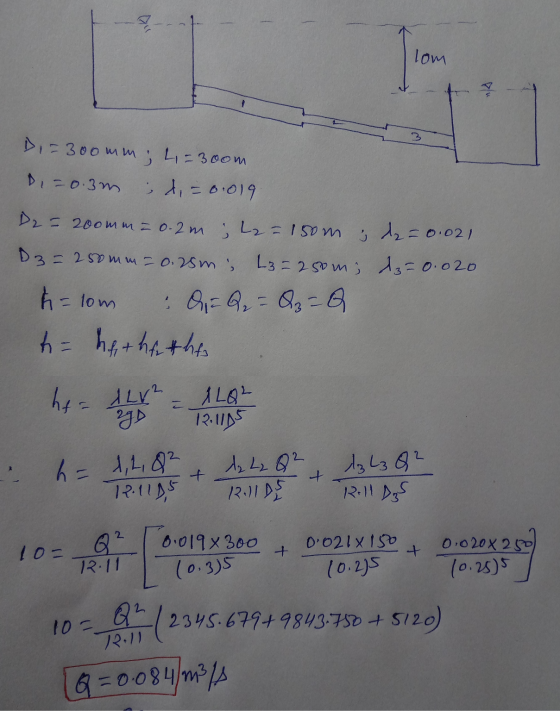

Two reservoirs are joined by three pipes in series; Pipe 1 is 300 mm in diameter and 300 m long and has λ = 0.019; Pipe 2 is 200 mm in diameter, 150 m long and has λ = 0.021; and Pipe 3 is 250 mm in diameter and 250 m long and has λ = 0.020. They are conveying water at 15oC. If the height difference between the top water levels is 10 m, find the flow rate ignoring minor (i.e. local) losses.
Homework Answers
Add Answer to:
Two reservoirs are joined by three pipes in series; Pipe 1 is
300 mm in diameter...
course name hydraulics 1. Two Galvanized iron (e= 0.15 mm) pipes in series connecting two reservoirs....
course name hydraulics
1. Two Galvanized iron (e= 0.15 mm) pipes in series connecting two reservoirs. First pipe is 400 m long and has diameter of 1.0 m (see next figure). The second pipe is 250 m long and has diameter of 0.70 m. The elevation of the water surface in thereservoir B is 50.00 m. The discharge from reservoir A to reservoir B is 1.0 m3/s. Thewater viscosity is 1.5 x 10-6 m/s. A gate valve is installed on...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m and the roughness size is 0.04 mm. The water levels in the two reservoirs are maintained with a difference of 50 m. Determine the discharge through the pipe. Neglect all minor losses. Use the attached Moody diagram for estimation of friction factor. (10 marks) (c) In (b), now include entry loss at the upper reservoir with loss coefficient...
4. Figure 2 shows two reservoirs which are connected by three pipes of different diameters. The...
4. Figure 2 shows two reservoirs which are connected by three pipes of different diameters. The length and diameter of each pipe are given in Table 1. The flow rate in the pipeline is 55 Ls. The entrance and exit from the pipes are sharp and the change between the pipelines in the cross sections is sudden. Assume the friction factor, /for the pipes as 0.01. (a) Analyse all the head losses which occur, giving an expression for each. (7...
Please show full working so I can understand how to do each step. Thank you in advance! Two reservoirs with their water...
Please show full working so I can understand how to do each
step. Thank you in advance!
Two reservoirs with their water levels 15m apart are connected with two pipes in series. The pipe that leaves the upper reservoir is 200mm diameter, 200m long and has a friction factor of 0.003. This pipe then connects to a 100mm diameter pipe that is 300m long with a friction factor of 0.00146. The fittings to consider are: Sudden entrance from tank to...
Two open reservoirs are connected by three galvanized iron pipes in series: L1=300m,D1=200mm; L2=400m, D2=300mm; L3=1200m,...
Two open reservoirs are connected by three galvanized iron pipes in series: L1=300m,D1=200mm; L2=400m, D2=300mm; L3=1200m, D3=450 mm. If the flow is 400 m3/h of water (μ=1 cP,ρ= 1000 kg/m3), determine the difference in elevation of the reservoirs. Neglect any minor friction losses.
39. (a) Water flows under gravity from Reservoir A to Reservoir B first through a 900-m long pipe (pipe a) and then thr...
39. (a) Water flows under gravity from Reservoir A to Reservoir B first through a 900-m long pipe (pipe a) and then through two pipes (b and c) in parallel. The lengths, diameters and friction factors of the pipes are listed in the table. The water level in Reservoir A is always higher than that in Reservoir B by 20 m. Calculate the total discharge between the reservoirs. Neglect all minor losses. (15 marks) (b) Which of pipes b and...
Two pipes in series are connecting the reservoirs with head loss of 10 m. The properties...
Two pipes in series are connecting the reservoirs with
head loss of 10 m. The properties of each pipes are as
follows:
Calculate:
a. Flow rate in pipe no. 2
b. Discharge in pipe
1 Pipe Length Diameter pipe roughness (f) 10 m 15 cm 0.0X (X is last digit of your student number. If your last digit is then X=4) 2 20 cm 0.04 20 m 10 0 2
A 600mm diameter horizontal pipe of length 2km branches into two pipes of 300mm and 450mm...
A 600mm diameter horizontal pipe of length 2km branches into two pipes of 300mm and 450mm diameter, each 1.6km long (Fig. Q5). The 600mm pipe is at an elevation of 30m and connects reservoir A with water level 50m. The two branched pipes connects reservoir B with water level 100m. A pump is installed in the 600mm pipe and causes the flow from A to B. Calculate the required power of the pump to maintain a flow rate of Im®/s...
[Problem 3] Two reservoirs are connected using the piping network shown in the figure. The pipes ...
[Problem 3] Two reservoirs are connected using the piping network shown in the figure. The pipes are commercial steel. water is to be pumped using a pump (efficiency = 70%) that draws 8 kw of electric power from the mains. Ignore minor losses. Determine the flow rate through each pipe and the total flow between the reservoirs. Start with a friction factor of 0.02 for all pipes and use the Haaland equation to calculate updated friction factors. Ignore the length...
Q3 (40 pts): Water is pumped through a 60-m-long, 0.3-m-diameter pipe from a lower reservoir to...
Q3 (40 pts): Water is pumped through a 60-m-long, 0.3-m-diameter pipe from a lower reservoir to a higher reservoir, which has a water surface 10 m above the lower one. When the pump adds 40 kW to the water the flowrate is 0.20 m/s. Assume the following coefficients of minor losses: • Entrance: Kentrance = 0.5 Exit: Kexit = 1 Each elbow: Kelbow = 1.5 • Valve: K= 6 Part A (20 pts) Determine the pipe roughness ε. Part B...
course name hydraulics
1. Two Galvanized iron (e= 0.15 mm) pipes in series connecting two reservoirs. First pipe is 400 m long and has diameter of 1.0 m (see next figure). The second pipe is 250 m long and has diameter of 0.70 m. The elevation of the water surface in thereservoir B is 50.00 m. The discharge from reservoir A to reservoir B is 1.0 m3/s. Thewater viscosity is 1.5 x 10-6 m/s. A gate valve is installed on...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m and the roughness size is 0.04 mm. The water levels in the two reservoirs are maintained with a difference of 50 m. Determine the discharge through the pipe. Neglect all minor losses. Use the attached Moody diagram for estimation of friction factor. (10 marks) (c) In (b), now include entry loss at the upper reservoir with loss coefficient...
4. Figure 2 shows two reservoirs which are connected by three pipes of different diameters. The length and diameter of each pipe are given in Table 1. The flow rate in the pipeline is 55 Ls. The entrance and exit from the pipes are sharp and the change between the pipelines in the cross sections is sudden. Assume the friction factor, /for the pipes as 0.01. (a) Analyse all the head losses which occur, giving an expression for each. (7...
Please show full working so I can understand how to do each
step. Thank you in advance!
Two reservoirs with their water levels 15m apart are connected with two pipes in series. The pipe that leaves the upper reservoir is 200mm diameter, 200m long and has a friction factor of 0.003. This pipe then connects to a 100mm diameter pipe that is 300m long with a friction factor of 0.00146. The fittings to consider are: Sudden entrance from tank to...
39. (a) Water flows under gravity from Reservoir A to Reservoir B first through a 900-m long pipe (pipe a) and then through two pipes (b and c) in parallel. The lengths, diameters and friction factors of the pipes are listed in the table. The water level in Reservoir A is always higher than that in Reservoir B by 20 m. Calculate the total discharge between the reservoirs. Neglect all minor losses. (15 marks) (b) Which of pipes b and...
Two pipes in series are connecting the reservoirs with
head loss of 10 m. The properties of each pipes are as
follows:
Calculate:
a. Flow rate in pipe no. 2
b. Discharge in pipe
1 Pipe Length Diameter pipe roughness (f) 10 m 15 cm 0.0X (X is last digit of your student number. If your last digit is then X=4) 2 20 cm 0.04 20 m 10 0 2
A 600mm diameter horizontal pipe of length 2km branches into two pipes of 300mm and 450mm diameter, each 1.6km long (Fig. Q5). The 600mm pipe is at an elevation of 30m and connects reservoir A with water level 50m. The two branched pipes connects reservoir B with water level 100m. A pump is installed in the 600mm pipe and causes the flow from A to B. Calculate the required power of the pump to maintain a flow rate of Im®/s...
[Problem 3] Two reservoirs are connected using the piping network shown in the figure. The pipes are commercial steel. water is to be pumped using a pump (efficiency = 70%) that draws 8 kw of electric power from the mains. Ignore minor losses. Determine the flow rate through each pipe and the total flow between the reservoirs. Start with a friction factor of 0.02 for all pipes and use the Haaland equation to calculate updated friction factors. Ignore the length...
Q3 (40 pts): Water is pumped through a 60-m-long, 0.3-m-diameter pipe from a lower reservoir to a higher reservoir, which has a water surface 10 m above the lower one. When the pump adds 40 kW to the water the flowrate is 0.20 m/s. Assume the following coefficients of minor losses: • Entrance: Kentrance = 0.5 Exit: Kexit = 1 Each elbow: Kelbow = 1.5 • Valve: K= 6 Part A (20 pts) Determine the pipe roughness ε. Part B...
