Determine whether its linear and/or time invariant: y[n] = -x[n]+4x[n-1]-x[n-2] y[n] = x[n] -2 y[n] =...
Determine whether its linear and/or time invariant:
y[n] = -x[n]+4x[n-1]-x[n-2]
y[n] = x[n] -2
y[n] = x[n] * n^2
Homework Answers
Add Answer to:

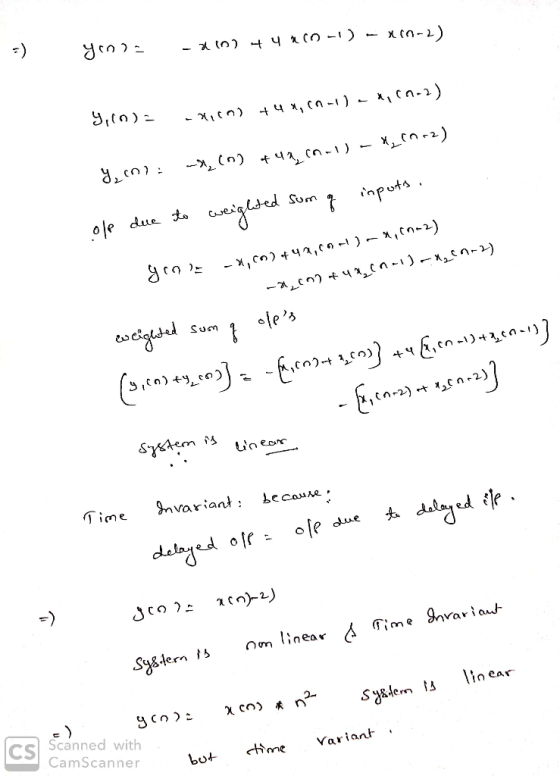

Determine whether its linear and/or time invariant:
y[n] = -x[n]+4x[n-1]-x[n-2]
y[n] = x[n] -2
y[n] =...
The system y[n]= x[n] +8x[n + 1]+x[n +2] is O With memory. Causal, Time-varying and Linear...
The system y[n]= x[n] +8x[n + 1]+x[n +2] is O With memory. Causal, Time-varying and Linear With memory, None Causal, Time-varying and Linear With memory, None Causal, Time-invariant and Linear Memmoryless, None Causal, Time-invariant and Linear With memory, None Causal, Time-invariant and None Linear
The system y[n]= x[n] +8x[n + 1]+x[n +2] is O With memory. Causal, Time-varying and Linear With memory, None Causal, Time-varying and Linear With memory, None Causal, Time-invariant and Linear Memmoryless, None Causal, Time-invariant and Linear...
Test which of the following systems are linear, time-invariant, casual, and stable. (a) y[n] = x[-n]...
Test which of the following systems are linear, time-invariant, casual, and stable. (a) y[n] = x[-n] (Time-Flip) (b) y[n] = log(|x[n]|) (Log-magnitude) (c) y[n] = x[n] - x[n-1] (First-difference) (d) y[n] = round {x[n]} (Quantizer) PLEASE SHOW WORK
P2.19 A linear and time-invariant system is described by the difference equation y(n) 0.5y(n 10.25y(n 2)-x(n)...
P2.19 A linear and time-invariant system is described by the difference equation y(n) 0.5y(n 10.25y(n 2)-x(n) + 2r(n - 1) + r(n -3) 1. Using the filter function, compute and plot the impulse response of the system over 0n100. 2. Determine the stability of the system from this impulse response. 3. If the input to this system is r(n) 5 3 cos(0.2Tm) 4sin(0.6Tn)] u(n), determine the 200 using the filter function response y(n) over 0 n
1) Determine if the discrete-time system,y[k] =x[k] +r·y[k−1]is linear / time-invariant / causal / memoryless. Show...
1) Determine if the discrete-time system,y[k] =x[k] +r·y[k−1]is linear / time-invariant / causal / memoryless. Show your work and explain each property. Start by assuming,x1[k]→y1[k], x2[k]→y2[k]. 2) Determine if the discrete-time system,y[k] =x[k] +rk·y[k−1]is linear / time-invariant / causal / memoryless. Show your work and explain each property. 3) For the system in part 1), if x[k] = 100·u[k−1] and y[k] = 0 for k<0, what is the range of values for r that makes this system BIBO stable? Show...
uestion A causal, linear time-invariant system is excited with an input x (n) described as x(n)...
uestion A causal, linear time-invariant system is excited with an input x (n) described as x(n) 3u(n) with the output y(n) of the system as follows: 7l n) -2"u(n) y(n)- a) Determine z-transform X(z) and Y (z) (4 marks) b) Determine the transfer function H(z). (3 marks) Based on (b), determine the impulse response h(n). Based on (b), sketch the z-plane for the transfer function of the system Based on (d), determine the stability of the system and discuss the...
Question 2 (a) Determine whether the discrete time system which has an output y[n] 2*x[n] over...
Question 2 (a) Determine whether the discrete time system which has an output y[n] 2*x[n] over the nterval 010 is linear or not by determining the response yi[n] to the input signalxj[n]- sin( (2*pi / 10 ) * n ) and the response y2[n] to the input signal x2[n] = cos( (2*pi/10 ) * n ). Determine the response y3[n] to the input signal x1n] = xi [n] + x2[n] and compare it with y4[n] = [n] + y2[n] ....
For the system described by y[n] = n2 x[n – 1],
For the system described by y[n] = n2 x[n – 1], determine whether it is a) Linear or not b) Time-invariant or not c) BIBO stable or not d) Causal or not and e) Memoryless or not
Q1. True / False Memoryless Causal Stable Time-invariant Linear y(t) = x(2t) – 1 rt-1 J-00...
Q1. True / False Memoryless Causal Stable Time-invariant Linear y(t) = x(2t) – 1 rt-1 J-00 y(t) = Sx() dt y[n] = 2 x[m] m =0
Determine whether the summation operation defined by y[n] = Ek--- x[k], is Memoryless (11) Invertible (111)...
Determine whether the summation operation defined by y[n] = Ek--- x[k], is Memoryless (11) Invertible (111) Causal (iv) Stable Time invariant (vi) Linear
Determine which of these properties (Memoryless, Time invariant, Linear, Causal, and Stable) hold and which do...
Determine which of these properties (Memoryless, Time invariant, Linear, Causal, and Stable) hold and which do not hold for each of the continuous-time system, y[n] = x [4n + 1]. Justify your answers. y(t) denotes the system output and x(t) is the system input
The system y[n]= x[n] +8x[n + 1]+x[n +2] is O With memory. Causal, Time-varying and Linear With memory, None Causal, Time-varying and Linear With memory, None Causal, Time-invariant and Linear Memmoryless, None Causal, Time-invariant and Linear With memory, None Causal, Time-invariant and None Linear
The system y[n]= x[n] +8x[n + 1]+x[n +2] is O With memory. Causal, Time-varying and Linear With memory, None Causal, Time-varying and Linear With memory, None Causal, Time-invariant and Linear Memmoryless, None Causal, Time-invariant and Linear...
P2.19 A linear and time-invariant system is described by the difference equation y(n) 0.5y(n 10.25y(n 2)-x(n) + 2r(n - 1) + r(n -3) 1. Using the filter function, compute and plot the impulse response of the system over 0n100. 2. Determine the stability of the system from this impulse response. 3. If the input to this system is r(n) 5 3 cos(0.2Tm) 4sin(0.6Tn)] u(n), determine the 200 using the filter function response y(n) over 0 n
uestion A causal, linear time-invariant system is excited with an input x (n) described as x(n) 3u(n) with the output y(n) of the system as follows: 7l n) -2"u(n) y(n)- a) Determine z-transform X(z) and Y (z) (4 marks) b) Determine the transfer function H(z). (3 marks) Based on (b), determine the impulse response h(n). Based on (b), sketch the z-plane for the transfer function of the system Based on (d), determine the stability of the system and discuss the...
Question 2 (a) Determine whether the discrete time system which has an output y[n] 2*x[n] over the nterval 010 is linear or not by determining the response yi[n] to the input signalxj[n]- sin( (2*pi / 10 ) * n ) and the response y2[n] to the input signal x2[n] = cos( (2*pi/10 ) * n ). Determine the response y3[n] to the input signal x1n] = xi [n] + x2[n] and compare it with y4[n] = [n] + y2[n] ....
Q1. True / False Memoryless Causal Stable Time-invariant Linear y(t) = x(2t) – 1 rt-1 J-00 y(t) = Sx() dt y[n] = 2 x[m] m =0
Determine whether the summation operation defined by y[n] = Ek--- x[k], is Memoryless (11) Invertible (111) Causal (iv) Stable Time invariant (vi) Linear
