Question

What are the different modulation ranges of the space vector modulation (SVM)? How does the inverter´s fundamental output voltage over the modulation ranges of SVM relate to the ranges of sine-triangle modulation added with third harmonic.

Answer 1

Space vector modulation uses the space-vector concept to compute the duty cycle of the switches. It is simply the digital implementation of PWM modulators. An aptitude for easy digital implementation and wide linear modulation range for output line-to-line voltages are the notable features of space vector modulation. The comprehensive relation of the two PWM methods provides a platform not only to transform from one to another, but also to develop different performance PWM modulators. Therefore, many attempts have been made to unite the two types of PWM methods. In SVPWM methods, the voltage reference is provided using a revolving reference vector. In this case magnitude and frequency of the fundamental component in the line side are controlled by the magnitude and frequency, respectively, of the reference voltage vector. Space vector modulation utilizes dc bus voltage more efficiently and generates less harmonic distortion in a three-phase voltage source inverter.

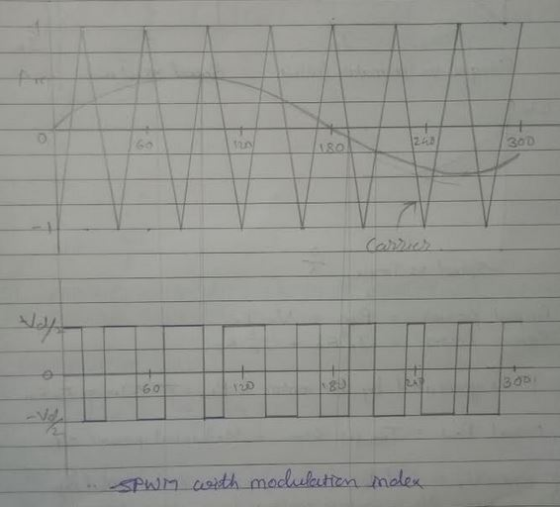

The dc input to the inverter is “chopped” by switching devices in the inverter (bipolar transistors, Thyristors, MOSFET, IGBT …etc). The amplitude and harmonic contents of the ac waveform are controlled by controlling the duty cycle of the switches. This is the basic of the pulse width modulation PWM techniques.

SPACE VECTOR PULSE WIDTH MODULATION:

Space vector PWM refers to a special switching scheme of the six power semiconductor switches of a three-phase power converter. Space vector PWM (SVPWM) has become a popular PWM technique for three-phase voltage-source inverters in applications such as control of induction and permanent magnet synchronous motors. The mentioned drawbacks of the sinusoidal PWM are reduced using this technique. Instead of using a separate modulator for each of the three phases, the complex reference voltage vectors processed. Therefore, the interaction between the three motor phases is considered. It has been shown, that SVPWM generates less harmonic distortion in both output voltage and current applied to the phases of an ac motor and provides a more efficient use of the supply voltage in comparison with sinusoidal modulation techniques. SVPWM provides a constant switching frequency and therefore the switching frequency can be adjusted easily. Although SVPWM is more complicated than sinusoidal PWM and hysteresis band current control, it may be implemented easily with modern DSP based control Systems.

3.1 Principle of space vector pulse width modulation:

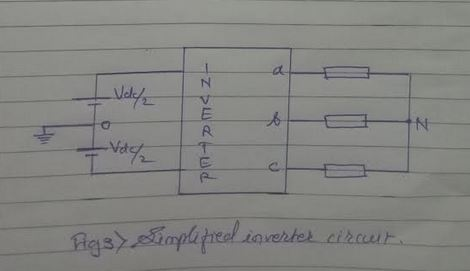

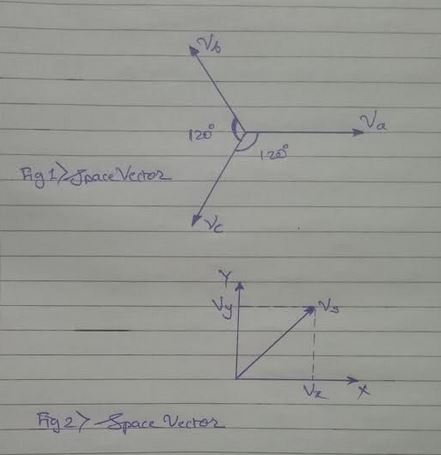

Eight possible combinations of on and off patterns may be achieved. The on and off states of the lower switches are the inverted states of the upper ones. The phase voltages corresponding to the eight combinations of switching patterns can be calculated and then converted into the stator two phase reference frames. This transformation results in six non-zero voltage vectors and two zero vectors. The non-zero vectors form the axes of a hexagon containing six sectors (V1 − V6). The angle between any adjacent two non-zero vectors is 60 electrical degrees. The zero vectors are at the origin and apply a zero voltage vector to the motor. The envelope of the hexagon formed by the non-zero vectors is the locus of the maximum output voltage. SVPWM consists of controlling the stator currents represented by a vector. This control is based on projections which transform a three phase time and speed dependent system into a two co-ordinate (d and q co-ordinates) time invariant system. These projections lead to a structure similar to that of a DC machine control. Field orientated controlled machines need two constants as input references: the torque component (aligned with the q co-ordinate) and the flux component (aligned with d co-ordinate).
