Air enters the compressor of a cold air-standard Brayton cycle with regeneration at 100 kPa, 300...

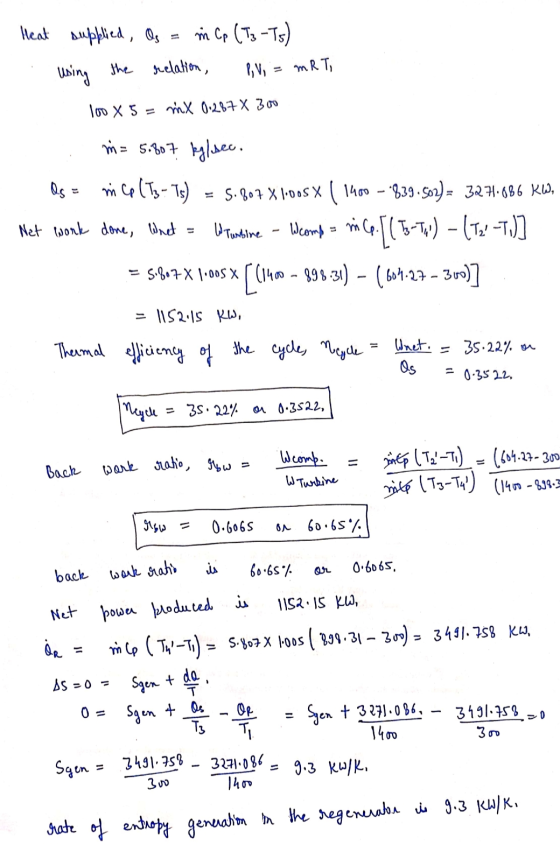

Air enters the compressor of a cold air-standard Brayton cycle with regeneration at 100 kPa, 300 K, with a volume flow rate of 5 m3/s. The compressor pressure ratio is 8, and the turbine inlet temperature is 1400 K. The turbine and compressor each have isentropic efficiencies of 80% and the regenerator effectiveness is 80%. For the air, k = 1.4 and the ambient temperature is T0 = 300 K. -Determine the thermal efficiency of the cycle. -determine the back work ratio -the net power produced in kW -the rate of entropy generation in the regenerator, in kW/k
Homework Answers
Please give a Thumbs Up...!!!Add Answer to:
